CE Smith

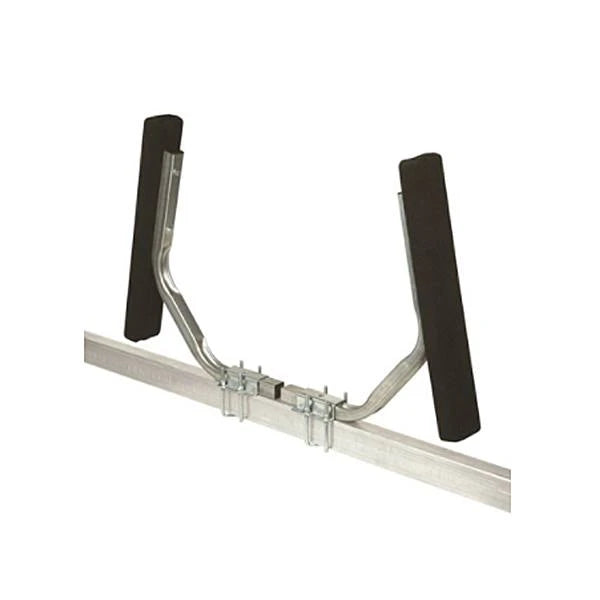

CE Smith 27671 Pontoon Bunk Board Guide-Ons

Perfect for bunk style pontoon trailers, with either a box, channel, or I-beams up to 3" wide by 4-1/4" tall. Never worry about damaging your boat while getting it on the trailer again. Your pontoon will slide across the carpeted bunk boards and onto the trailer with ease. Height is set during install but is adjustable between 24" and 36" above the trailer frame. Trailer frame cross member should be mounted with 2-3" bunks.

Product Features:

Zinc Plated Hardware

Galvanized Steel Construction

U-Bolt Mounting Brackets

Includes two 24" carpeted bunk boards

Fits frames up to 3" wide and 4-1/4" tall

Frequently Asked Questions

• What are the CE Smith 27671 Pontoon Bunk Board Guide-Ons used for? The CE Smith 27671 Pontoon Bunk Board Guide-Ons are designed for bunk-style pontoon trailers. The carpeted bunk boards help guide the pontoon onto the trailer by allowing it to slide across the boards during loading.
• What trailer frames do the CE Smith 27671 Pontoon Bunk Board Guide-Ons fit? These pontoon trailer guide-ons fit box, channel, or I-beam trailer frames up to 3 inches wide by 4-1/4 inches tall. Verify your trailer frame dimensions before installation to ensure they are within the specified limits.
• How high can the CE Smith 27671 Pontoon Bunk Board Guide-Ons be positioned? The guide-on height is set during installation and is adjustable between 24 and 36 inches above the trailer frame. This adjustable range allows the guide-ons to be positioned for a compatible pontoon trailer application.
• What is included with the CE Smith 27671 Pontoon Bunk Board Guide-Ons? The kit includes two 24-inch carpeted bunk boards, zinc-plated hardware, galvanized steel construction, and U-bolt mounting brackets. The included components are designed for installation on compatible pontoon trailer frames.
• How should the CE Smith 27671 Pontoon Bunk Board Guide-Ons be positioned? The product description specifies that the trailer frame cross member should be mounted with the bunks positioned 2-3 inches from the pontoons. Follow this specified positioning when installing the guide-ons on a compatible trailer.
• Are the CE Smith 27671 Pontoon Bunk Board Guide-Ons adjustable? Yes. The guide-on height is adjustable during installation from 24 to 36 inches above the trailer frame. The final height should be set according to the requirements of the compatible pontoon trailer and the specified installation positioning.

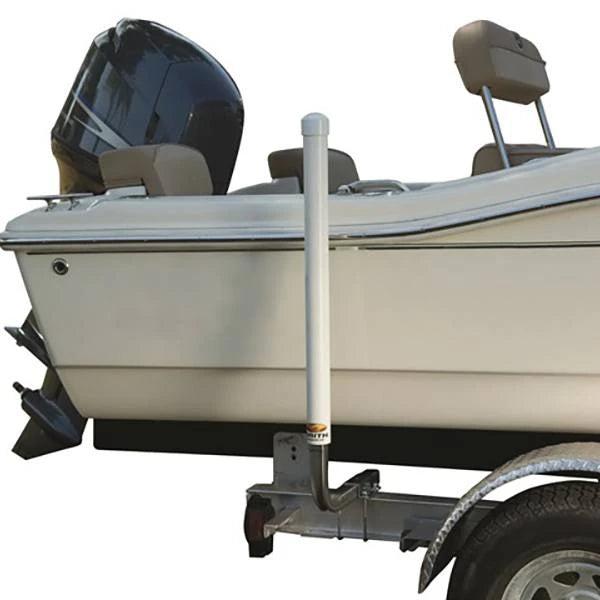

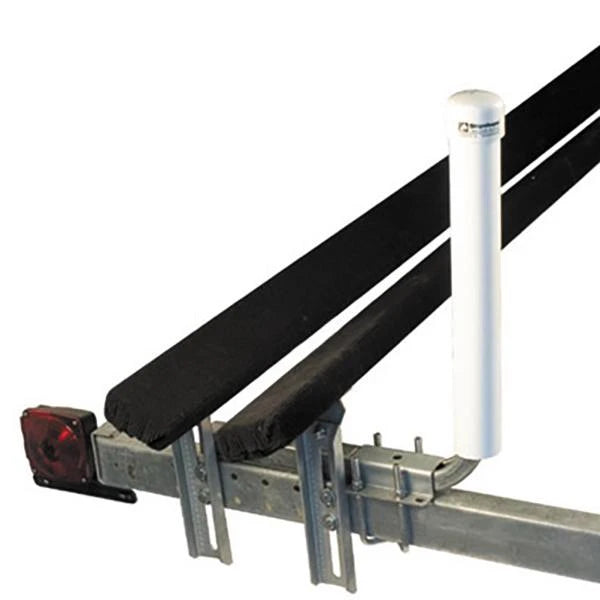

CE Smith Pontoon Boat Trailer Guide-Ons

Pontoon boat trailer guide-ons are a helpful tool to make it easier to load your boat onto your trailer and also help with backing the trailer into the water and getting your trailer in at the right depth. These boat trailer guide ons provide a visual target to guide you in the trailering and untrailering of your boat.

The CE Smith pontoon boat trailer guide-ons come in sets of 2 and are post-style. These guide-ons attached to the rear of your trailer to extend 22” out of the water and be a guide to getting your pontoon boat on the trailer much easier. They are designed for easy installation and to mount on the top of the rear cross member of your trailer allowing you to center the pontoon on the trailer.

Features:

Mounting hardware included

1-1/2" Square 16 gauge pre-galvanized steel* uprights

2-3/8" diameter white PVC posts

22" high

Sold in pairs

Fits up to 3" Width x 4-1/4" Height frames.

*Pre-galvanized steel parts are stamped from a sheet of steel after it has already been galvanized. The galvanized coating is very thin (.45 oz. on each side).

Frequently Asked Questions

• What are the CE Smith Pontoon Boat Trailer Guide-Ons used for? The CE Smith Pontoon Boat Trailer Guide-Ons provide a visual target to help guide and center a pontoon boat when loading it onto a trailer. They also help when backing the trailer into the water by providing a reference for positioning and trailer depth.
• How high are the CE Smith Pontoon Boat Trailer Guide-Ons? The CE Smith Pontoon Boat Trailer Guide-Ons are 22 inches high. They are designed to extend above the water at the rear of the trailer and provide a visible guide for positioning the pontoon during loading.
• What trailer frames do the CE Smith Pontoon Boat Guide-Ons fit? These pontoon boat trailer guide-ons fit trailer frames up to 3 inches wide by 4-1/4 inches high. Mounting hardware is included, and the guide-ons are designed to mount on the top of the rear cross member of the trailer.
• What are the CE Smith Pontoon Boat Trailer Guide-Ons made from? The guide-ons use 1-1/2-inch-square, 16-gauge pre-galvanized steel uprights with 2-3/8-inch-diameter white PVC posts. The pre-galvanized steel is stamped from sheet steel after galvanizing, with a thin galvanized coating applied to each side.
• How are the CE Smith Pontoon Boat Trailer Guide-Ons supplied? The CE Smith Pontoon Boat Trailer Guide-Ons are sold in pairs, providing two post-style guides for the rear of the trailer. Mounting hardware is included with the pair for installation on compatible trailer frames.
• Where are the CE Smith Pontoon Boat Trailer Guide-Ons mounted? These post-style guide-ons are designed to attach to the rear of the trailer and mount on top of the rear cross member. Their positioning helps provide a visual guide for centering the pontoon boat on the trailer during loading.

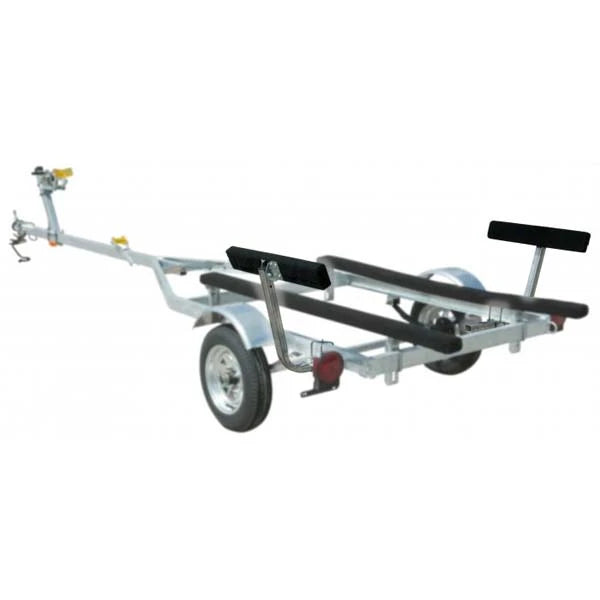

CE Smith Short Bunk-Style Carpeted Boat Trailer Guide-Ons

CE Smith Short Bunk-Style Trailer Guide-Ons make loading and unloading your boat easy. These carpeted trailer guide-ons provide proper center loading even in windy or side current conditions. Bunk boards are constructed of durable untreated Southern yellow pine and are covered in high-grade marine carpet.

Features:

Durable carpeted bunk boards

Boards tilt to hug the hull

Can be mounted on top of frame for extra height

Comes complete with mounting hardware to fit frames up to 3" wide x 4-1/4" high

Specifications:

2" x 4" x 24" Boards tilt to hug the hull

1-1/2" Square pre-galvanized uprights, angled out at 75°

Height of 21'' with adjustment out to 13" from frame on each side

Note: For larger trailer frames, check out the CE Smith Large Frame U-Bolt Kit

How to Install CE Smith Short Bunk Style Boat Guide-Ons

Place U-bolts as shown for either 2" wide or 3" wide frame.

Use (1) flat u-bolt and (1) formed u-bolt with washers and nuts to loosely attach each u-shaped bracket under or on top of trailer frame.

Insert the short end of guide-on upright posts into each of the u-brackets to the desired width. Note: Do not fully tighten bolts

Make sure the upright posts are seated level in the u-brackets before completely tightening the u-bolts. Finish tightening the u-bolt connections.

Attach left and right bunk assemblies to upright posts with 3/8"-16 x 2-1/4" hex head bolts, washers and nuts. Adjust angle of bunks as desired and tighten connections to hold in place.

Insert a black plastic cap on top of each upright post.

Click to Download CE Smith Short Bunk Style Boat Guide Installation Instructions

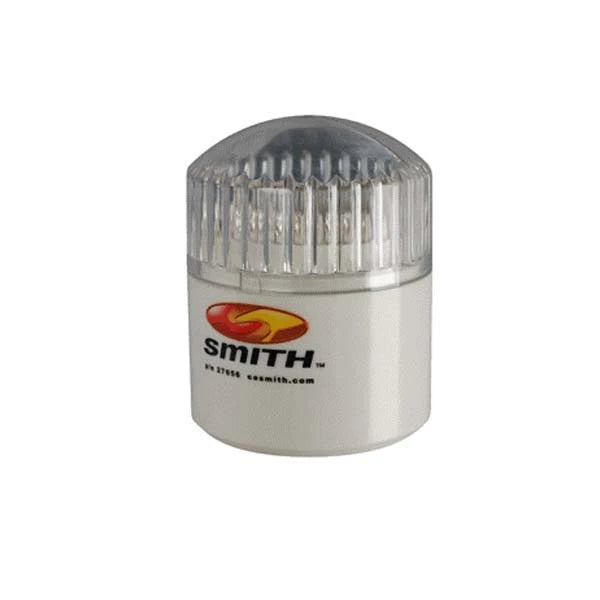

CE Smith 27656 Trailer Guide-On LED Light Kit

CE Smith's tough, long lasting, waterproof, shockproof LED post guide lamps make it easy to see your trailer's position when backing down the ramp and dramatically increase your trailers visibility over the road at night. These lights are easily installed; they screw onto the top of your guideposts and wire into your trailer's tail lights. LEDs are long-lasting, energy efficient and more durable than incandescent lights.

One piece lamps fit easily on top of your existing 2" PVC post guide-ons

Amber light faces front, red faces rear

Includes two sealed one piece LED lamps, each with 8' of wire and all necessary electrical connectors and post locking bolts.

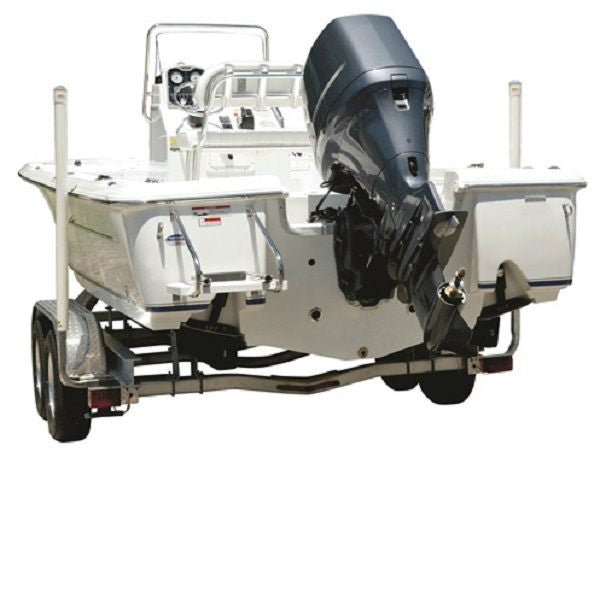

CE Smith 60" Post Guide-Ons with I-Beam Mounting Kit

These 60" beams help you keep track of your trailer when underwater when loading your boat. Specifically designed for I-beam trailers and boat lifts. An innovative two-piece mounting clamps work above or below the I-beam. Works with almost any I-beam width and the brackets fit onto any height.

Product Features:

Installation Instructions Included

Adjusts out to 19" on each side

1-1/2 square, 16 gauge pre-galvanized steel uprights

2-3/8" Diameter white PVC posts

Mounting Hardware included

Pre-Galvanized Steel

Sold in Pairs

Pre-galvanized steel parts are stamped from a sheet of steel after it has already been galvanized. The galvanized coating is very thin (0.45 oz. on each side).

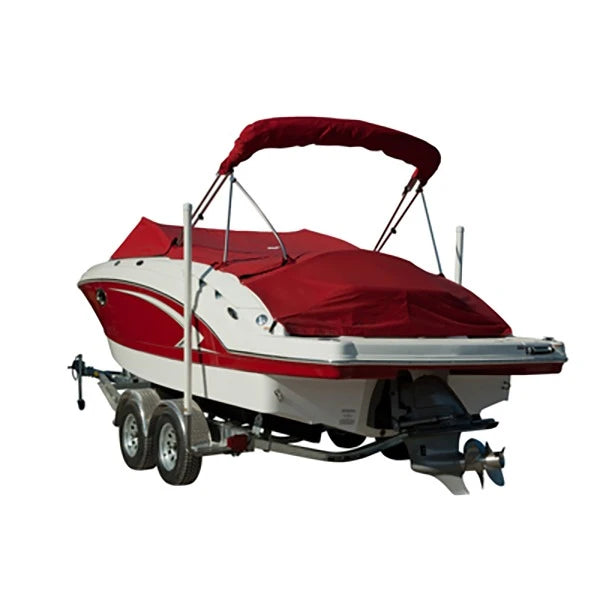

CE Smith 75" I Beam Mount Post Trailer Guide-Ons 27635

These 75" extra tall I Beam mount Post Guide-Ons allow you to see the location of your trailer when it's under water. Designed for I-beam trailers and I-beam boat lifts, these guide-ons feature an innovative two-piece mounting clamp that works above or below the I-beam.  Brackets will fit onto any height and virtually any width I-beam trailer frame. 75" Extra Tall Guides are great for larger boats with high freeboard or longer boats that where trailer is deeper in the water.

Mounting hardware included

Sold in pairs

Adjusts out to 19" each side

1-1/2" square. 16 gauge pre-galvanized steel uprights

2-3/8" diameter white PVC posts.

Fits up to 4" wide I-Beam

75" Height for better visibility

Pre-galvanized steel parts are stamped from a sheet of steel after it has already been galvanized. The galvanized coating is very thin (0.45 oz. on each side)

** Picture not of the IBEAM Mount but does display post style guide on.

Frequently Asked Questions

• What are the CE Smith 75" I Beam Mount Post Trailer Guide-Ons 27635 designed for? The CE Smith 75" I Beam Mount Post Trailer Guide-Ons 27635 are designed for I-beam trailers and I-beam boat lifts. Their extra-tall 75" height provides better visibility of the trailer when it is under water, making them suitable for larger boats with high freeboard or trailers positioned deeper in the water.
• What size I-beam trailer frame do the CE Smith 27635 guide-ons fit? The CE Smith 27635 guide-ons fit I-beams up to 4" wide. Their two-piece mounting clamps can be positioned above or below the I-beam and adjust to accommodate virtually any I-beam trailer frame width.
• How far can the CE Smith 75" I Beam Mount Post Guide-Ons adjust? Each guide-on adjusts outward up to 19". This allows the guide posts to be positioned for the trailer and boat configuration while using the included mounting hardware.
• What are the posts and uprights made from on the CE Smith 27635 guide-ons? The CE Smith 27635 guide-ons feature 1-1/2" square, 16-gauge pre-galvanized steel uprights and 2-3/8" diameter white PVC posts. The pre-galvanized steel has a thin galvanized coating applied before the steel is stamped into parts.
• Does the CE Smith 27635 guide-on kit include mounting hardware? Yes. Mounting hardware is included with the CE Smith 75" I Beam Mount Post Trailer Guide-Ons 27635. The guide-ons are sold in pairs for installation on an I-beam trailer or I-beam boat lift.
• Why are the CE Smith 27635 guide-ons 75" tall? The 75" height provides better visibility when the trailer is under water. These extra-tall guide-ons are particularly suited to larger boats with high freeboard or longer boats where the trailer sits deeper in the water.

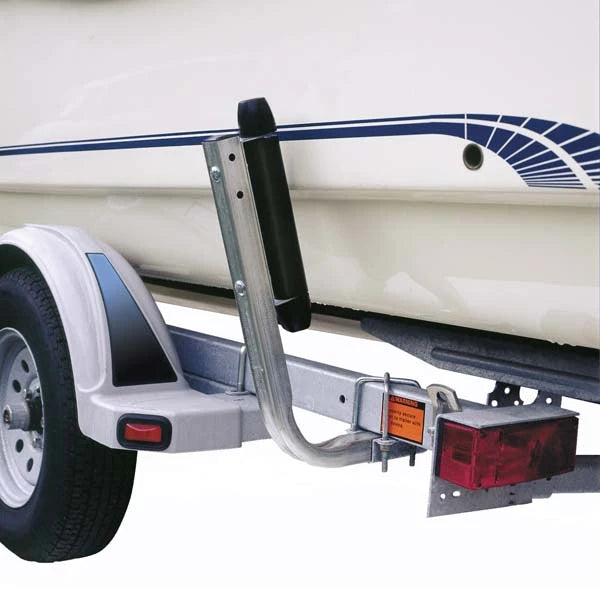

CE Smith Roller Style Boat Trailer Guide-Ons

Makes boat loading easier with the CE Smith Roller-Style Trailer Guide-Ons. These smooth rolling guides assist in centering the boat onto the trailer. This style of guide-on is ideal for retrieving your boat on shallow ramps where the trailer is not far into the water or when you are trying to retrieve your boat alone. The uprights with rollers come fully assembled and ready for installation.

Features:

1-1/2" Pre-galvanized steel uprights lean outward 15° to cradle the boat

Guide-ons are 21" tall above the frame with 9" roller & 2" roller caps at top & bottom

Mounting hardware included for frames up to 3" W x 4-1/4"H

Mounting brackets allow up to 13" of adjustment out from each side of the frame

Comes with both sides of the trailer

For larger trailer frames, you will need the Large Frame U-Bolt Kit (part number 11416). Click Here.

Roller Style Guide-On Installation Instructions

Place u-bolts as shown below for either 2" wide or 3" wide frame

Use 1 flat u-bolt and 1 formed u-bolt with washers and nuts to loosely attach each u-shaped bracket under or on top of trailer frame at desired locations.

Insert a guide-on upright post into each of the u-brackets to the desired width. Do not fully tighten bolts.

Make sure the upright posts are seated level in the u-brackets before completely tightening the u-bolts. Finish tightening the u-bolt connections.

Insert a black plastic cap on top of each upright post.

Frequently Asked Questions

• What are the CE Smith Roller Style Boat Trailer Guide-Ons used for? The CE Smith Roller Style Boat Trailer Guide-Ons help center a boat onto the trailer during loading. Their smooth-rolling guides are especially suited for retrieving boats on shallow ramps or when loading the boat alone.
• What trailer frames do the CE Smith Roller Style Boat Trailer Guide-Ons fit? The included mounting hardware fits trailer frames up to 3 inches wide by 4-1/4 inches high. For larger trailer frames, the Large Frame U-Bolt Kit, part number 11416, is required.
• How tall are the CE Smith Roller Style Trailer Guide-Ons? The guide-ons are 21 inches tall above the trailer frame. Each upright features a 9-inch roller with 2-inch roller caps at the top and bottom, and the pre-galvanized steel uprights lean outward 15 degrees to cradle the boat.
• How much adjustment do the CE Smith Roller Style Guide-Ons provide? The mounting brackets allow up to 13 inches of adjustment outward from each side of the trailer frame. This allows the guide-ons to be positioned at the desired width for the trailer and boat application.
• What is included with the CE Smith Roller Style Boat Trailer Guide-Ons? The guide-ons come as a pair for both sides of the trailer, with the uprights and rollers fully assembled and ready for installation. Mounting hardware is included for compatible trailer frames up to 3 inches wide by 4-1/4 inches high.
• How do you install the CE Smith Roller Style Boat Trailer Guide-Ons? Position the U-bolts for the trailer frame width, loosely attach each U-shaped bracket, and insert the guide-on uprights to the desired width. Make sure the posts are level in the brackets before fully tightening the U-bolts. Finish by installing a black plastic cap on each upright post.

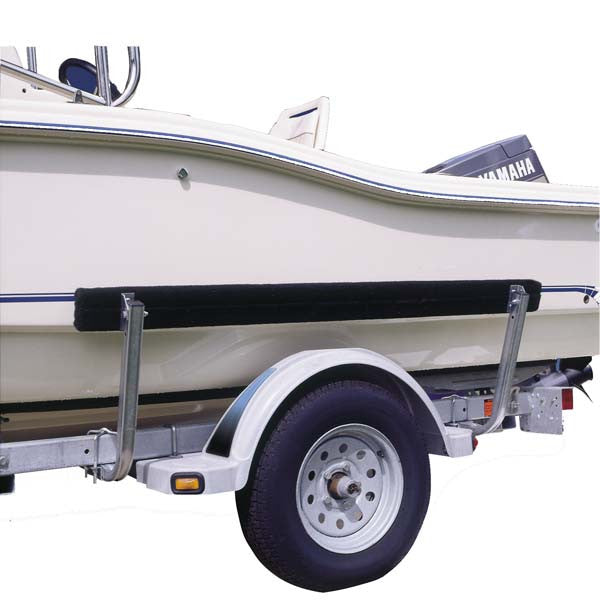

CE Smith 5' Bunk Board Style Boat Guide-Ons

CE Smith carpeted bunk boards provide proper center loading of your boat even under high wind conditions. These bunk board guide-ons can be adjusted to accommodate your boat and trailer. The pre-galvanized steel support poles mount horizontally on either side of your trailer's frame rail. Their pre-galvanized steel parts have been stamped from a thin sheet of steel and are rust and corrosion-resistant. Their installation is quick and easy: simply slide the posts into the boat guide supports, then secure the posts to the correct distance recommended for your craft. The bunk boards are then tilted to conform to the shape of your boat's hull. When installation is complete, the guides will help to center your boat during loading more easily and will hold the boat more securely while trailering.

CE Smith Bunk Board Guide-Ons Features:

Easy installation

Durable no-sway mounting

Long-lasting, corrosion-resistant, galvanized metal construction.

1-1/2"-square pre-galvanized uprights, install at a 75-degree angle.

2" x 4" x 60" boards tilt to hug the hull and are covered with high grade marine carpet.

Bunk boards measure 21"-high with adjustment out to 13" from frame on each side

Can be mounted on top of frame for additional stabilizing height.

Kit includes mounting hardware to fit frames up to 3"-Wide x 4-1/4"-High

Made in the U.S.A.

How to Install CE Smith Bunk Board Style Guide-Ons

Installation Note: Bunk board guide-ons are most helpful when fitted close to the boat and mounted as far to the rear of the trailer as possible.

Avoiding possible interference issues, select the best four upright mounting locations for installation.

At each selected mounting location, loosely assemble a bracket using one straight U-bolt and one formed U-bolt.

Slide all four uprights into brackets; make sure the end with holes is up.

Continue tightening U-bolts until the uprights are loosely seated and level on the frame.

Note: Uprights should be standing about 4" from the boat

Hold a bunk board between the upright and the boat. Select and mark the position where the swivel brackets will be screwed to the bunkhead.

Hold one piece in place, lay the bunk board on the floor and screw the bracket to the bunk board.

Return bunk boards to the uprights. Position and hold the second swivel bracket, then lay the board on the floor install using included screws.

Return the bunk board to the uprights and bolt the swivel brackets to the uprights.

Make fit adjustments and make sure the alignment is straight.

Fully tighten all hardware, finish by pounding end plugs into the top of the uprights.

Repeat for the other side of the bunk board guide-ons.

Click to Download CE Smith Bunk Board Style Guide-Ons Installation Instructions

Frequently Asked Questions

• What are the CE Smith 5' Bunk Board Style Boat Guide-Ons used for? The CE Smith 5' Bunk Board Style Boat Guide-Ons help center a boat during trailer loading and provide additional support while trailering. The carpeted bunk boards can be adjusted to accommodate the boat and trailer, while the tilted boards conform to the shape of the boat's hull.
• What are the dimensions of the CE Smith 5' Bunk Board Guide-Ons? The guide-ons include two 2-inch x 4-inch x 60-inch bunk boards covered with high-grade marine carpet. The bunk boards are 21 inches high and can be adjusted outward up to 13 inches from the trailer frame on each side.
• What trailer frames do the CE Smith Bunk Board Style Guide-Ons fit? The included mounting hardware fits trailer frames up to 3 inches wide by 4-1/4 inches high. The guide-ons use 1-1/2-inch-square pre-galvanized steel uprights that install at a 75-degree angle.
• How are the CE Smith 5' Bunk Board Style Boat Guide-Ons installed? Installation involves mounting the upright brackets to the trailer frame, sliding the uprights into the brackets, and attaching the swivel brackets to the carpeted bunk boards. The bunk…

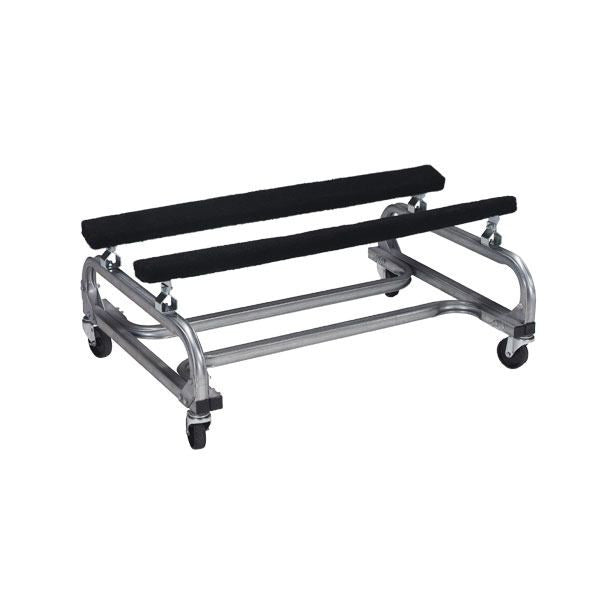

CE Smith Personal Watercraft (PWC) Dolly Constructed with a galvanized, tubular frame Four rugged casters for easy maneuvering of your watercraft Two 4' carpeted bunks that tilt and adjust to 12", 16", or 20" widths Supports up to 1,000 lbs. Comes with hardware and assembly instructions. 34" W x 48" L x 19" H. Weighs 51 lbs.

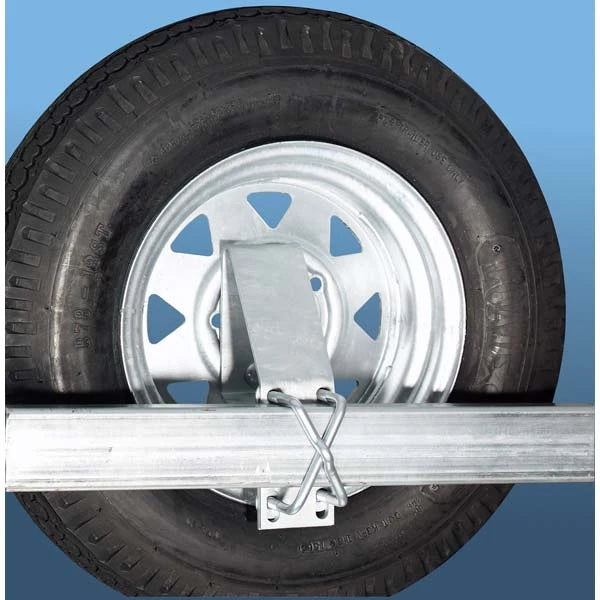

CE Smith 27310 Boat Trailer Spare Tire Carrier

The CE Smith Trailer Spare tire Carrier is perfect for mounting your spare tire vertically to the side of trailer tongue or frame rails. This sturdy spare tire carrier mounts to the trailer tongue in the front of the trailer. The offset design moves the tire and wheel up and away from the trailer frame to improve ground clearance. No drilling is required to install the carrier because the included U-bolts clamp the carrier to the trailer frame. The crisscross design increases the holding power of the U-bolts. Mounting I-bolts may be crossed to fit shorter frames or may be installed parallel for more reach.

3/16" Thick galvanized steel

Holds 4 or 5 lug wheels

Adjusts for frames up to 3" wide by 4" high

Tire mounting hole centers 4-9/64"

Side offset is 4-1/2" from frame with 5" rise for ground clearance

All mounting hardware is included

Frequently Asked Questions

• What is the CE Smith 27310 Boat Trailer Spare Tire Carrier designed for? The CE Smith 27310 Boat Trailer Spare Tire Carrier is designed to mount a spare tire vertically to the side of a trailer tongue or frame rails. Its offset design positions the tire and wheel up and away from the trailer frame, providing improved ground clearance for the spare tire.
• What trailer frames does the CE Smith 27310 Spare Tire Carrier fit? The carrier adjusts to trailer frames up to 3 inches wide by 4 inches high. Its mounting I-bolts can be crossed for shorter frames or installed parallel when additional reach is needed, allowing the carrier to accommodate different frame configurations within the stated size range.
• What wheel lug patterns are compatible with this spare tire carrier? The CE Smith 27310 Spare Tire Carrier is designed to hold wheels with either 4-lug or 5-lug configurations. The tire mounting hole centers measure 4-9/64 inches, so verify your spare wheel's mounting pattern and dimensions before installation.
• Does the CE Smith 27310 Spare Tire Carrier require drilling for installation? No drilling is required to install this spare tire carrier. The included U-bolts clamp the carrier to the trailer frame. Its crisscross design increases the holding power of the U-bolts, while the mounting I-bolts can be positioned crossed or parallel depending on the frame configuration.
• How much offset and rise does the CE Smith 27310 provide for ground clearance? The carrier has a 4-1/2-inch side offset from the trailer frame and a 5-inch rise. This offset design moves the mounted tire and wheel upward and away from the frame to improve ground clearance around the spare tire.
• What is included with the CE Smith 27310 Boat Trailer Spare Tire Carrier? The CE Smith 27310 Spare Tire Carrier includes all mounting hardware needed for installation. The carrier is constructed from 3/16-inch thick galvanized steel and uses included U-bolts to clamp to the trailer frame without requiring drilling.

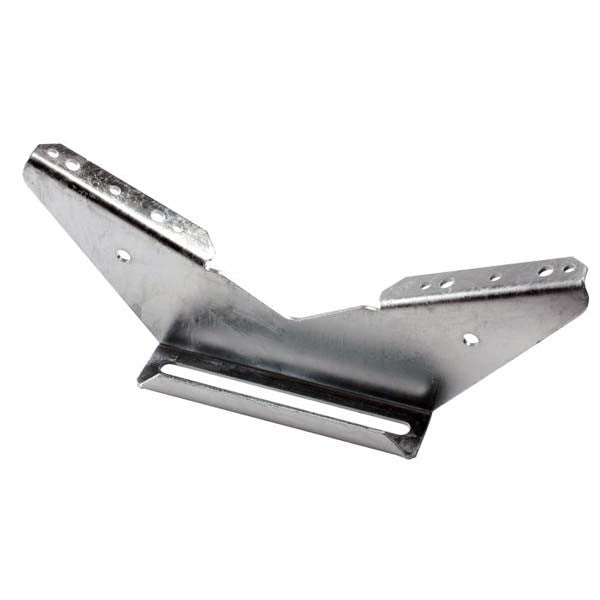

CE Smith 26244G Pontoon Wing Bracket

CE Smith pontoon bolster brackets support bunk boards in a shallow V cradle configuration that best suits pontoon hulls. This V-wing bracket is designed with a 7" lateral adjustment slot for perfect pontoon to trailer alignment. Best when installed with 2x6, 2x8, or 2x10 carpeted bunk boards laid flat.

Features:

1/8" thick steel

Hot dipped galvanized for durability

A bracket should be installed at each frame cross member for maximum support and load capacity.

Frequently Asked Questions

• What is the CE Smith 26244G Pontoon Wing Bracket used for? The CE Smith 26244G Pontoon Wing Bracket supports bunk boards in a shallow V cradle configuration designed for pontoon hulls. Its V-wing design helps position carpeted bunk boards for pontoon-to-trailer alignment and is intended for use with 2x6, 2x8, or 2x10 bunk boards installed flat.
• What size bunk boards can be used with the CE Smith 26244G Pontoon Wing Bracket? The CE Smith 26244G Pontoon Wing Bracket is designed for use with 2x6, 2x8, or 2x10 carpeted bunk boards laid flat. Verify your bunk board dimensions and installation requirements before selecting this bracket for your pontoon trailer.
• Does the CE Smith 26244G Pontoon Wing Bracket allow lateral adjustment? Yes. The CE Smith 26244G Pontoon Wing Bracket features a 7-inch lateral adjustment slot. This adjustment range is designed to help align the pontoon with the trailer when positioning the bunk boards.
• What is the CE Smith 26244G Pontoon Wing Bracket made from? The CE Smith 26244G Pontoon Wing Bracket is made from 1/8-inch-thick steel. It has a hot-dipped galvanized finish designed to provide durability for the bracket.
• How should CE Smith 26244G Pontoon Wing Brackets be positioned for support? The product description recommends installing a bracket at each trailer frame cross member for maximum support and load capacity. The brackets support the bunk boards in a shallow V cradle configuration suited to pontoon hulls.
• What should I verify before using the CE Smith 26244G Pontoon Wing Bracket? Verify that your application uses carpeted 2x6, 2x8, or 2x10 bunk boards laid flat and that the bracket's 7-inch lateral adjustment meets your alignment requirements. Also consider the recommended installation at each frame cross member for support and load capacity.

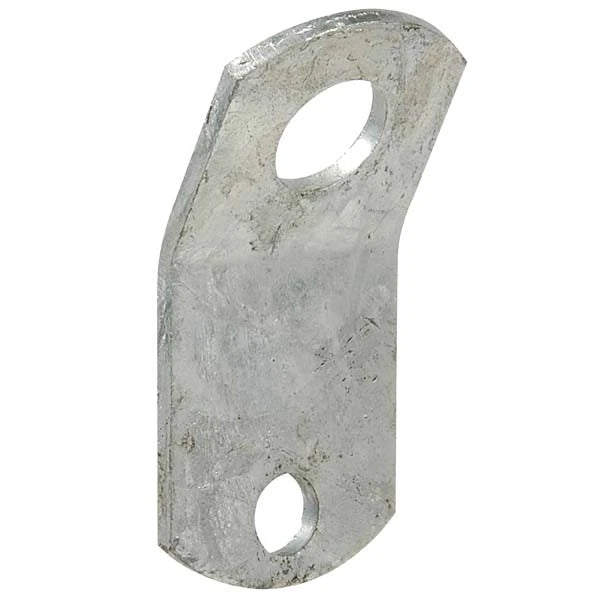

CE Smith 26214GA Trailer Tie Down Bracket

Make your trailered load more secure and faster to load by adding tie down points exactly where you need them. Great for securing boat transoms, ATVs or any other load. Made from finger-safe, round-edge hot-dip galvanized steel. Overall Size: 2" x 4", Mounting hole 9/16", strap hook hole 7/8", bent 30°.

Adds tie down points to your trailer

Round edge, hot dipped galvanized steel bracket

2" x 4" with 9/16" Mounting hole & a 7/8" strap hook hole

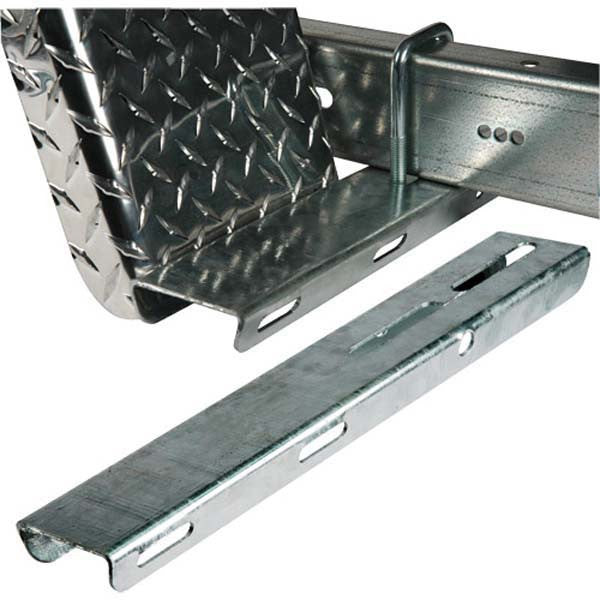

CE Smith 26212G Galvanized Trailer Fender Step Pad

The CE Smith Trailer Fender Step Pad is ideal for the do-it-yourselfer. The step pad can be welded or bolted to your trailer fender. This step pad can also be bolted to your trailer frame with u-bolts.

15-1/4" L x 3" W

Galvanized, 12 gauge steel

Left hand/right hand

Sold individually

U-bolts not included

Frequently Asked Questions

• What is the CE Smith 26212G Galvanized Trailer Fender Step Pad used for? The CE Smith 26212G Galvanized Trailer Fender Step Pad provides a step surface for a trailer and is designed for do-it-yourself installation. It can be welded or bolted to a trailer fender or bolted to the trailer frame using U-bolts.
• What are the dimensions of the CE Smith 26212G Trailer Fender Step Pad? The CE Smith 26212G Trailer Fender Step Pad measures 15-1/4 inches long by 3 inches wide. Verify these dimensions against the available mounting area on your trailer before installation.
• What is the CE Smith 26212G Trailer Fender Step Pad made from? The CE Smith 26212G Trailer Fender Step Pad is constructed from galvanized 12-gauge steel. This step pad is intended for installation on compatible trailer fenders or trailer frames.
• Can the CE Smith 26212G Trailer Fender Step Pad be used on either side of a trailer? Yes. The CE Smith 26212G Trailer Fender Step Pad is designed for both left-hand and right-hand applications, allowing it to be used on either side of a compatible trailer.
• How can the CE Smith 26212G Trailer Fender Step Pad be installed? The step pad can be welded or bolted to a trailer fender. It can also be bolted to the trailer frame with U-bolts. U-bolts are not included, so they must be obtained separately if that installation method is used.
• Is the CE Smith 26212G Trailer Fender Step Pad sold individually? Yes. The CE Smith 26212G Galvanized Trailer Fender Step Pad is sold individually. U-bolts are not included with the step pad.

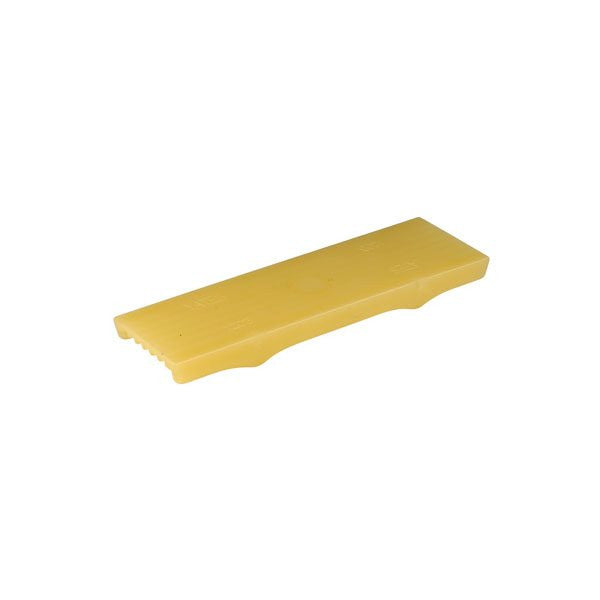

CE Smith Full Cap Frame Cross Member Pad

This full cap frame Cross Member Pad keeps your boat keel safe during loading and transit. Features thermal plastic rubber pads that cushion the trailer cross. Full cap style mounts on any 3" wide cross or axle center that might make contact with the boats keel.

Product Features:

3" W x 12" L

5/16" thick

Yellow Thermal Plastic Rubber

3/4" deep sides for mounting

Mounting:

Mounts using 4 Rivets or screws

Two on each side

*Hardware not included*

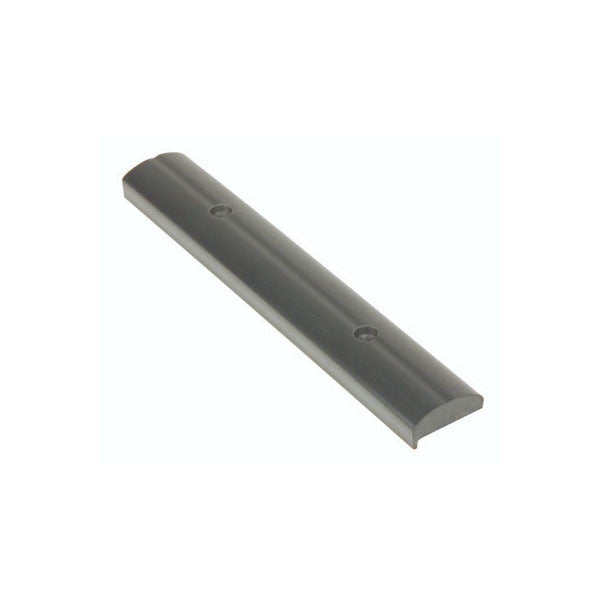

CE Smith 16870 Trailer Cross Member Pad - Edge Cover Style

CE Smith's Cross Member Pads are designed to cushion your trailer cross members to protect your boat keel. The edge cover style mounts on the trailing edge of any width cross member or axle.

Product Features:

10" L x 1-1/2" W

3/8" thickness

4-1/2" hole centers

Black Poly Material

Mounts using two rivets or screws

*Hardware not included*

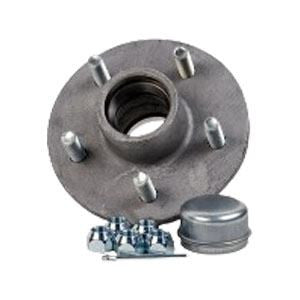

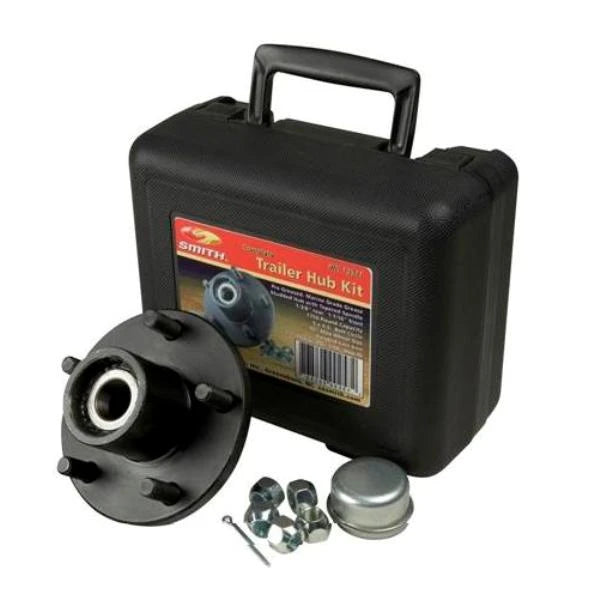

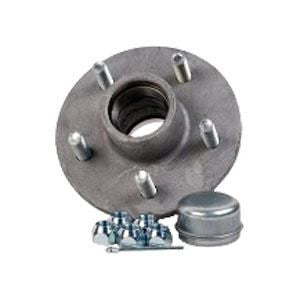

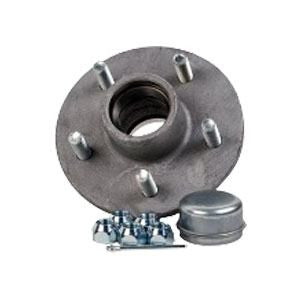

CE Smith 1-3/8" - 1-1/16" Trailer Hub Kit

The CE Smith Trailer Hub Kit is designed with pre-greased bearings. cutting down on the mess by producing a final installation onto the axle. The hub kit is made of a galvanized material making it durable in marine environments. The kit includes a carry case, dust cap, cotter pin, and lug nuts.

Specifications:

Galvanized

5 stud x 4.5" bolt circle diameter

1-3/8" tapered to 1-1/16" shaft

1750 lb capacity

15" maximum wheel size

1.98" hub inner diameter

6-1/2" wheel flange diameter

Features:

Carry case

Dust cap

Cotter pin

Lug nuts

Frequently Asked Questions

• What is the CE Smith 1-3/8" - 1-1/16" Trailer Hub Kit designed for? The CE Smith 1-3/8" - 1-1/16" Trailer Hub Kit is designed for trailer hub replacement and installation. It features pre-greased bearings to reduce mess during final installation onto the axle. The galvanized construction provides durability for marine environments.
• What axle shaft size does the CE Smith Trailer Hub Kit fit? The CE Smith Trailer Hub Kit is specified for a 1-3/8" tapered to 1-1/16" shaft. Verify your trailer axle dimensions before purchasing to confirm the hub kit matches your application.
• What is the capacity of the CE Smith 1-3/8" - 1-1/16" Trailer Hub Kit? The CE Smith Trailer Hub Kit has a 1,750-lb capacity and is specified for a maximum wheel size of 15". The hub also has a 1.98" inner diameter and a 6-1/2" wheel flange diameter.
• What bolt pattern does the CE Smith Trailer Hub Kit use? The CE Smith Trailer Hub Kit uses five studs with a 4.5" bolt circle diameter. Check your trailer's existing wheel bolt pattern before purchasing to confirm it matches the hub kit.
• What is included with the CE Smith Trailer Hub Kit? The kit includes pre-greased bearings along with a carry case, dust cap, cotter pin, and lug nuts. The pre-greased bearing design helps reduce the mess associated with final installation onto the axle.
• Is the CE Smith Trailer Hub Kit suitable for marine environments? Yes. The hub kit is made from galvanized material, which the product description identifies as durable in marine environments. It is also specified with a 1,750-lb capacity, 1-3/8" to 1-1/16" tapered shaft, and five-stud 4.5" bolt circle.

CE Smith 1-1/16" Trailer Hub Kit

The CE Smith Trailer Hub Kit is designed with pre-greased bearings. cutting down on the mess by producing a final installation onto the axle. The hub kit is made of a galvanized material making it durable in marine environments. The kit includes a carry case, dust cap, cotter pin, and lug nuts.

Specifications:

Galvanized

5 stud x 4.5" bolt circle diameter

1-1/16" straight shaft

1350 lb capacity

14" maximum wheel size

1.98" hub inner diameter

5-1/2" wheel flange diameter

Features:

Carry case

Dust cap

Cotter pin

Lug nuts

CE Smith 1" Trailer Hub Kit

The CE Smith Trailer Hub Kit is designed with pre-greased bearings. cutting down on the mess by producing a final installation onto the axle. The hub kit is made of a galvanized material making it durable in marine environments. The kit includes a carry case, dust cap, cotter pin, and lug nuts.

Specifications:

Galvanized

5 stud x 4.5" bolt circle diameter

1" straight shaft

1250 lb capacity

12" maximum wheel size

1.98" hub inner diameter

Features:

carry case

dust cap

cotter pin

lug nuts

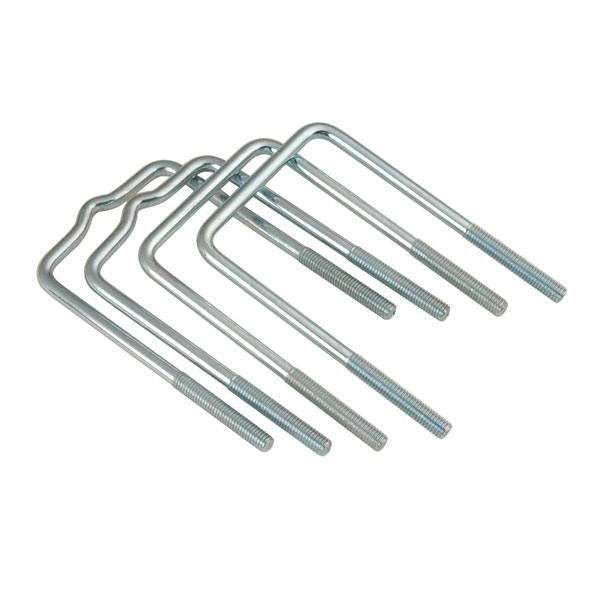

CE Smith Long U-Bolt Kit for Trailer Frames- 4 Pack

Large Frame U-Bolt Kit

U-bolts for mounting to frames up to 3" wide x 5-1/4" high

Leg length is 6" with a thread length of 2"

4 U-Bolts per kit.(nuts and washers not included)

For use with our Roller Guide-Ons, Post Guide-Ons and Bunkboard Guide-Ons

Genuine replacement part for C.E. Smith Part Numbers 27600, 27610, 27620, 27625, 27640, 27645, 27660

5' Bunk board style guide-ons (P/N 27600)require (2) kits, all other guide-ons require (1) kit

Frequently Asked Questions

• What is the CE Smith Long U-Bolt Kit for Trailer Frames used for? The CE Smith Long U-Bolt Kit for Trailer Frames is designed for mounting compatible trailer guide-ons, including Roller Guide-Ons, Post Guide-Ons, and Bunkboard Guide-Ons. Each kit contains four U-bolts for trailer frames up to 3 inches wide by 5-1/4 inches high.
• What trailer frame sizes do the CE Smith Long U-Bolts fit? These long U-bolts are designed for trailer frames up to 3 inches wide by 5-1/4 inches high. Each U-bolt has a 6-inch leg length with a 2-inch thread length. Verify your trailer frame dimensions before installation.
• How many U-bolts are included in the CE Smith kit? Each CE Smith Long U-Bolt Kit contains four U-bolts. Nuts and washers are not included, so verify that the required mounting hardware is available before installation.
• Which CE Smith guide-ons are compatible with this U-bolt kit? The kit is designed for use with CE Smith Roller Guide-Ons, Post Guide-Ons, and Bunkboard Guide-Ons. It is also listed as a genuine replacement part for CE Smith part numbers 27600, 27610, 27620, 27625, 27640, 27645, and 27660.
• How many CE Smith U-Bolt kits are needed for 5-foot Bunkboard Guide-Ons? CE Smith 5-foot Bunkboard Guide-Ons, part number 27600, require two U-Bolt kits. All other compatible guide-ons listed for this kit require one kit.
• Are nuts and washers included with the CE Smith Long U-Bolt Kit? No. The CE Smith Long U-Bolt Kit includes four U-bolts, but nuts and washers are not included. The U-bolts have 6-inch legs with a 2-inch thread length for the specified trailer frame applications.
