Anchors

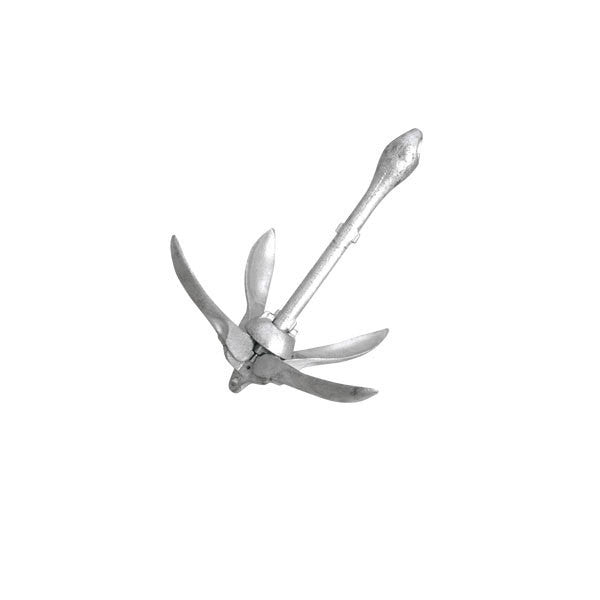

Sea Sense Grappling Anchor

The Grappling Anchor is great for all small boats, including dinghies, inflatables, canoes and personal watercraft (PWC). The ability to quickly fold and unfold in seconds and stow in a very small compartment makes the Grappling Anchor a great choice for small crafts.

Features:

Folds and unfolds in seconds

More holding power per pound

Galvanized iron

Applicable for the following conditions: strong current, tidal flow, weed bottom, mud bottom, and sand bottom.

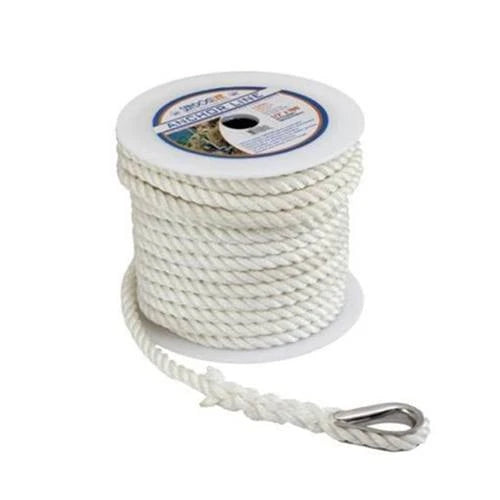

Sea Dog 3-Strand Twisted Nylon Anchor Line

This Sea Dog Twisted Nylon Anchor Line is constructed of 100% premium twisted three-strand nylon. Nylon ropes are long-lasting and have a longer working life than manila and polypropylene ropes. Line is professionally spliced with five tucks and is packaged on an easy to dispense spool. Features excellent flexibility and stretches to absorb shock.

Features:

Medium lay with soft feel

304 Stainless steel thimble

Yacht whipped at the bitter end

Easy to dispense spool

Color: White

Sizes are listed as: Diameter x Length

Work Load Strength:

3/8" : 815 lbs

1/2" : 915 lbs

5/8" : 980 lbs

Breaking Strength:

3/8" : 3750 lbs

1/2" : 4200 lbs

5/8" : 9100 lbs

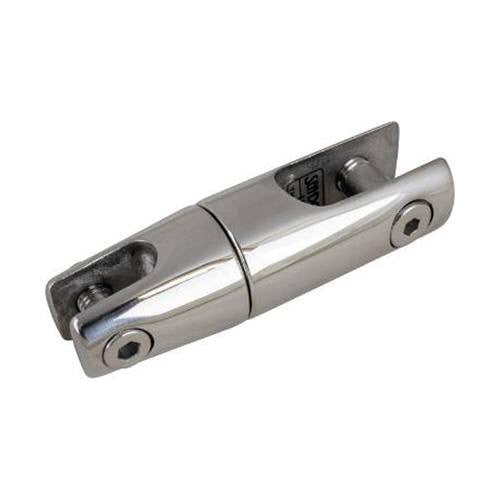

Sea-Dog Stainless Steel Anchor Swivels

Sea Dog investment cast AISI 316 stainless steel swivel anchor connectors are designed to easily slide of anchor rollers, preventing snagging which minimizes wear on the bow roller and windlass. These precision, high-quality swivels feature double locking pins for extra security. Can be used between anchor and chain or between chain and line. Investment cast 316 stainless steel

Dimensions:

182608-1

A: 3-9/16"

B: 5/8"

C: 13/16"

Allen Wrench Size: 5/32" & 4mm

Chain Sizes: 1/4" - 5/16"

Break Strength: 5,500 lbs.

182612-1

A: 4-11/16"

B: 13/16"

C: 1-1/16"

Allen Wrench Size: 5/32" & 4mm

Chain Sizes: 5/16" - 1/2"

Break Strength: 17,000 lbs.

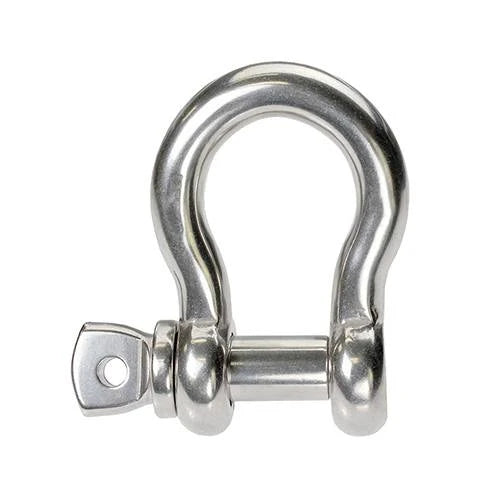

Sea-Dog Galvanized Screw Pin Anchor Shackle

With their round shape, these shackles are designed to handle many different types of load from any direction. Ideal for joining anchors to mooring chain.

Features:

Screw pin closure

Constructed of hot dip galvanized drop forged steel

Ideal for joining anchors to mooring chain

Dimensions:

147806-1

A: 1/4"

B: 5/16"

147808-1

A: 5/16"

B: 3/8"

147810-1

A: 3/8"

B: 7/16"

147812-1

A: 1/2"

B: 5/8"

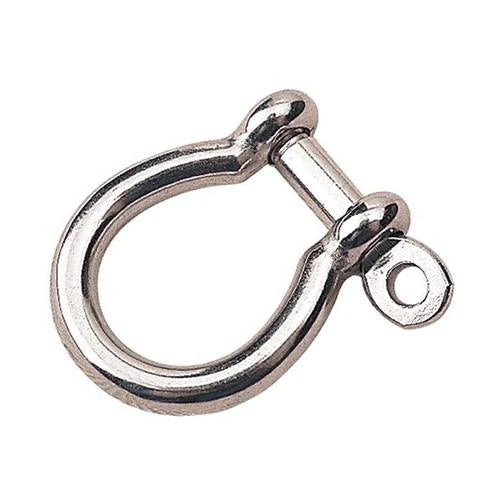

Sea-Dog Stainless Steel Bow Shackle

These Sea Dog Bow Shackles feature a rounded shape and are designed to handle many different types of load from any direction. This shackle is ideal for many rigging applications.

Features:

Constructed of Investment Cast 316 Stainless Steel

Screw Pin Closure

Dimensions:

147056-1

A: 1/4"

B: 1/2"

C: 13/16"

D: 1-1/16"

147058-1

A: 5/16"

B: 5/8"

C: 1-1/8"

D: 1-7/16"

147060-1

A: 3/8"

B: 13/16"

C: 1-3/8"

D: 1-13/16"

147062-1

A: 1/2"

B: 1"

C: 1-11/16"

D: 2-5/16"

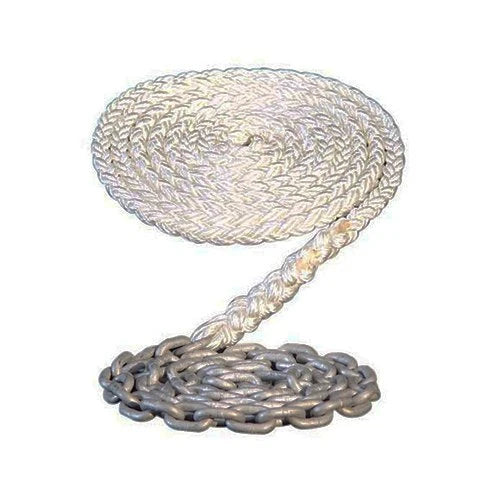

Maxwell Marine 8-Plait Nylon Anchor Rode

8-Plait Nylon Anchor Rode for Anchor Windlasses.

Maxwell Marine 8-Plait Nylon Anchor Rode

Frequently Asked Questions

• What is the Maxwell Marine 8-Plait Nylon Anchor Rode used for? The Maxwell Marine 8-Plait Nylon Anchor Rode is designed for use with anchor windlasses. It provides an 8-plait nylon rope option for marine anchoring applications where an anchor rode compatible with a windlass is required.
• Is the Maxwell Marine 8-Plait Nylon Anchor Rode designed for anchor windlasses? Yes. The product is specifically described as 8-plait nylon anchor rode for anchor windlasses. Verify the rope size and compatibility requirements of your particular windlass before use.
• What type of rope is the Maxwell Marine Anchor Rode? The Maxwell Marine Anchor Rode is made from 8-plait nylon. The supplied product description identifies it specifically as anchor rode intended for anchor windlasses.

Lewmar Stainless Anchor Swivel

Lewmar Anchor Swivel is made from 316 Stainless Steel and can swivel 360 degrees. Attach the swivel between the anchor and the chain, allowing the rope to swivel instead of twisting up.

Models Available:

SWIVEL312F

Working Load: 4500 lbs

Chain Size: 1/4"-5/16"

SWIVEL500F

Working Load: 7000 lbs

Chain Size: 3/8"-1/2"

Frequently Asked Questions

• What is the Lewmar Stainless Anchor Swivel used for? The Lewmar Stainless Anchor Swivel connects between the anchor and chain, allowing the rope to swivel instead of twisting up. It is made from 316 stainless steel and can swivel 360 degrees.
• How does the Lewmar Anchor Swivel help prevent rope twisting? The Lewmar Anchor Swivel provides a 360-degree swivel connection between the anchor and chain. This allows the rope to swivel as part of the anchoring setup rather than twisting up.
• What chain sizes are compatible with the Lewmar Stainless Anchor Swivel? Chain-size compatibility depends on the model. The SWIVEL312F is designed for 1/4"-5/16" chain, while the SWIVEL500F is designed for 3/8"-1/2" chain. Verify your chain size when selecting the appropriate model.
• What is the working load of the Lewmar Stainless Anchor Swivel? The SWIVEL312F has a working load of 4,500 lbs., while the SWIVEL500F has a working load of 7,000 lbs. Choose the model that matches your chain size and the working load requirements of your anchoring setup.
• What is the Lewmar Stainless Anchor Swivel made from? The Lewmar Stainless Anchor Swivel is made from 316 stainless steel. It is available in the SWIVEL312F and SWIVEL500F models, with different chain-size compatibility and working-load ratings.

Lewmar Anchor Line 8 Plait

Lewmar Anchor Rodes feature 8 plait nylon line joined with a tapered splice to ACCO Hi-Test hot-dipped galvanized chain. Each anchor rode comes with a shackle to attach the chain to the anchor.

Features:

Anchor rodes complement rope chain gypsies fitted to all Lewmar windlasses

Chain is hot-dipped galvanized to minimize corrosion

Enables 50% more line in locker than 3-strand rope

Same tensile strength as 3-Strand.

8-Plait nylon rope is 1/3 more absorbent than 3-Strand rope. Weight means line falls better into the anchor locker.

Relaxed line will not twist, knot or loop over itself. 8 Plait falls limp into lockers, eliminating hockles common to 3 strand.

8 individual braided strands woven together rather than twisted make 8 plait supple when relaxed.

Specifications:

Chain: 15' of 1/4" G4 Chain with shackle

Rope: 300' of 1/2" 8PLT, spliced to chain

Recommended for H-900 (Concept 1, V-2&3 use 001 gypsy) Windlasses

Lewmar USA Premium 8-Plaited Nylon Anchor Rope

8-Plait Features:

Eliminates some of the service problems associated with the 3-strand ropes. 8-Plait uses 8-individual braided strands woven together that allow the rope to be relaxed. But, when under load, it tightens up to a firm lay. The higher the load the harder the lay becomes.

Carries the same tensile strength as 3-Strand.

Does not coil or create a "birds nest" in the locker like 3-Strand will. 8-Plait flakes and falls upon itself.

Will not twist and knot up.

Will not loop over onto itself.

Has less stretch so it will not bury itself deep into the gypsy's grip when overloaded, which means less damage to the stripper when the windlass is abused or overloaded.

Pays off of the windlass into the locker much like chain, allowing for better use of smaller locker designs.

80% less prone to becoming stiff when used in salt water than 3-Strand.

1/3 more absorbent than 3-Strand rope. More absorbent means more weight; more weight means better fall into the anchor locker.

Should be soaked in water (salt or fresh - it does not matter) to pre-lubricate the rope so it can be used in the windlass initially. When rope is used dry and new, we have seen either slippage or sticking in the rope pocket of the gypsy. Once the rope is wet and used, it out performs the 3-Strand. The longer it is used the better it gets.

• What size windlass would best suit my boat? Use our windlass selection chart found on page 2 to determine the general size of windlass to be fitted to your boat by using length and displacement. For example, if you have a 10m (33 ft) boat, typically a 270kg (600 lb) pull windlass would be selected. The rule to crosscheck your windlass selection is to add the total weight of the chain and the weight of the anchor together. Rope is very light and does not affect the actual lifting performance of the windlass, but can be factored in. For safe cruising in all types of conditions and sea areas, Lewmar recommends that you multiply the total weight of your anchor and chain x4 (x2 for V6 to V12). This number should be less than the maximum pull of the windlass you have selected. Should your findings be at or more than the maximum pull, select the next largest windlass. The windlass does not stow the anchor rode in the locker. Gravity stows the rode in the locker. There must be a free and clear area under the hawse pipe for the incoming rode to lie; if not, the rode will jam. Your windlass is a retrieval device; the windlass retrieves the anchor and rode. A windlass is not a high-load-bearing device. When at anchor your rode should be secured to a chain stopper, a cleat or other mooring point on the bow.
• How long is the anchor rode I wish to use, and will the windlass put the entire rode into my locker? Begin by examining the depth of the anchor locker to determine the fall that is available. The fall is the vertical distance between the top of the anchor locker and the top of the anchor rode when the entire …

Lewmar Fluke Anchor Kit

This Lewmar Fluke Anchor Kit is a premium quality pre-packaged anchoring kit that comes pre-assembled and ready to use right out of the package.

Features:

Anchor is hot dip galvanized for minimal corrosion

Calibrated chain for even pitch and melded for maximum strength

Lewmar quick splice for rope chain connection

Premium grade three strand line for maximum abrasion resistance

One year warranty

Includes:

Galvanized fluke anchor

5' of 6mm chain spliced into 100' of 3/8" 3-strand line

Eye splice

2 Shackles

Lewmar Premium 3-Strand Anchor Rodes - Marine Grade with Rope & Galvanized Chain

Lewmar anchor rodes are a great economical choice for boaters looking for a windlass rode. These rodes are designed to work with the rope-chain gypsies fitted to all Lewmar Windlasses and help it operate smoothly. Keep in mind the size of the rode you have chosen and if your anchor locker has enough depth to store the Lewmar Anchor Rodes.

The Lewmar Premium 3-Strand Anchor Rode is made of 3-Strand nylon rope. There are several grades of this rope available. Make sure you are always using a premium windlass grade rope and ensure that the diameter is ½” (.500) or slightly larger, smaller sizes work poorly in ½ gypsies. Lower quality 3-strand rope tends to not lay properly.

Lewmer Anchor Rodes are manufactured with ¼” -5/16” shackles and are calibrated for even pitch. The smooth rope-to-chain transition is welded for greater strength. The whipping of the rope is hand sewn to help prevent unraveling.

These rodes can take on wear and tear and especially in salt-water conditions. If your lines begin to stiffen, soak in a bucket of fresh water and fabric softener. (the longer the better). This should repair some of the flexibility. However, if this doesn’t work your Lewmar anchor rodes should be replaced.

Features:

Designed to complement the rope-chain gypsies fitted to all Lewmar windlasses

1/4" G4 - 5/16" Shackle

Calibrated for even pitch

Hot dip galvanized to minimize corrosion

Welded for high strength

Smooth rope-to-chain transition

Helps your windlass operate smoothly

Hand-sewn whipping guarantees against unraveling

Frequently Asked Questions

• What are Lewmar Premium 3-Strand Anchor Rodes designed for? Lewmar Premium 3-Strand Anchor Rodes are designed for use as windlass rodes with the rope-chain gypsies fitted to Lewmar windlasses. The rode combines 3-strand nylon rope with hot-dip galvanized chain and is designed to provide a smooth transition between the rope and chain during windlass operation.
• What size rope is recommended for Lewmar Premium 3-Strand Anchor Rodes? The product information recommends using premium windlass-grade 3-strand nylon rope with a diameter of 1/2 inch (.500) or slightly larger. Smaller rope sizes may work poorly in 1/2-inch gypsies, while lower-quality 3-strand rope may not lay properly.
• What type of shackle and chain are used with Lewmar Premium Anchor Rodes? Lewmar Premium Anchor Rodes are manufactured with 1/4- to 5/16-inch shackles and calibrated for even chain pitch. The chain is hot-dip galvanized to help minimize corrosion, and the rope-to-chain transition is welded for high strength.
• How do Lewmar Premium Anchor Rodes help a windlass operate smoothly? These rodes are designed to complement the rope-chain gypsies fitted to Lewmar windlasses. The calibrated chain and smooth rope-to-chain transition help the rode move through the windlass properly during operation.
• How should a stiff Lewmar Premium 3-Strand Anchor Rode be maintained? If the line begins to stiffen, the product information recommends soaking it in a bucket of fresh water and fabric softener, preferably for an extended period. If this does not restore flexibility, the Lewmar anchor rode should be replaced.
• How is the rope on Lewmar Premium Anchor Rodes finished to help prevent unraveling? The rope uses hand-sewn whipping to help prevent unraveling. The rope-to-chain transition is also welded for high strength, providing a finished connection between the 3-strand nylon rope and galvanized chain.

Lewmar Galvanized Claw Anchor

Lewmar Galvanized Claw Anchors are a durable, economical choice for boaters anchoring in mud, sand, and rocky bottoms. Modeled after anchors used to secure oil rigs in the North Sea, Lewmar's Claw anchors set effortlessly and hold in a variety of seabeds. These anchors are constructed of high-grade steel cast in a single piece for maximum durability. Claw anchors can easily be stowed on the bow roller of most boats.

Features:

Manufactured from high grade steel

Galvanized, Single piece cast

Suitable for use on various sea beds

Sets effortlessly

Bow roller storable

Sizes Available:

57902 - 4.4 Lb. - 14 3/16" L x 7 3/16" W

57905 - 11 Lb. - 18 7/16" L x 8 5/16" W

57907 - 16.5 Lb. - 19 5/8" L x 10 3/8" W

57910 - 22 Lb. - 21 1/4" L x 11 1/8"W

57915 - 33 Lb - 24 13/16" L x 13 7/16" W

57920 - 44 Lb - 27 11/16" L x 13 1/2" W

Frequently Asked Questions

• What type of bottom is the Lewmar Galvanized Claw Anchor designed for? The Lewmar Galvanized Claw Anchor is designed for use in mud, sand, and rocky bottoms. Its claw-style design helps it set easily and hold across a variety of seabed conditions.
• What is the Lewmar Claw Anchor made from? This anchor is manufactured from high-grade steel and cast in a single piece for durability. It also features a galvanized finish to help resist corrosion in marine environments.
• Does the Lewmar Galvanized Claw Anchor set easily? Yes. The Lewmar Galvanized Claw Anchor is designed to set effortlessly, making it a dependable option for boaters looking for reliable holding performance in a variety of bottom conditions.
• Can this anchor be stored on a bow roller? Yes. The Lewmar Galvanized Claw Anchor can be easily stowed on the bow roller of most boats, helping simplify storage and anchor handling.
• What sizes are available for the Lewmar Galvanized Claw Anchor? Available sizes range from 4.4 lbs. to 44 lbs. with multiple length and width options depending on the model selected. Review the product specifications to choose the right anchor size for your boat and application.

Lewmar Galvanized Delta Anchor

Tough, efficient, and ready for anything, the Lewmar Galvanized Delta Anchor is a favorite among boaters for good reason. Its hot-dip galvanized steel build resists corrosion, while the self-launching design makes deployment smooth and hassle-free. A low center of gravity and balanced fluke angle help it dig in fast and stay put, whether you’re anchoring in sand, mud, or rocky terrain. The hollow shank boosts strength without unnecessary weight, and a range of sizes makes it easy to match to your vessel. Built on decades of marine know-how, the Delta is a dependable choice for everything from day trips to overnight stays.

Features:

Proven top performance

High-grade manganese steel construction

Lead ballasted tip allows for fast bottom setting

Guaranteed against breakage for life

Performs well on a wide range of sea beds

Offers excellent holding power

Lewmar Galvanized Delta Anchor self-launches for safety and convenience

Lloyd's register type approval- certification available upon request.

*Lloyd's Register provides quality assurance and certification for marine products and construction.

Specifications:

Part Number

Anchor Weight

Length

Width

Boat Length

Recommended Chain Size

57404

9lbs.

20-1/4"

9"

Up to 22'

1/4"

57406

14 lbs.

23-3/8"

10-3/8"

Up to 33'

1/4"

57410

22 lbs.

27-3/8"

12-1/8"

Up to 40'

5/16"

57416

35 lbs.

32"

14-1/8"

Up to 45'

5/16"

57420

44 lbs.

34-1/2"

15-1/4"

Up to 55'

3/8"

Frequently Asked Questions

• What material is the Lewmar Galvanized Delta Anchor made from? The Lewmar Galvanized Delta Anchor is made from high-grade manganese steel and finished with a hot-dip galvanized coating for corrosion-resistant durability in marine environments.
• What helps the Lewmar Delta Anchor set quickly? The Lewmar Delta Anchor is designed with a lead ballasted tip, low center of gravity, and balanced fluke angle to help it dig in quickly and achieve a secure set across a variety of bottom conditions.
• What types of bottom is this anchor designed for? The Lewmar Galvanized Delta Anchor is designed to perform well on a wide range of sea beds, including sand, mud, and rocky terrain. Its design helps provide reliable holding power in varied anchoring conditions.
• Is the Lewmar Delta Anchor self-launching? Yes. The Lewmar Galvanized Delta Anchor features a self-launching design for easier deployment and added convenience during anchor handling.
• What boat sizes and chain sizes are recommended for the Lewmar Delta Anchor? Available models are recommended for boats up to 22 feet, 33 feet, 40 feet, 45 feet, or 55 feet depending on anchor weight. Recommended chain sizes range from 1/4" to 3/8", so review the product specifications to choose the correct anchor and chain size for your boat.

Lewmar Shallow Water Anchor Motor Mounting Bracket

This bracket is designed to mount your Axis or Vector shallow water anchor around your motor. This bracket comes with all required mounting hardware.

Click here for Lewmar's motor mounting bracket installation guide

Lewmar Shallow Water Anchor Jack Plate Mounting Bracket

This bracket is designed to mount your Axis or Vector shallow water anchor to your jack plate. This mounting bracket features a symmetrical design so it can be mounted on either the port or starboard side.

This bracket comes with all required mounting hardware.

Click here for Lewmar's jack plate mounting bracket installation guide
