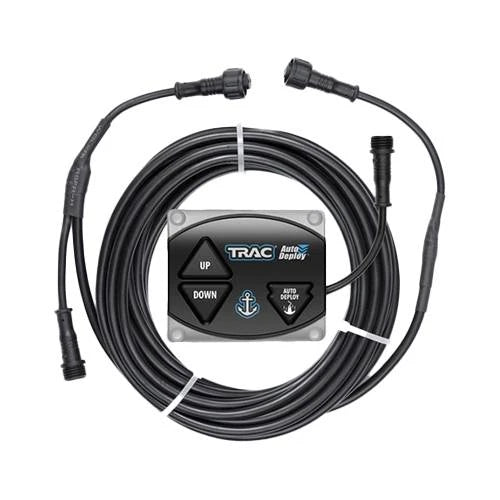

TRAC Gen3 Anchor Winch 2nd Switch Kit

The TRAC Gen3 2nd Switch Kit can be installed at the helm or wherever you choose and provides a second option for control of the electric anchor winch. The switch on the winch cover will continue to operate as well.

Kit Includes:

Sealed switch

24' cable with connectors and 4 screws for switch

Everything needed to install an auxiliary control switch in the location of your choice.

Compatible with G3 (Gen3) Anchor Winch models only: T10108-G3 Fisherman 25 Electric Anchor Winch and T10109-G3 Pontoon 35 Electric Anchor Winch (both sold separately)

Replaces old TRAC part # T10215-G3

Frequently Asked Questions

• What is the TRAC Gen3 Anchor Winch 2nd Switch Kit used for? The TRAC Gen3 Anchor Winch 2nd Switch Kit adds a second control option for a compatible electric anchor winch. The auxiliary sealed switch can be installed at the helm or another convenient location, while the switch on the winch cover remains functional.
• Which TRAC anchor winches are compatible with the Gen3 2nd Switch Kit? This kit is compatible only with G3 (Gen3) TRAC Anchor Winch models. It is designed for the T10108-G3 Fisherman 25 Electric Anchor Winch and T10109-G3 Pontoon 35 Electric Anchor Winch, which are sold separately.
• What is included with the TRAC Gen3 Anchor Winch 2nd Switch Kit? The kit includes a sealed switch, a 24-foot cable with connectors, and four screws for mounting the switch. These components provide the equipment needed to install an auxiliary control switch for a compatible Gen3 anchor winch.
• Where can the auxiliary switch from the TRAC Gen3 2nd Switch Kit be installed? The auxiliary switch can be installed at the helm or wherever you choose, providing a second control location for the electric anchor winch. The original switch located on the winch cover will continue to operate after the auxiliary switch is installed.
• What TRAC part number does the Gen3 2nd Switch Kit replace? The TRAC Gen3 Anchor Winch 2nd Switch Kit replaces the older TRAC part number T10215-G3.

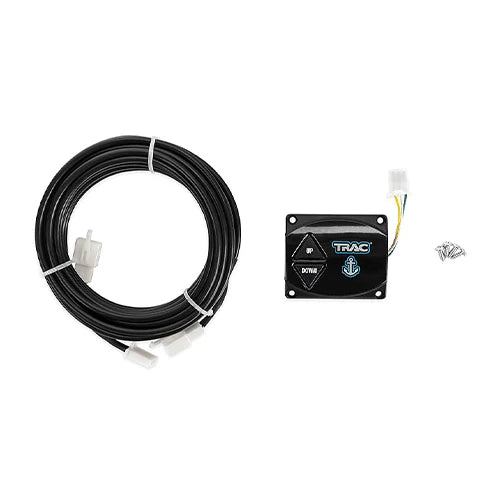

TRAC G2 Anchor Winch Second Switch Kit

Pre-made cables with connectors, sealed switch and bezel faceplate – everything needed to install an auxiliary control switch in the location of your choice.

This switch to be installed at the helm or wherever you choose, provides a second option for control of the electric anchor winch. The switch on the winch cover will continue to operate as well.

This second switch kit works with all TRAC anchor winches -- fresh and salt water models

Kit Includes:

24’ Wiring Harness

Switch

Switch Plate

4 Screws

Installation:

Remove winch cover and disconnect the switch from the control unit. Be very careful not to pull the wires out of the switch or control unit.

One end of the wiring harness has two connectors. Connect them to the switch on winch housing and to the control unit.

Route the wiring harness (the end with one connector) to second switch location. The wiring harness is 24’ long.

If it is not long enough, you will need to splice-in more wire.

If too long, just coil the extra wire and secure it with cable-ties.

To install the 2nd switch in desired location, you will need to make a rectangular hole – 1.25” wide by 2.25” high. Fit the switch in the hole to check fit (trim hole as needed) and mark the four screw locations.

Drill four screw holes with 1/8” drill bit. Pass the connector thru the hole in the back side.

Connect the harness connector to the switch connector.

Fit switch plate in the hole and attach with the four screws provided.

Click here to download Trac Anchor Winch 2nd Switch Kit Installation Instructions

Information sourced from TRAC Anchor Winch 2nd Switch Kit Installation Instructions

Frequently Asked Questions

• What is the TRAC G2 Anchor Winch Second Switch Kit designed for? The TRAC G2 Anchor Winch Second Switch Kit adds an auxiliary control switch for a TRAC electric anchor winch. The additional switch can be installed at the helm or another location of your choice, while the original switch on the winch cover continues to operate the winch.
• What TRAC anchor winches are compatible with this second switch kit? This second switch kit works with all TRAC anchor winches, including both freshwater and saltwater models. The kit provides a second control location while retaining operation from the switch mounted on the winch cover.
• What is included with the TRAC G2 Anchor Winch Second Switch Kit? The kit includes a 24-foot wiring harness, a switch, a switch plate, and four screws. The wiring harness comes with connectors to connect the existing winch switch and control unit to the auxiliary switch location.
• How long is the wiring harness included with the TRAC G2 Anchor Winch Second Switch Kit? The wiring harness is 24 feet long, allowing the second switch to be routed to a location of your choice. If additional length is needed, the instructions specify splicing in more wire. If the harness is too long, the extra wire can be coiled and secured with cable ties.
• What size opening is needed to install the second switch? Installation requires a rectangular opening measuring 1.25 inches wide by 2.25 inches high. After checking the switch fit and trimming the opening as needed, the instructions call for four screw holes drilled with a 1/8-inch drill bit to secure the switch plate.
• Can the second switch be installed at the helm? Yes. The second switch can be installed at the helm or wherever you choose. The wiring harness is routed from the winch to the selected switch location, where it connects to the auxiliary switch. The original switch on the winch cover remains functional after the second switch is installed.

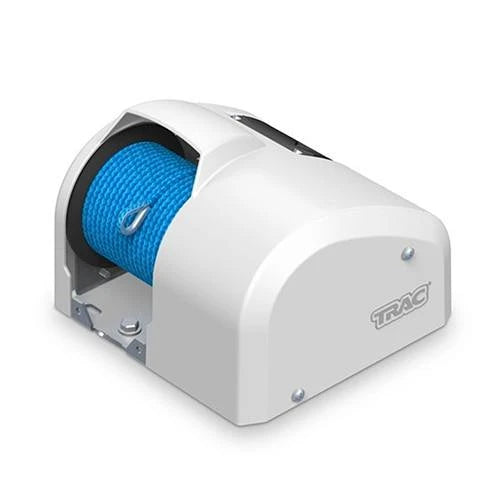

TRAC 40AD SeaSide Anchor Winch

The TRAC 40AD SeaSide Anchor Winch is a durable winch featuring touch-and-release anchor deployment. The 40AD SeaSide winch is for boats up for 24' and can support anchor rode up to 40 lbs. With AutoDeploy, this winch will automatically stop when the anchor touches the bottom and gradually release more rope until the anchor will hold position. At any time, you can press the DOWN button to release more rope or press AutoDeploy again. Simply hold the UP button to retrieve the anchor.

Features:

Includes wireless remote controller with mounting bracket

Includes 90' x .25" nylon double braid anchor rope with 2,000 lb. break strength

Includes installation instructions & hardware

For anchor rodes up to 40 lbs.

Sealed marine-grade 3-button switch on winch

Marine-grade tinned 12-gauge 16' battery wire included

Retrieve 90 feet of rope in about 80 seconds

12v Electric winch auto-resetting circuit breaker included

Safety cable included

Davit not included

2 Year manufacturer warranty

Specifications:

Suggested Boat Size: Up to 24'

Rope Capacity: 5 mm x 100 ft  | 6 mm x 90 ft

Max Rope Weight: 40 lbs.

Rope Speed Up: 70 FPM

Amp draw @ 12V: 10-12 amps

Winch Dimensions: 18" L x 9" W x 6" H

Deck Space Used: 18" x 9"

Frequently Asked Questions

• What is the TRAC 40AD SeaSide Anchor Winch designed for? The TRAC 40AD SeaSide Anchor Winch is designed for boats up to 24 feet and supports anchor rodes weighing up to 40 lbs. Its AutoDeploy function automatically stops when the anchor reaches the bottom and gradually releases additional rope until the anchor holds position.
• How does AutoDeploy work on the TRAC 40AD SeaSide Anchor Winch? When AutoDeploy is activated, the winch stops when the anchor touches the bottom. It then releases rope gradually until the anchor holds the boat in position. You can press the DOWN button to release more rope or activate AutoDeploy again at any time.
• What rope is included with the TRAC 40AD SeaSide Anchor Winch? The TRAC 40AD SeaSide Anchor Winch includes 90 feet of 1/4-inch nylon double-braid anchor rope with a 2,000 lb. break strength. The winch specifications also list capacity for 5mm x 100 ft or 6mm x 90 ft of rope.
• How quickly does the TRAC 40AD SeaSide Anchor Winch retrieve the anchor rope? The TRAC 40AD SeaSide Anchor Winch has an upward rope speed of 70 feet per minute. The product information states that it can retrieve 90 feet of rope in approximately 80 seconds.
• What is included with the TRAC 40AD SeaSide Anchor Winch? The winch includes a wireless remote controller with mounting bracket, 90 feet of nylon double-braid anchor rope, installation instructions and hardware, marine-grade tinned 12-gauge 16-foot battery wire, an auto-resetting circuit breaker, and a safety cable. A davit is not included.
• What are the electrical requirements for the TRAC 40AD SeaSide Anchor Winch? The TRAC 40AD SeaSide Anchor Winch is a 12V electric winch with a 10-12 amp draw at 12V. It includes marine-grade tinned 12-gauge 16-foot battery wire and a 12V auto-resetting circuit breaker.

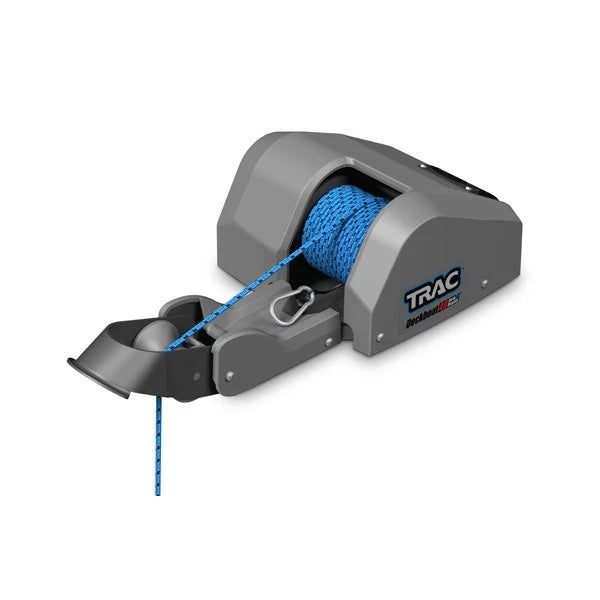

TRAC 69005 Deckboat 40 Auto Deploy Anchor Winch

Lower and retrieve your anchor with ease using the automated TRAC Deckboat 40 Auto Deploy Anchor Winch. Here’s how it works: press and release the button- the anchor will be powered down smoothly and quietly. There is no need to stand by, just activate and walk away. When the anchor reaches the bottom, the winch transitions from steady power-deploy and begins releasing rope a few feet at a time. When there is enough rope let-out, at this point the winch will “lock”, thereby holding the boat position. Need more rope? Let it out by powering the rope IN or OUT. If changes in wind or current conditions cause anchor drag, just press the AutoDeploy button again to correct for the change. Find a list of the TRAC anchor winch’s additional features directly below.

Features:

AutoDeploy button automatically deploys the anchor, releasing rope until the anchor touches bottom.

When rope slack tightens, the rope is automatically released in short lengths and/or may be locked in position.

Automatically releases the correct length of rope required to hold the boat’s position.

Recommended for use on pontoon and open deck boats to avoid distractions and increase safety.

Operation features three simple buttons: UP / DOWN / AUTO DEPLOY

Includes Wireless Remote Control

Davit is integrated.

1-Year warranty

Specifications:

Maximum Anchor Capacity: 35-40 lbs. (30-35 lbs. recommended)

Typical Boat Length: up to 26′

Speed up:  65 ft/min

Speed down:  70 ft/min

Winch Dimensions (LxWxH): 19.5″ x 9.75″ x 5.75″

Includes:

Durable all-steel gears for a long service life

100-feet of 0.20” pre-wound braided anchor rope

Automatic resetting circuit breaker

Housed membrane switch

17-foot long, 14-gauge marine-grade battery wire

Anchor safety chain

Assembly hardware/instructions

1 -Year Manufacturer’s Warranty

Replaces old TRAC part # T10219-G3

TRAC Deckboat 40 AutoDeploy Anchor Winch User Manual

Frequently Asked Questions

• What is the TRAC 69005 Deckboat 40 Auto Deploy Anchor Winch used for? The TRAC 69005 Deckboat 40 Auto Deploy Anchor Winch is designed to automatically deploy and retrieve an anchor while helping maintain the boat's position. It is recommended for pontoon and open deck boats and is typically suited for boats up to 26 feet.
• How does the AutoDeploy function work on the TRAC 69005 anchor winch? Pressing the AutoDeploy button starts a powered anchor deployment until the anchor reaches the bottom. The winch then releases rope in short lengths as needed. When sufficient rope is released, the winch locks to hold the boat's position. The AutoDeploy function can be activated again if wind or current causes anchor drag.
• What size anchor can the TRAC 69005 Deckboat 40 handle? The TRAC 69005 has a maximum anchor capacity of 35-40 lbs., with 30-35 lbs. recommended. The product is typically intended for boats up to 26 feet long.
• What controls are included with the TRAC 69005 Auto Deploy Anchor Winch? The TRAC 69005 uses three simple controls: UP, DOWN, and AUTO DEPLOY. It also includes a wireless remote control for convenient operation.
• What type and length of anchor rope does the TRAC 69005 include? The TRAC 69005 includes 100 feet of 0.20" pre-wound braided anchor rope. The package also includes an anchor safety chain for the specified anchor winch setup.
• What are the operating speeds and dimensions of the TRAC 69005? The TRAC 69005 has a speed-up rate of 65 ft/min and a speed-down rate of 70 ft/min. The winch measures 19.5" L x 9.75" W x 5.75" H and includes an automatic resetting circuit breaker and 17-foot, 14-gauge marine-grade battery wire.

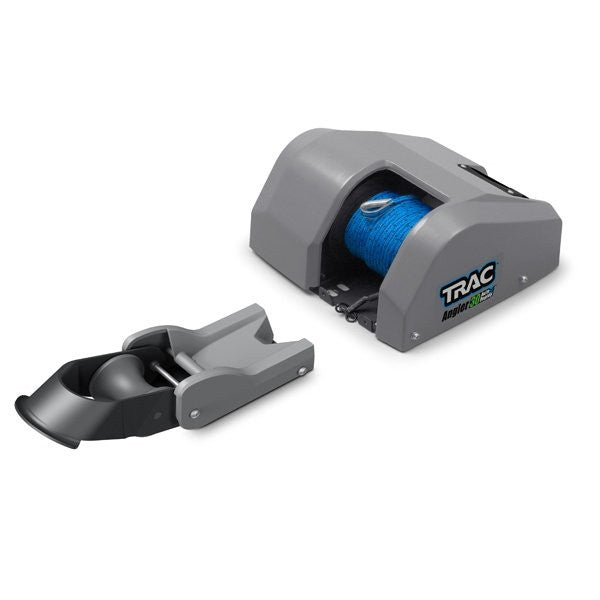

TRAC Angler 30 Auto Deploy Anchor Winch

With the touch of a button (press and release), the anchor is powered down smoothly and quietly, while you go about your boating activity.  When the anchor reaches bottom, the winch will transition from steady power-deploy and begin releasing rope just a few feet at a time, until the there is enough rope out, then the winch will “lock” holding the boat position.  You can always let more rope out by powering the rope IN or OUT. Or, press the AutoDeploy button again if the anchor drags due to changing conditions, such as wind or current.

Features:

Push-button AutoDeploy which automatically deploys the anchor, releasing rope until the anchor touches bottom.

When slack in the rope becomes tight, rope is automatically released in short lengths or can be locked with the touch of any switch or remote button.

Automatically releases the rope needed to hold the boat in position.  When the anchor stops letting rope out, press the “lock” or any other switch button.

Great for fishing to allow a “controlled” drift.

3 button operation – UP / DOWN / AUTO DEPLOY

Wireless Remote Control included

Attached or separated davit

Specifications:

Maximum Anchor Capacity: 25-30 lbs. (20-25 lbs. recommended)

Typical Boat Length: up to 22′

Speed up: 65 ft/min

Speed down: 70 ft/min

Remote Battery: LR27A

Winch Dimensions (LxWxH): 10″ x 9.75″ x 5.75″

Includes:

Rugged All-Steel Gears

100’ of 0.20” pre-wound braided anchor rope

Automatic resetting circuit breaker

Sealed membrane switch

14-gauge marine-grade battery wire which is 16 ft long

Anchor safety chain

Assembly hardware and instructions

1 Year Manufacturer’s Warranty

Replaces old TRAC part # T10208-G3

TRAC Angler 30 Anchor Winch User Manual

Frequently Asked Questions

• What is the TRAC Angler 30 Auto Deploy Anchor Winch designed for? The TRAC Angler 30 Auto Deploy Anchor Winch is designed for boats up to 22 feet and anchors weighing up to 25-30 lbs., with 20-25 lbs. recommended. Its AutoDeploy function helps automatically release rope until the anchor holds the boat in position.
• How does AutoDeploy work on the TRAC Angler 30 Anchor Winch? Press and release the AutoDeploy button to power the anchor down. When the anchor reaches the bottom, the winch begins releasing rope in short lengths as needed. Once the boat is held in position, the winch locks. Additional rope can be released using the controls, or AutoDeploy can be activated again if conditions change.
• What controls are included with the TRAC Angler 30 Auto Deploy Anchor Winch? The TRAC Angler 30 features three-button operation for UP, DOWN, and AUTO DEPLOY functions. A wireless remote control is included, and the winch also has a sealed membrane switch for operating the anchor.
• What rope is included with the TRAC Angler 30 Anchor Winch? The TRAC Angler 30 includes 100 feet of 0.20-inch pre-wound braided anchor rope. An anchor safety chain, assembly hardware, and instructions are also included with the winch.
• What are the speed and size specifications of the TRAC Angler 30? The TRAC Angler 30 has a retrieval speed of 65 feet per minute and a deployment speed of 70 feet per minute. The winch measures 10 inches long by 9.75 inches wide by 5.75 inches high and is designed for boats up to 22 feet.
• What electrical components are included with the TRAC Angler 30 Auto Deploy Anchor Winch? The winch includes an automatically resetting circuit breaker and 16 feet of 14-gauge marine-grade battery wire. The wireless remote uses an LR27A battery. The package also includes rugged all-steel gears and assembly hardware and instructions.

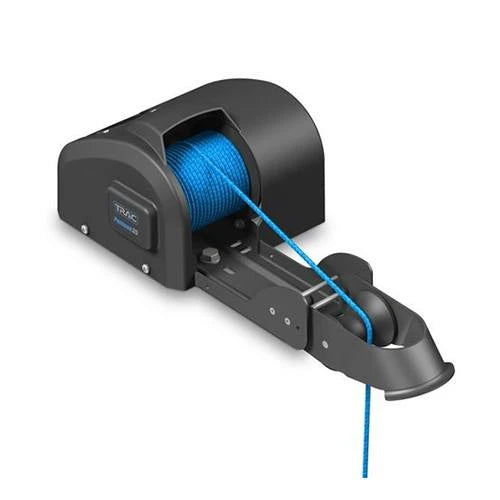

TRAC G3 Pontoon 35 Electric Anchor Winch

The TRAC Pontoon 35 Anchor Winch allows you to raise and lower your anchor with the press of a button! TRAC's line of Generation 3 anchor winches offer simple, smooth operation and provide excellent holding power. This anchor winch features a high-efficiency 12-volt DC all steel gear motor that uses less battery power than other makes. This winch has power up/down switch functions and utilizes an anti-reverse internal clutch to prevent free-spooling. Other great features include an integrated anchor davit and a die-cast aluminum gearbox.

The TRAC Pontoon 35 Anchor Winch includes 100' of pre-wound double braid anchor rope, a circuit breaker, sealed membrane UP/DOWN switch, marine-grade battery wire, assembly hardware, and instructions. This winch is suitable for applications requiring heavier anchors, up to 35 lbs. and is ideal for pontoon boats of all sizes. The Pontoon 35 is backed by TRAC's 1 year manufacturers warranty.

Features:

Provides excellent holding power

Integrated anchor davit/roller

Die-cast aluminum gearbox

68 mm heavy-duty DC motor

Smaller footprint than competitors

Sleek exterior case design

1 Year warranty

Specifications:

Suggested Boat Size: Up to 24'

Rope Capacity: 5mm x 100 ft, 6mm x 90 ft

Anchor Deployment: Power Down

Max Rode Weight: 35 lbs.

Rope Speed Up: 70 FPM

Switch Functions: Power UP / DOWN

Amp Draw @ 12V: 10-12 Amps

Winch Dimensions: 18" L x 9" W x 6" H

Deck Space Used: 18" L x 9" W

Replaces old TRAC part number T10109-G3

Tools Required for Installation:

Electric Drill

5/16’’ (7.9mm) Drill Bit

Electrical Terminal Crimping Tool

Adjustable Wrench

Phillips Screw Driver

Materials Required for Installation:

Winch and Anchor Roller (included)

Seven 8mm bolts, washers and nuts (included) – Longer bolts may be required if your deck is very thick.

Shackle for anchor attachment (included)

Anchor (not included – up to 30lb. (13.6 kg))

Battery Wire and Circuit Breaker (included)

Installing Anchor Winch On Boat Deck:

The anchor winch can be installed on the fore (front) or the aft (rear) of the boat.

Locate anchor roller and winch on deck in desired location. The anchor roller must be located at the edge of the deck and must be extended over the edge to allow the anchor to clear the deck when it is docked in the anchor roller.

Look below the deck and check for any obstructions underneath the desired anchor roller and winch locations. Make sure there is enough space for the rope spool on the winch to be centered on the anchor roller.

Using a marker, mark the anchor roller and winch mounting holes on the deck.

Note: There are several bolt holes in winch frame to choose from. The easiest to use are the 4 slots (2 on each end of the frame). There are also holes for the battery lead wires so you can route the wires through the deck id you desire.

Remove winch and anchor roller. Drill the holes. Bolt to deck. Use fender washers and/or marine plywood under the deck to ensure the greatest strength and to spread the load.

Wiring:

Do not use wire sizes smaller than 14 AWG with 105 degree C rated insulation.

The wires and switch are all properly connected.

You will need to route the battery wires from the winch to battery and connect the RED positive (+) wire to the silver post on the circuit breaker.

The small hole on the buss bar (flat stamped metal part with two holes) is attached to the colored post on the circuit breaker and the large hole on the buss bar is attached to the battery positive terminal.

The BLACK negative (-) wire is attached to the battery negative terminal.

Anchor Attachment:

Attach the shackle to the anchor shank eye.

Tie the rope to the anchor shackle.

Anchor Winch Operation:

To lower the anchor press and hold the switch in the “down” position for a few seconds and release the switch.

The anchor will freefall to the lake or river bottom.

Allo…

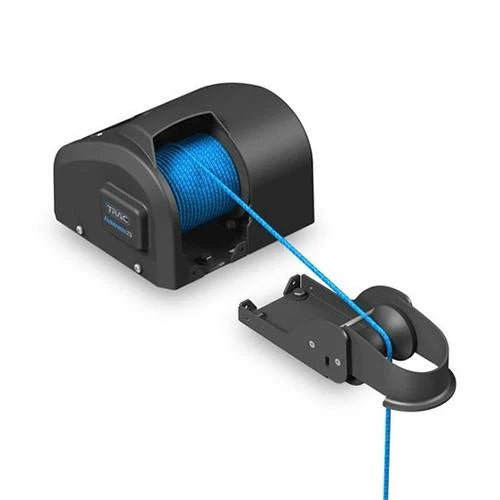

TRAC G3 Fisherman 25 Electric Anchor Winch

The TRAC Fisherman 25 Electric Anchor Winch is perfect for smaller fishing or deck boats to raise and lower your anchor with the press of a button. This winch will power up and down your anchor and has an anti-reverse internal clutch to prevent free-spooling. All TRAC Generation 3 anchor winches offer simple, smooth operation and provide excellent holding power. This winch features a high-efficiency 12-volt DC all-steel gear motor and uses less battery power than other makes. Additionally, the Fisherman 25 winch is designed with a sleek exterior case and has a new smaller footprint.

The TRAC Fisherman 25 Anchor Winch includes 100' of pre-wound double braid anchor rope, a circuit breaker, sealed membrane UP/DOWN switch, marine-grade battery wire, assembly hardware, and instructions. This winch is suitable for fishing boats up to 20'. The Fisherman 25 is backed by TRAC's 1 year manufacturers warranty.

Features:

Provides excellent holding power

Die-cast aluminum gearbox

68 mm heavy-duty DC motor

Smaller footprint than competitors

Sleek exterior case design

Separated davit/roller

1 Year warranty

Specifications:

Suggested Boat Size: Up to 20'

Rope Capacity: 5mm x 100 ft, 6mm x 90 ft

Anchor Deployment: Power Down

Max Rode Weight: 25 lbs.

Rope Speed Up: 70 FPM

Switch Functions: Power UP / DOWN

Amp Draw @ 12V: 8-10 Amps

Winch Dimensions: 9" L x 9" W x 6" H

Deck Space Used: 16" L x 9" W

Replaces old TRAC part number T10108-G3

Click here to download Trac Fisherman 25 Anchor Winch Manual

Tools Required for Installation

Electric Drill

5/16’’ (7.9mm) Drill Bit

9/16’’ (14mm) Socket and Driver

Adjustable (Crescent style) Wrench

Phillips Screw Driver

Materials Required for Installation:

Winch and Anchor Roller (included)

Seven 8mm bolts, washers and nuts (included) – Longer bolts may be required if your deck is very thick.

Shackle for anchor attachment (included)

River or Mushroom anchor (not included – 20 lbs. recommended with a short shank).

Battery Wire and Circuit Breaker (included)

Installing Anchor Winch on Boat Deck:

The anchor winch can be installed on the fore (front) or the aft (rear) of the boat.

Locate anchor roller on deck in desired location.

The anchor roller must be located at the edge of the deck and must be extended over the edge to allow the anchor to clear the deck when it is docked in the anchor roller.

Look below the deck and check for any obstructions underneath the desired anchor roller location.

Make sure there is enough space for the winch to be placed in-line with rope spool centered on the anchor roller.

Remove the 2 Phillips head screws in the rear of the davit assembly to expose the mounting holes. Using a marker, mark the anchor roller and winch mounting holes on the deck.

Remove anchor roller and drill the holes.

Secure the anchor roller to the deck using three 8mm bolts, nuts and washers.

Place winch on boat deck and align the center of the rope spool with the center of the anchor roller.

Look below the deck and check for any obstructions underneath the desired anchor winch mounting location.

To expose the mounting holes, remove the four Phillips head screws that hold the cover on the winch frame and disconnect the white connector for the switch.

Mark and drill the holes. There are four 8mm bolt mounting holes and a hole for the battery lead wires.

Place the anchor winch in position and bolt to the deck. Use fender washers and/or marine plywood under the deck to ensure the greatest strength and to spread the load.

Wiring:

Do not use wire sizes smaller than 14 AWG with 105 degree C rated insulation.

The wires and switch are all properly connected.

You will need to route the battery wires from the winch to battery and connect the RED positive (+) wire to the silver post on the circuit breaker.

The small hole on the buss bar (flat stamped metal part with t…

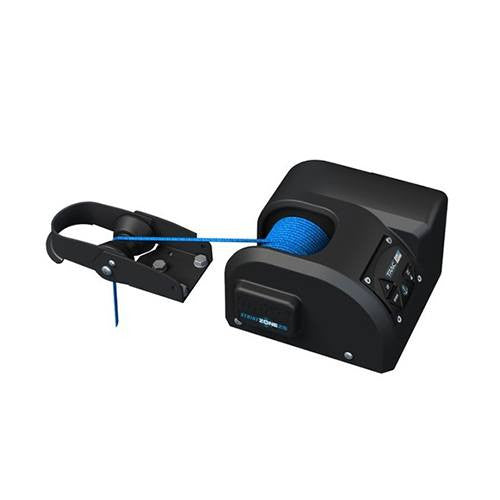

TRAC StrikeZone 25 AutoDeploy Anchor Winch

The TRAC StrikeZone 25 Anchor Winch is designed for use with mushroom and river anchors up to 25 lbs making it ideal for use aboard small fishing craft. One touch of TRAC's AutoDeploy button will automatically deploy your anchor freeing your arms and hands to continue to fish without interruption! AutoDeploy will automatically stop the winch when the anchor touches the bottom. At this point either stop the auto deployment by touching any button on the switch or you permit controlled drifting. AutoDeploy senses the bottom, and when slack in the rope becomes tight, the rope will automatically be released until the boat begins to hold. At this point the spool will lock. It is that simple and that convenient to use.

This TRAC anchor winch is suitable for all boats where a 25 lbs. anchor and 100 ft. of rope are sufficient.

Features:

Maintains boat position in the Strike Zone

AutoDeploy automatically stops the winch when the anchor touches the sea or lake bed.

Includes 100-ft. of rope with 500 lb. break strength

Retrieves 100-ft. of rope in 2 minutes

Safe for use with starting battery

Specifications:

Compact 12v Electric Winch requires just 7.5" x 7.5" of deck space.

Small Craft Anchor Davit (roller) is ideal for anchors up to 25 lbs.

Sealed marine-grade Membrane Switch

10-foot heavy 14-gauge battery wire

Includes 20-Amp circuit breaker

2-Year Manufacturer’s Warranty

NOTE: Compatible with TRAC Gen 2 Anchor Winch AutoDeploy Second Switch Kit #69042

Replaces old TRAC part # T10100

Frequently Asked Questions

• What is the TRAC StrikeZone 25 AutoDeploy Anchor Winch designed for? The TRAC StrikeZone 25 AutoDeploy Anchor Winch is designed for small fishing craft using mushroom or river anchors up to 25 lb. It is suitable for boats where a 25 lb anchor and 100 feet of rope are sufficient, providing powered anchor deployment and retrieval for maintaining boat position while fishing.
• How does the AutoDeploy feature work on the TRAC StrikeZone 25 Anchor Winch? AutoDeploy automatically stops the winch when the anchor reaches the sea or lake bed. When the rope becomes tight as the boat moves, the system releases rope until the boat begins to hold, then the spool locks. You can also stop AutoDeploy by pressing any button on the switch.
• How much rope does the TRAC StrikeZone 25 Anchor Winch include? The TRAC StrikeZone 25 includes 100 feet of rope with a 500 lb break strength. The winch is designed for applications where 100 feet of rope is sufficient for the boat and anchoring conditions.
• How quickly does the TRAC StrikeZone 25 retrieve its anchor rope? The TRAC StrikeZone 25 Anchor Winch retrieves 100 feet of rope in approximately 2 minutes. Its compact 12V electric winch requires only 7.5 by 7.5 inches of deck space, making it suited to small-craft applications.
• Can the TRAC StrikeZone 25 Anchor Winch be powered by a starting battery? Yes. The TRAC StrikeZone 25 is specified as safe for use with a starting battery. It includes 10 feet of heavy 14-gauge battery wire and a 20-amp circuit breaker for its electrical installation.
• What is included with the TRAC StrikeZone 25 AutoDeploy Anchor Winch? The TRAC StrikeZone 25 includes 100 feet of rope, a small-craft anchor davit roller, 10 feet of 14-gauge battery wire, and a 20-amp circuit breaker. It also features a sealed marine-grade membrane switch and is compatible with the TRAC Gen 2 Anchor Winch AutoDeploy Second Switch Kit #69042.

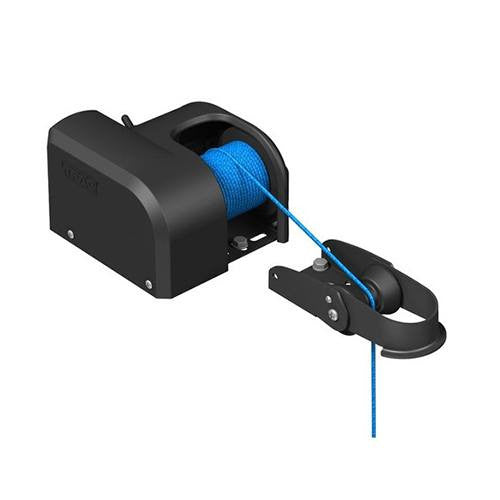

TRAC AnchorZone 20 Electric Anchor Winch

The TRAC AnchorZone 20 Anchor Winch is designed to retrieve and deploy river and mushroom anchors using anchor rope. Its power-up, power-down operation has been designed with a mechanical toggle switch installed on the winch cover. This TRAC electric anchor winch is suitable for all boats where a 20 lb. anchor and 100 ft. of rope are sufficient.

Features:

Easily hold your boat in the desired anchor zone

Anchoring made simple - Power UP/Power DOWN

Ideal for fishermen - Raise and lower your anchor with one finger

Retrieve 100 ft. of rope in 2 minutes

Includes 100 ft. of rope

Safe for use with starting battery

This Anchor Winch is designed for mushroom and river anchors up to 20 lbs. (Anchor not included)

Specifications:

12v Electric Winch

Uses only 7.5" x 7.5" space on deck

Includes 100' x 3/16" Anchor Rope with 500 lb break strength

10' Heavy duty 14-gauge battery wire

20 Amp circuit breaker included

2 Year Manufacturer's Warranty

Replaced old TRAC part # T10098

Click to Download TRAC AnchorZone 20 Anchor Winch User Manual

Frequently Asked Questions

• What is the TRAC AnchorZone 20 Electric Anchor Winch used for? The TRAC AnchorZone 20 Electric Anchor Winch is designed to retrieve and deploy river and mushroom anchors using anchor rope. It provides power-up and power-down operation and is suitable for boats where a 20 lb. anchor and 100 ft. of rope are sufficient.
• What size anchors can the TRAC AnchorZone 20 Electric Anchor Winch handle? This 12V electric anchor winch is designed for mushroom and river anchors up to 20 lbs. The anchor itself is not included with the winch.
• How much anchor rope is included with the TRAC AnchorZone 20 Electric Anchor Winch? The winch includes 100 ft. of 3/16" anchor rope with a 500 lb. break strength. The winch can retrieve 100 ft. of rope in 2 minutes.
• What electrical components are included with the TRAC AnchorZone 20 Electric Anchor Winch? The TRAC AnchorZone 20 includes 10 ft. of heavy-duty 14-gauge battery wire and a 20 Amp circuit breaker. The winch operates on 12V power and is designed for use with a starting battery.
• How much deck space does the TRAC AnchorZone 20 Electric Anchor Winch require? The TRAC AnchorZone 20 Electric Anchor Winch uses 7.5" x 7.5" of deck space. It features a mechanical toggle switch installed on the winch cover for power-up and power-down operation.
• What is included with the TRAC AnchorZone 20 Electric Anchor Winch? The TRAC AnchorZone 20 includes the electric winch, 100 ft. of 3/16" anchor rope, 10 ft. of heavy-duty 14-gauge battery wire, and a 20 Amp circuit breaker. The anchor is not included.

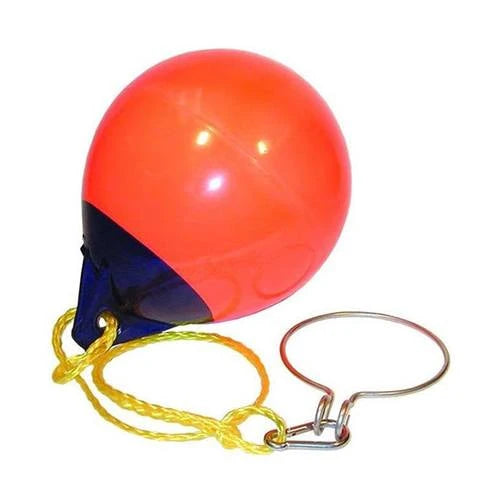

TH Marine Anchor Master - Anchor Retriever

TH Marine brings the Anchor Master Anchor Retriever. One of the oldest anchor retriever systems offered nationally. Manufactured with Superior quality U.S. manufactured components. The Anchor Retriever makes pulling the anchor out of the water so much easier. No springs, plastic parts, or device that can break or not work properly. Anchor Master brings a fool proof Anchor retriever. Choose from Twisted Nylon or Poly Line.

Includes:

12" Buoy

Stainless Steel Hook

Stainless Steel Ring

Rope (Twisted Nylon or Poly)

Handles up to 20lbs fluke style anchors

Instructions:

Slip ring around the anchor line and fasten into the clip-hook attached to the rope and buoy

Drop the Anchor Master and motor towards the anchor

Moving at a speed of 6-8 knots past the buoy will cause it to submerge until the anchor rises from the buoyancy

Once the anchor has raised into the ring the buoy will pop to the surface.

Slowly return to the buoy while picking up slack rope

Carefully lift buoy and anchor into the boat.

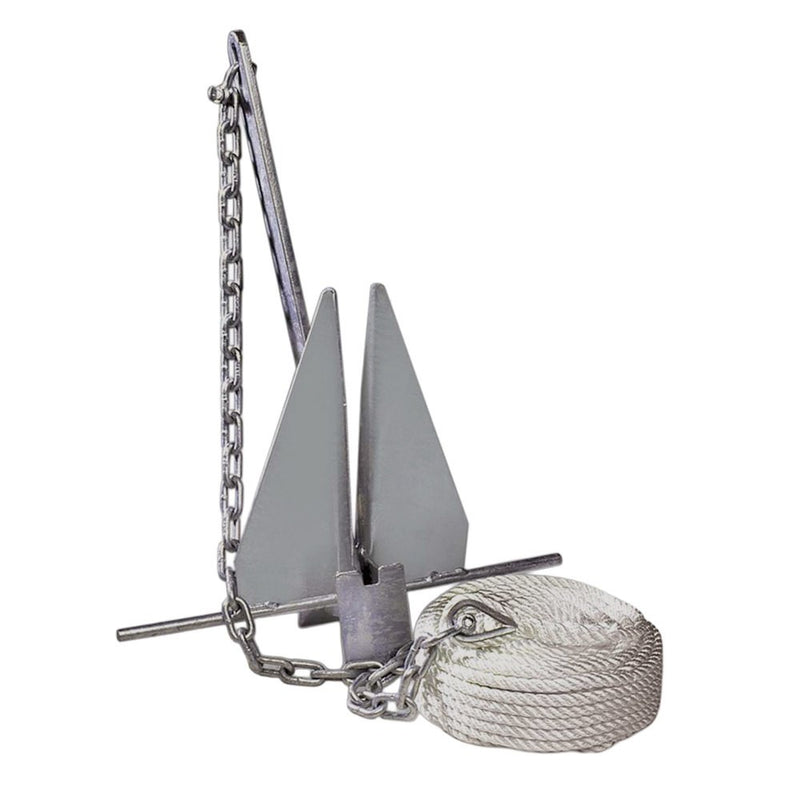

Tie Down Super Hooker Fluke Anchor Kit #8 – Complete Boat Anchor Kit

Tie Down 95095 Super Hooker Kit is a complete anchoring solution designed for reliable performance and ease of use. This all-in-one kit includes a #8 Super Hooker fluke-style anchor, 100 ft. of nylon anchor line with thimble, a 6 ft. galvanized chain, and two 5/16 in. shackles. Built for boats ranging from 16 to 24 ft., it delivers dependable holding power for secure anchoring in a variety of marine conditions.

The anchor features a durable hot-dip galvanized construction for enhanced corrosion resistance and long-term durability. Weighing just 9 lbs., it offers an ideal balance of strength and portability, making it easy to handle and deploy. Whether you're fishing or enjoying recreational boating, this kit provides a complete and efficient anchoring system you can trust.

Key Features

Complete anchoring kit includes anchor, line, chain, and shackles

#8 Super Hooker fluke-style anchor with 480 lbs. holding power

Designed for boats 16–24 ft. in length

100 ft. nylon anchor line with thimble included

6 ft. galvanized chain and two 5/16 in. shackles included

Lightweight 9 lb. anchor for easy handling and storage

Hot-dip galvanized finish for corrosion resistance and durability

Suitable for fishing, cruising, and recreational boating

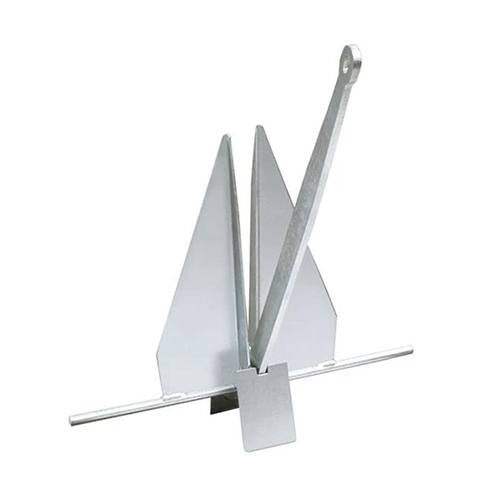

Danforth H500 Hi-Tensile Anchor

Danforth Hi-Tensile Anchors are boat anchors engineered to deliver maximum holding power and quick deep bottom penetration. Crafted with high-grade 4130 steel, each shank is heat-treated for exceptional strength while the hot-dip galvanized coating ensures long-lasting protection against corrosion. Weighing just 5 lbs., these boat anchors offer impressive holding power of 1000 lbs., making them reliable and efficient. Suitable for boat lengths ranging from 0 to 31 ft., Danforth Boat Anchors are the preferred boat accessories and boating equipment for boating enthusiasts and professionals who demand superior performance and reliability.

Features:

Easy Handling

Despite their exceptional strength, this Danforth anchor is lightweight, weighing just 5 lbs., ensuring hassle-free handling and convenient storage on board your boat.

Impressive Holding Power

With a remarkable holding power of 1000 lbs., these boat anchors provide the confidence and security you need for anchoring boats ranging from 0 to 31 ft. in length.

Deep Bottom Penetration

With their beveled design, these boat anchors ensure quick and secure penetration into the bottom, providing a reliable hold even in soft or loose seabeds.

Premium Construction

Each boat anchor features a shank made from high-grade 4130 steel, renowned for its exceptional strength and toughness, ensuring superior performance in demanding marine environments.

Unmatched Strength

A Danforth Anchor is engineered to provide unrivaled strength and durability, making this fluke anchor the ultimate choice for anchoring in challenging conditions.

Long-Lasting Protection

The hot dip galvanized coating not only enhances the boat anchor's corrosion resistance but also extends its lifespan, offering long-lasting protection against the elements.

Danforth S2000 Standard Anchor

Crafted from high-strength steel coated with a durable hot-dip galvanized finish, this S2000 Danforth Standard Anchor by Tie Down Engineering is the industry-leading boat anchor, delivering outstanding performances time and time again. With a weight of 43 lbs. and an impressive holding power of 2000 lbs., this Danforth Anchor is the ultimate choice for reliable boat anchors in various marine applications for boats ranging in size from 40 to 45 feet.

Features:

Peace Of Mind

With the Danforth Standard Anchor, you can confidently navigate the waters, knowing that your boat is securely anchored. Its reliable performance and strong holding power give you peace of mind, allowing you to enjoy your boating adventures to the fullest.

Corrosion-Resistant

This boat anchor is hot-dip galvanized, providing effective protection against corrosion and extending its lifespan.

High-Quality Construction

Manufactured with high-strength steel, this fluke anchor ensures durability and long-lasting performance, even in harsh marine environments.

Unmatched Holding Power

With a staggering 2000 lbs. holding power, this Danforth anchor delivers the strength and reliability needed for secure anchoring in diverse marine conditions.

Versatile Application

Suitable for a wide range of vessels and marine applications, whether used as pontoon boat accessories, bass boat accessories, sand anchor, beach anchor, or any other marine accessories, this boat anchor provides secure anchorage in various conditions.

Versatile Boat Compatibility

Designed for boat lengths ranging from 40-45 feet, the Danforth Standard Anchor is a versatile choice for a wide range of vessels.

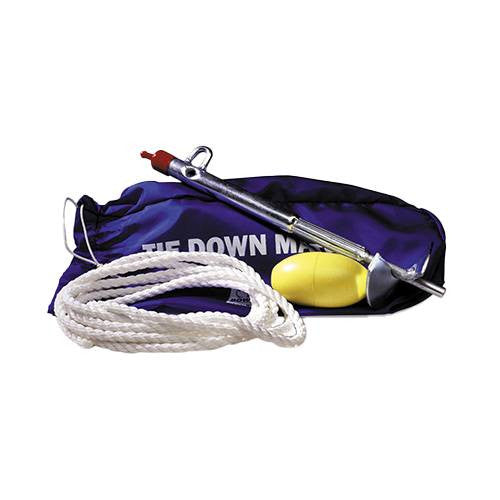

Tie Down Mate Anchor Kit

The Tie Down Mate is an anchor ideal for mooring personal watercraft or small boats. This anchor screws in easily and features a removable handle that stows away inside the anchor tube.

Includes:

Tie Down Mate Anchor

15' Anchor Line

Float

Nylon Carry Bag

Instructions:

Choose a location on the beach where you will want to secure your watercraft.

Remove the plastic cover from the anchor and lift out the installation rod.

Place the installation rod through the small hole in the top of the anchor to form a "T" handle, used to screw the Tie Down Mate anchor into the ground or beach area.

Using downward pressure, turn the anchor in a clockwise direction until the loop is at ground level, or until the anchor is secure.

Thread the rope provided or a locking cable through the loop and tie your watercraft or boat to the other end.

A float is provided for using the Tie Down Mate in shallow water where a floating tie up is desired.

Click to Download Tie Down Mate Anchor Kit Installation Instructions

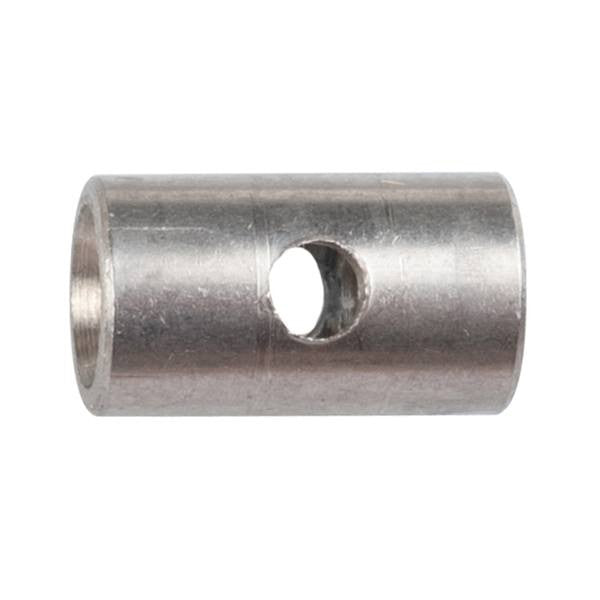

Sierra 18-3754 Cable Anchor

Sierra replacement cable anchor for Mercruiser Stern Drives. All Sierra aftermarket engine parts are manufactured to meet or exceed OEM requirements.

For R, MR, Alpha One, Gen II & Bravo Drives

Interchangeable with:

GLM

21432

Mercruiser Stern Drive

43436

Mercruiser Gen 2 Power Trim Cylinder Anchor Pin Kit by Sierra

For All Alpha One Gen II Drives.

Replaces:

Mercury - 17-815953T1

GLM - 21425

Mallory - 9-77101

Mercruiser - 17-8M0065070, 56-18541A75, 17-815953T1, 56-864641A24

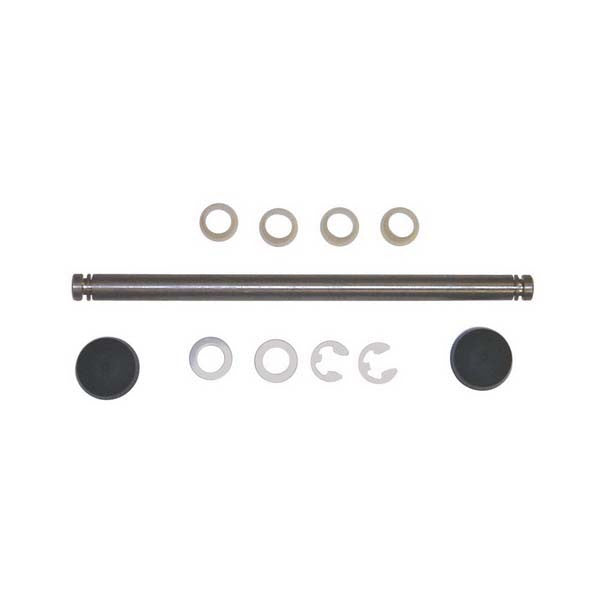

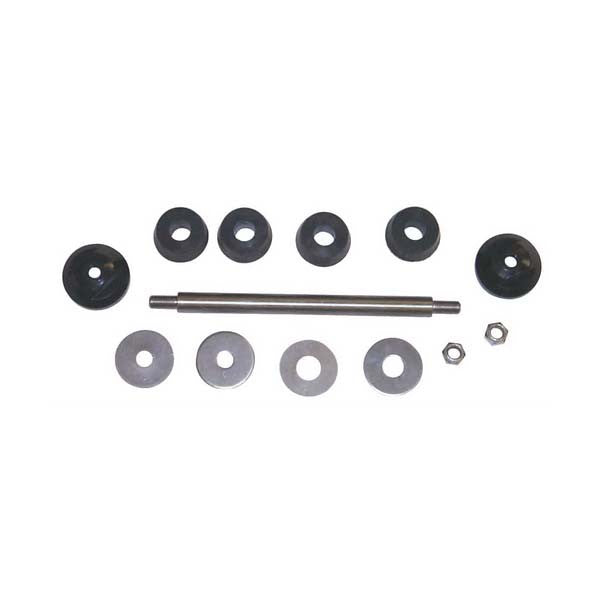

Sierra 18-2463 Trim Cylinder Anchor Pin Kit (Rear)

Sierra replacement trim cylinder anchor pin kit for Mercruiser stern Drives. Sierra aftermarket engine parts are manufactured to meet to exceed OEM requirements.

For: R/MR/Alpha One (1983-1990)

Interchangeable with:

GLM

21380

Mallory

9-77103

Mercruiser Stern Drive

17-14872A1

17-99207

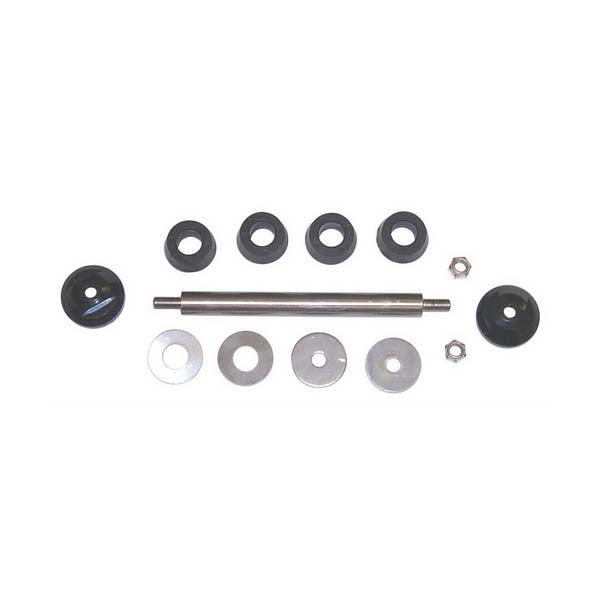

Sierra 18-2461 Mercruiser Power Trim Cylinder Anchor Pin Kit

For Bravo I, II, III (1988-02) Serial No. 6225577 and Up. Sierra aftermarket engine parts are manufactured to meet or exceed OEM requirements.

Interchangeable with:

GLM

21910

Mallory

9-77100

Mercruiser Stern Drive

17-44166T1

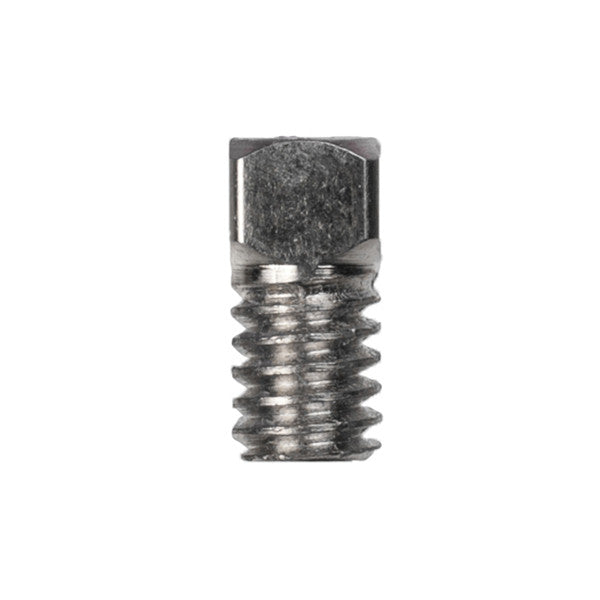

Sierra 18-2303 Mercruiser Anchor Screw Set

Sierra high-quality engine parts are designed to meet OEM specifications. For: #1R, MR, Alpha, Alpha I, Gen II & Bravo Drives

Interchangeable with:

GLM

21433

Mallory

9-72164

Mercruiser Stern Drive

10-20518

Mercury Marine

10-20518

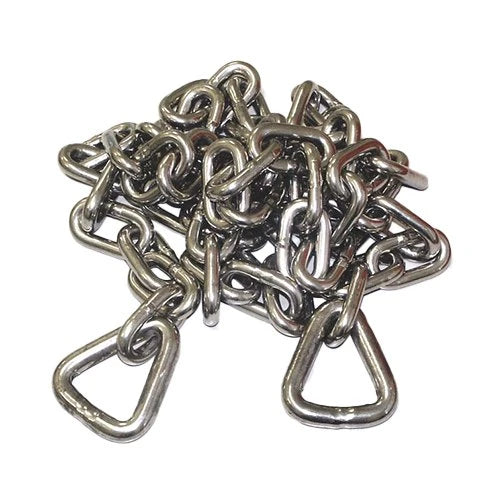

Sea Sense Polished Stainless Steel Anchor Chain

Stainless Steel Anchor Chain is super strong 5-16" chain with a polished look even after being exposed to the harshest conditions.

Features:

Working load 2000lbs

Breaking strength 8000lbs

5-16" x 6'
