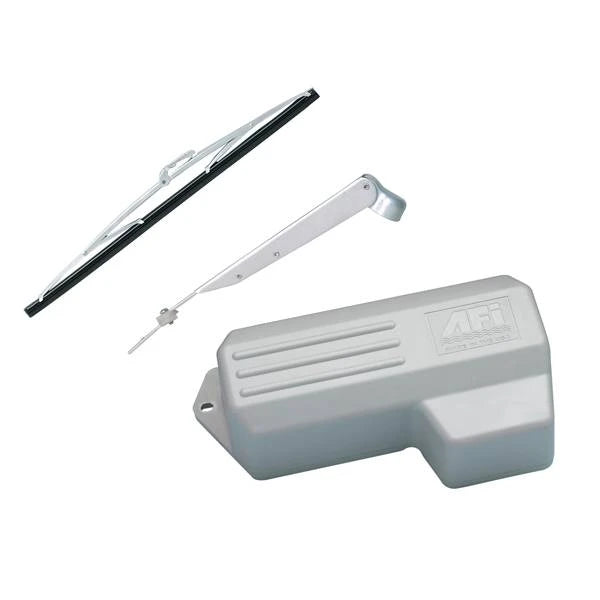

AFI 1000 Wiper Kit - 80 Degree Sweep Set

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree

0.625" diameter shaft (16 mm)

12 volt heavy-duty motor with anti-rotation drive shaft

Knurled drive shaft and solid brass arm drive nut

Coast to park with adjustable right or left self parking

Retail version includes 5 amp fuse and holder (on/off switch not included)

RF shielded circuitry

Weight: 1.75 lbs

Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)

Measures approximately 6.625" L x 3.375"W x 2" D

Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)

Stall current: 9.8-10.0 amps

No load current: 0.8-1.2 amps

Frequently Asked Questions

• What is the AFI 1000 Wiper Kit - 80 Degree Sweep Set used for? The AFI 1000 Wiper Kit - 80 Degree Sweep Set is a 12-volt marine wiper motor system designed to power 18-inch Deluxe arm and blade combinations at an 80-degree or smaller sweep. It can also operate 16-inch Deluxe arm and blade combinations with a 110-degree sweep.
• What sweep angles can the AFI 1000 Wiper Motor use? The AFI 1000 Wiper Motor comes factory preset for an 80-degree or 110-degree sweep and can be adjusted to 50, 65, 80, or 110 degrees. The 80-degree configuration is designed for an 18-inch Deluxe arm and blade combination, while the 110-degree setting supports a 16-inch combination.
• What are the electrical specifications of the AFI 1000 Wiper Kit? The AFI 1000 Wiper Motor operates on 12 volts and has a stall torque of 55 in-lbs, stall current of 9.8 to 10.0 amps, and no-load current of 0.8 to 1.2 amps. The retail version also includes a 5-amp fuse and holder, but an on/off switch is not included.
• Does the AFI 1000 Wiper Motor have adjustable parking? Yes. The AFI 1000 Wiper Motor features coast-to-park operation with adjustable right- or left-side self-parking. This allows the motor's parking position to be configured for the desired side.
• What shaft lengths are available for the AFI 1000 Wiper Kit? The AFI 1000 Wiper Kit is available with either a 1.5-inch or 2.5-inch shaft length. The listed shaft length includes 0.5 inch of knurled arm fitting. The motor has a 0.625-inch (16 mm) diameter shaft and measures approximately 6.625 inches long by 3.375 inches wide by 2 inches deep.

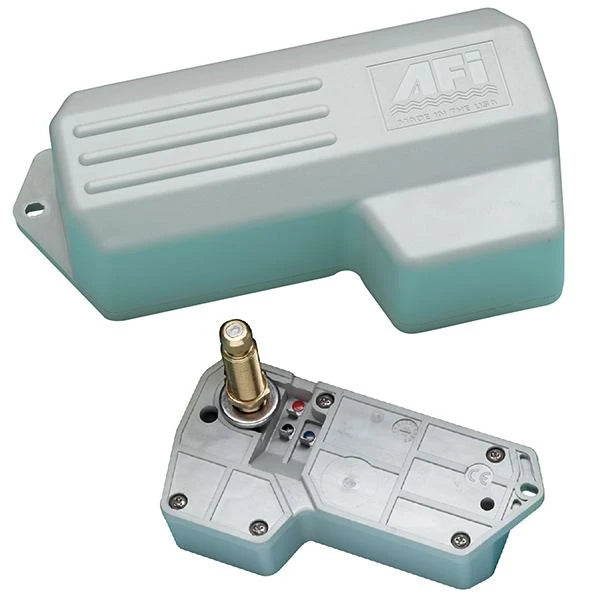

AFI 1000 Waterproof Wiper Motor w/ 1.5" Shaft

The AFI 1000 Waterproof Wiper Motor is a heavy-duty wiper motor capable of powering 18" deluxe arm and 18" deluxe combination at sweep sets of 80 degrees or less, or 16" deluxe arm and 16" deluxe blade combinations at a swwp set of 110 degrees. This motor features a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic.

Specifications:

12V

.625" diameter shaft

1.5" Shaft length

Stall torque: 55 in-lbs

Stall current: 9.8-10.0 amps

No load current: 0.8-1.2 amps

6.625" L x 3.375" W x 2" D

Features:

Heavy-duty motor with anti-rotation drive shaft

Knurled drive shaft and solid brass arm drive nut

Coast to park with adjustable right or left self parking

RF shielded circuitry

Options Available:

80° Sweep

110° Sweep

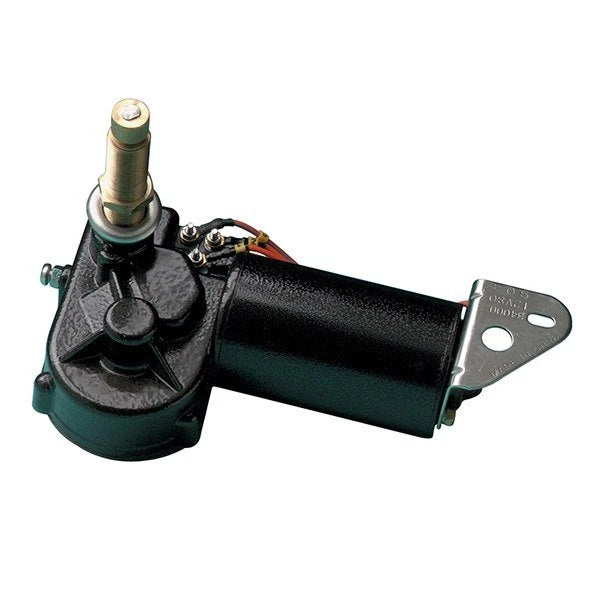

AFI MRV Wiper Motor w/ 2.5" Shaft

The AFI MRV Wiper Motor is a heavy-duty wiper motor featuring a corrosion-resistant casing and stainless steel fasteners and mounting bracket. This motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degrees or less. Although this is a two speed motor, it can be operated as a one speed.

Specifications:

12V

Factory pre-set sweep of 80°

.625" diameter shaft

2.5" shaft length

Stall torque: 109 in-lbs

Stall current: 11.5-13.0 amps

No load current: 0.5-1.2 amps

Features:

Corrosion-resistant casing

Heavy-duty motor with right angle drive

Solid brass knurled drive nut with brass and stainless steel drive shaft

Adjustable right or left self parking, coast to park

Stainless steel fasteners and mounting bracket

Options Available:

80° Sweep

110° Sweep

Product Features: AFI Standard Wiper Motor with 11.5" Deluxe stainless steel curved blade and Deluxe adjustable (6.75" to 10.5") stainless steel arm Deck Mount version includes deck mount adapter kit Maximum Current Draw: 2 amps

Kit includes STD wiper motor (part number 35040), 7-1/2' adjustable stainless steel arm (part number 33002), and 11" stainless steel straight blade (part number 33001)

Motor is not waterproof or water-resistant, and should only be mounted in interior locations

Corrosion-proof aluminum alloy case with black crackle finish

Motor has 2-1/2 shaft length and 3/8" shaft diameter

Designed for windshield frame mount installation

80 degree sweep set (can be adjusted to 110 degree sweep)

Adjustable right or left self-parking

12 volt motor with heavy-duty gear train

Maximum current draw: 2 amps

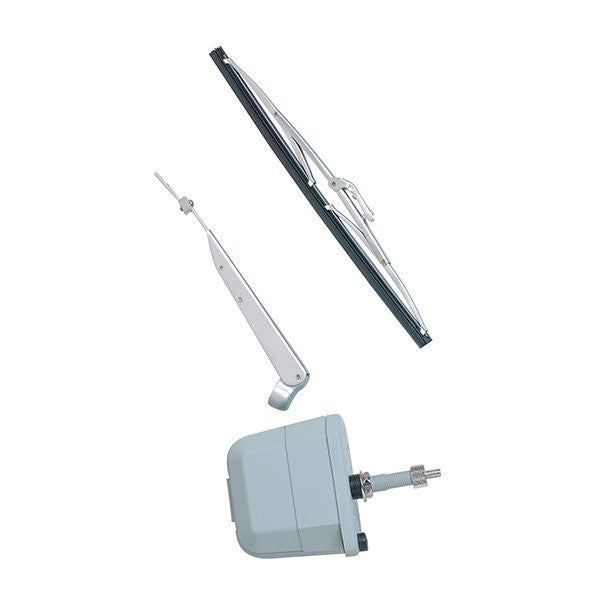

AFI 500 Wiper Kit - 80 Degree Sweep Set

The AFI 500 Wiper Motor Kit consists of a waterproof standard wiper motor, a stainless steel curved wiper blade and an adjustable stainless steel arm. AFI's 500 Wiper Motor is enclosed in a waterproof, thermoplastic housing, and is designed for exterior installation. Draws 2 AMPs max power, and features self-parking wipers that return to the off position automatically. This motor is a standard motor, and is designed for light duty use. Runs on 12V power.

The 11.5" deluxe stainless steel curved wiper blade works well on curved or flat windshields and features a marine-grade silicone squeegee.

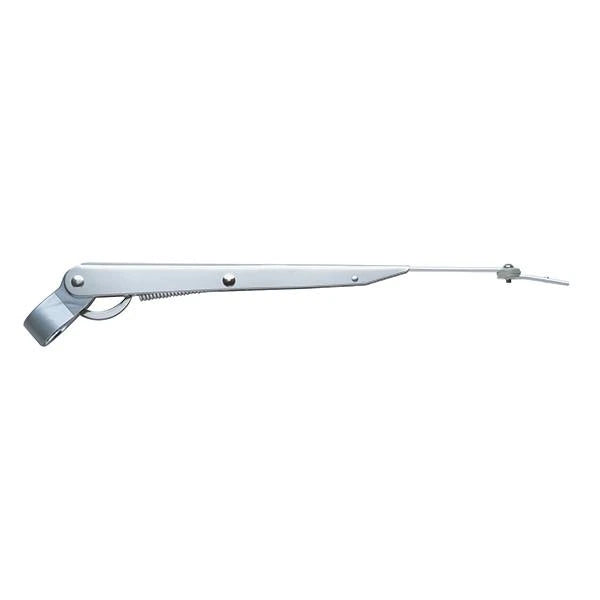

The deluxe adjustable stainless steel arm has an articulating/bend-back feature, and is designed for use on standard and heavy-duty motors.

Kit Includes:

500 Waterproof Wiper Motor

11.5" Deluxe Stainless Steel Curved Wiper Blade

Deluxe Adjustable (6.75" - 10.5") Stainless Steel Arm

Features:

12V

80 Degree Sweep

Self-parking

Windshield Mount 0.5" shadt diameter

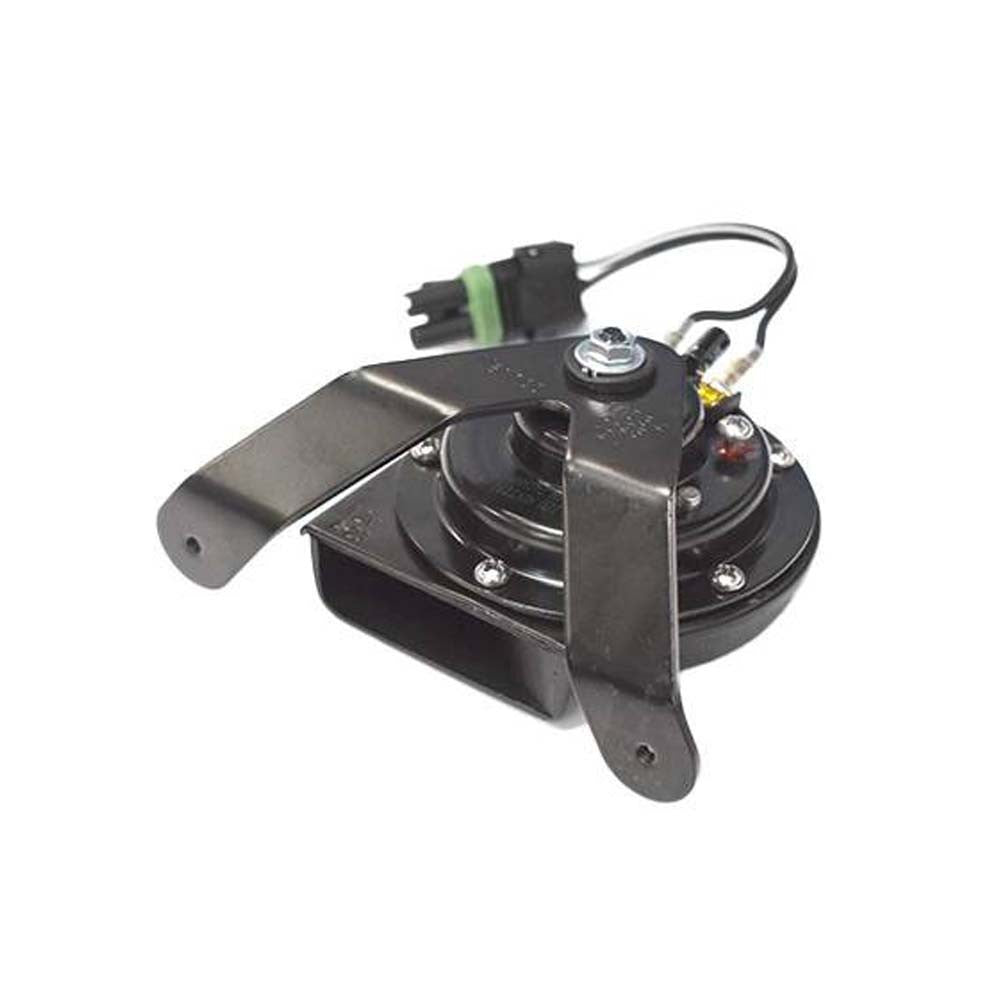

AFI Mini Hidden Boat Horn with Bracket

AFI brings the mini hidden boat horn with bracket, a durable boat horn that looks good on any vessel. Critical components such as the trumpets, motor cover, diaphragms, assembly and mounting hardware are all made from stainless steel to hold up to harsh marine environments.

Features:

Type 304 Stainless steel diaphragm

Dimensions 3 1/4"W x 1 3/4"H x 3"L

Maximum amp draw: 3 amps

dB(A) rating: 105 at one meter

Fundamental frequency: 440+/-20

Includes grill mounting bracket

Not designed for installation in exposed areas.

Frequently Asked Questions

• What is the AFI Mini Hidden Boat Horn with Bracket used for? The AFI Mini Hidden Boat Horn with Bracket is a marine boat horn designed to provide an audible signal on a vessel. It has a 105 dB(A) rating at one meter and a fundamental frequency of 440+/-20. Its compact design measures 3 1/4"W x 1 3/4"H x 3"L.
• What is the AFI Mini Hidden Boat Horn with Bracket made from? Key components of the AFI Mini Hidden Boat Horn with Bracket are constructed from stainless steel, including the trumpets, motor cover, diaphragms, assembly, and mounting hardware. The diaphragm is specifically made from Type 304 stainless steel.
• What are the electrical specifications of this AFI boat horn? The AFI Mini Hidden Boat Horn with Bracket has a maximum amp draw of 3 amps. Before installation, verify that the horn's electrical requirements are compatible with your boat's electrical system.
• What mounting hardware is included with the AFI Mini Hidden Boat Horn? The AFI Mini Hidden Boat Horn with Bracket includes a grill mounting bracket. The product description does not specify additional installation hardware beyond the included mounting bracket, so verify the installation requirements for your particular application before use.
• Can the AFI Mini Hidden Boat Horn with Bracket be installed in an exposed area? No. This boat horn is specifically not designed for installation in exposed areas. Select an installation location that complies with this restriction and follow the applicable installation instructions for your vessel.

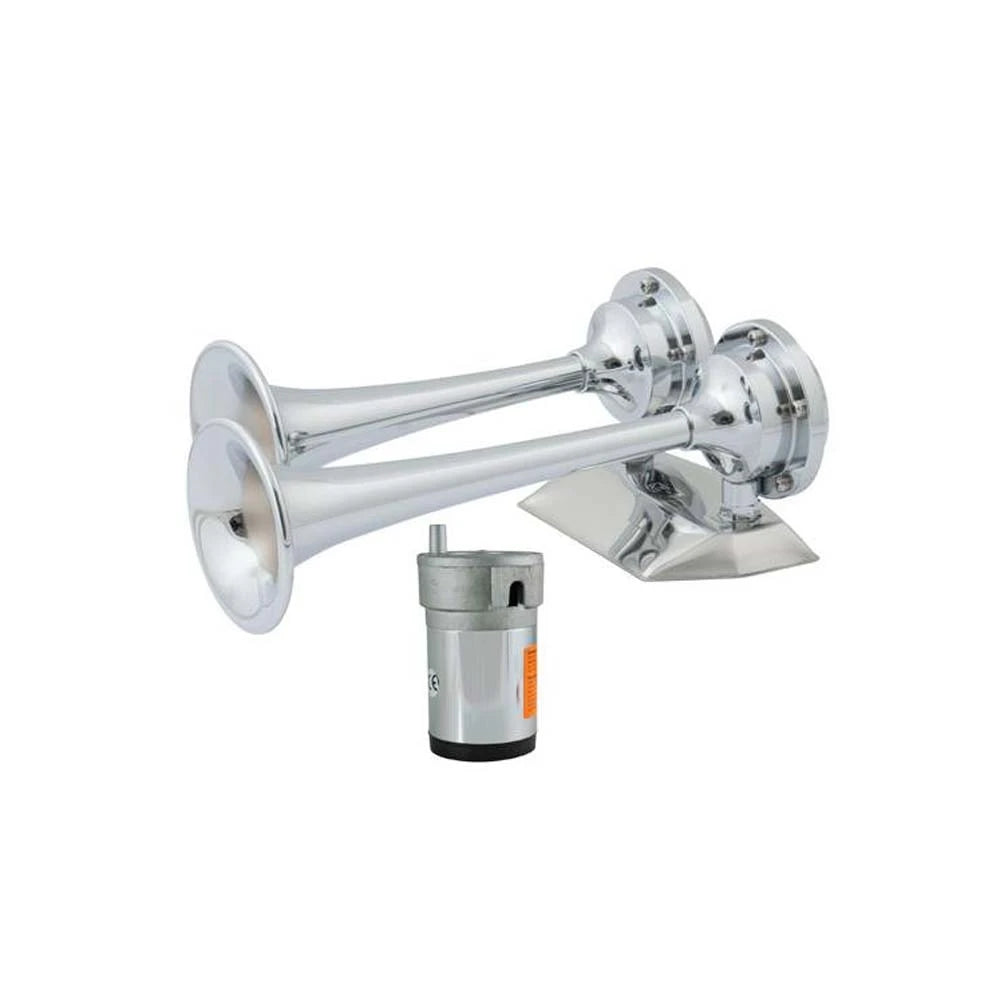

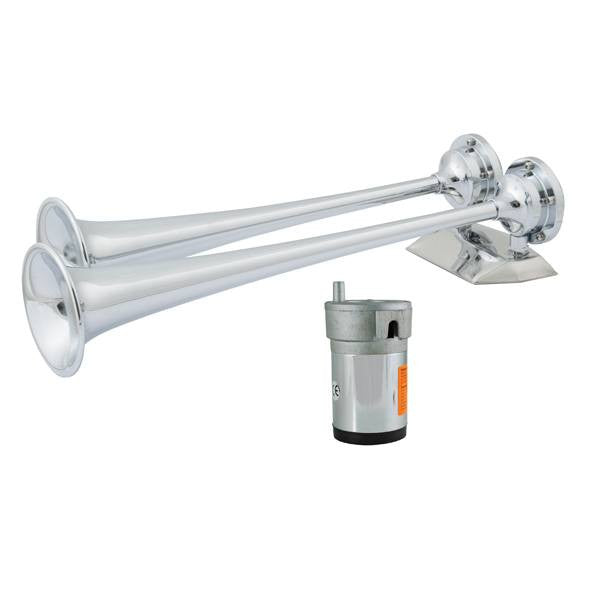

Dual Trumpet Chrome Brass Mini Air Boat Horn Kit with Compressor

AFI Dual Trumpet Chrome Brass Mini Air Boat Horn Kit looks good on any boat. Meets ABYC/NMMA regulations on boats 66 feet or less. AFI Air Horns can produce sounds level ranges between 120 and 127 dB. The 12/24 Volt compressors are both CE listed. Solid brass construction allows your horn to hold up to Marine environments.

Product Features:

Chrome Plated

Solid Brass Construction

12 Volt compressor

Includes: Compressor, air tubing, fittings, and hardware

Non-corrosive Lexan Polycarbonate Diaphragm

Maximum amp draw: 12 Volt: 20 Amps; 24 Volt : 10 Amps

9-11 PSI

Dimensions: 9.5" L x 5" W x 3.75" H

Fundamental Frequency: 630 +/- 15 Hz, 525 +/-

Click here to download AFI Dual Trumpet Chrome Brass Mini Air Boat Horn Kit Manual

Frequently Asked Questions

• What is the Dual Trumpet Chrome Brass Mini Air Boat Horn Kit with Compressor used for? The Dual Trumpet Chrome Brass Mini Air Boat Horn Kit with Compressor provides an air-powered audible signal for boats. The kit features chrome-plated, solid brass dual trumpets and is designed to meet ABYC/NMMA regulations on boats 66 feet or less.
• How loud is the Dual Trumpet Chrome Brass Mini Air Boat Horn Kit? The AFI Dual Trumpet Chrome Brass Mini Air Boat Horn Kit can produce sound levels ranging from 120 to 127 dB. Its listed fundamental frequencies are 630 +/- 15 Hz and 525 +/-.
• What is included with the Dual Trumpet Chrome Brass Mini Air Boat Horn Kit? The kit includes the compressor, air tubing, fittings, and hardware needed for the listed horn assembly. The product description specifies a 12 volt compressor and chrome-plated, solid brass construction for the dual trumpets.
• What are the power requirements for the Dual Trumpet Chrome Brass Mini Air Boat Horn Kit? The kit uses a 12 volt compressor, while both 12 and 24 volt compressors are identified as CE listed. Maximum amp draw is listed as 20 amps for 12 volts and 10 amps for 24 volts.
• What are the dimensions of the Dual Trumpet Chrome Brass Mini Air Boat Horn Kit? The Dual Trumpet Chrome Brass Mini Air Boat Horn Kit measures 9.5 inches long by 5 inches wide by 3.75 inches high. The compressor operates at 9-11 PSI.
• Is the Dual Trumpet Chrome Brass Mini Air Boat Horn Kit designed for marine environments? Yes. The dual trumpets use solid brass construction, and the product description states that this construction allows the horn to hold up to marine environments. The horn also features a non-corrosive Lexan polycarbonate diaphragm.

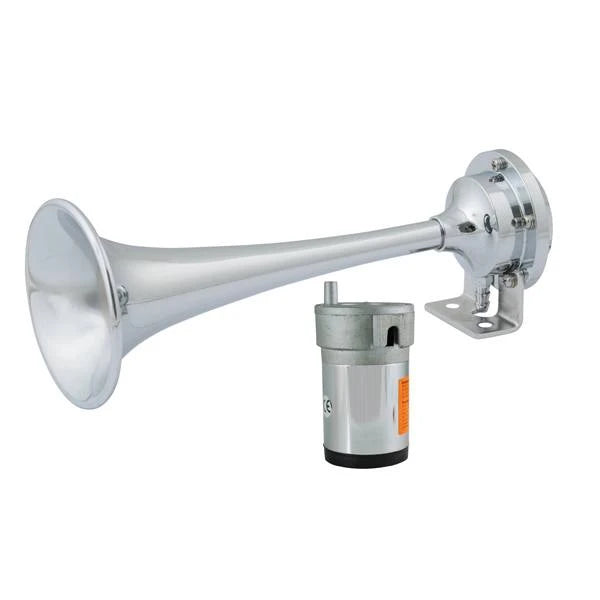

Single Trumpet Chrome Brass Mini Air Boat Horn Kit with Compressor

AFI Single Trumpet Chrome Brass Mini Air Boat Horn Kit looks good on any boat. Meets ABYC/NMMA regulations on boats up to 66 feet in length. AFI Marine air horns produce sound levels ranging between 120 and 127 dB. The 12/24 Volt compressors are both CE listed.

Product Features:

Max Amperage Draw: 12 Volt: 20 Amps; 24 Volt : 10 Amps

dB Rating: 126 at one meter

1/3 octave band

Dimensions: 9.5" L x 3.5" W x 3.5" H

Fundamental Frequency: 630 +/- 15 Hz

Non Corrosive Lexan polycarbonate Diaphragm

Click here to download AFI Single trumpet Chrome Brass Mini Boat Horn Kit Manual

Frequently Asked Questions

• What is the Single Trumpet Chrome Brass Mini Air Boat Horn Kit with Compressor used for? The Single Trumpet Chrome Brass Mini Air Boat Horn Kit with Compressor provides an air horn for boats. The AFI Marine air horn produces a sound level of 126 dB at one meter and is designed to meet ABYC/NMMA regulations for boats up to 66 feet in length.
• What voltage does the Single Trumpet Chrome Brass Mini Air Boat Horn Compressor use? The kit is available with a 12-volt or 24-volt compressor. The maximum amperage draw is 20 amps for the 12-volt version and 10 amps for the 24-volt version.
• How loud is the AFI Single Trumpet Chrome Brass Mini Air Boat Horn? The AFI Marine air horn has a listed sound level of 126 dB at one meter. The product description states that AFI Marine air horns produce sound levels ranging between 120 and 127 dB.
• What are the dimensions of the Single Trumpet Chrome Brass Mini Air Boat Horn? The Single Trumpet Chrome Brass Mini Air Boat Horn measures 9.5 inches long by 3.5 inches wide by 3.5 inches high.
• What is the fundamental frequency of the AFI Single Trumpet Air Boat Horn? The AFI Single Trumpet Air Boat Horn has a fundamental frequency of 630 +/- 15 Hz and uses a 1/3 octave band. It also features a non-corrosive Lexan polycarbonate diaphragm.

Dual Trumpet Chrome Brass Air Boat Horn Kit with Compressor

AFI's Dual Trumpet Chrome Brass Air Boat Horn Kit with Compressor looks good on any boat. This air marine horn meets ABYC and NMMA regulations on boats up to 66 feet in length. Produces sound levels ranging from between 120 and 127 dB. Runs on 12V

Product Features:

12 Volts

Sounds level range : 120-127 dB

ABYC/NMMA regulations met on vessels 66 feet and under

dB Rating: 121 at one meter

1/3 octave band

Click here to download AFI Dual Trumpet Air Boat horn Installation Instructions

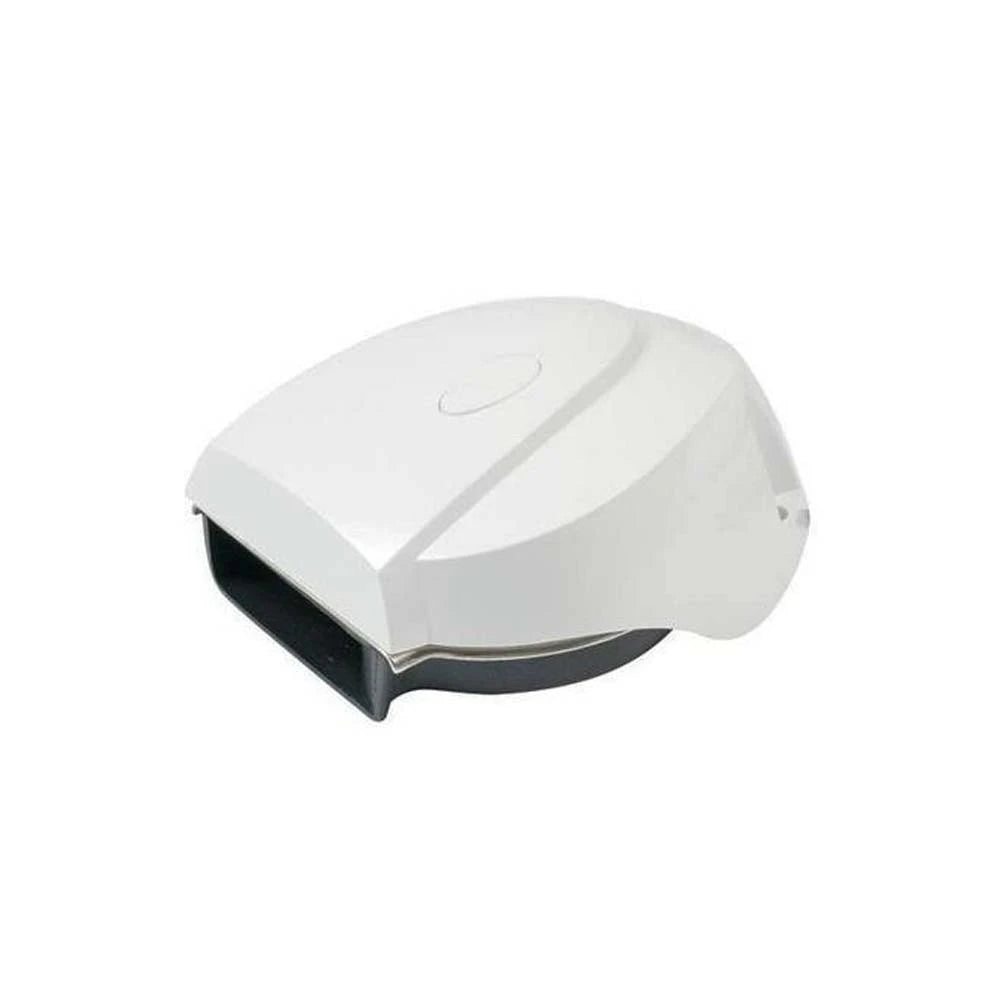

White Mini Blast Compact Electric Boat Horn

AFI brings the Mini Blast Compact Electric Boat Horn. Coming in a white casing that makes this electric marine horn that looks good on any boat. The plastic cover features non corrosive and long lasting protection of the inner mechanics of the horn. The sound unit is sealed within the stainless steel diaphragm.

Features:

Non Corrosive & Long Lasting Plastic Cover

Sealed sound unit

Stainless steel diaphragm

Maximum amperage draw : 3 Amps

Fundamental frequency: 440 Hz

Dimensions: 4-3/8" L x 3-3/8" W x 2" H

AFI Phase II Drop-In Hidden Boat Horn w/ Black & White Grills

The AFI Phase II Drop-In Hidden Boat Horn is a compact marine horn featuring an authentic marine sound. This Marine horn has a simple, drop-in installation and mounts from the outside. Comes with two screw-on grills - black and white. Grills have water resistant liners, which keep water out but allow sound through. Although compact, this horn has a new louder dB(A) rating of 111 at one meter.

Installation: 2.75" diameter hole x 1" deep.

Features:

Authentic marine sound

Grills have water-resistant fabric liners

Mounts from the outside

Grill screws on for easy install

Easy retrofit

Specifications:

Amps: 4 amps

12V

dB(A) rating: 111 dB at one meter

Frequency: 370 ± 20Hz

Click here to download AFI Phase II Drop In Hidden Boat Horn specifications

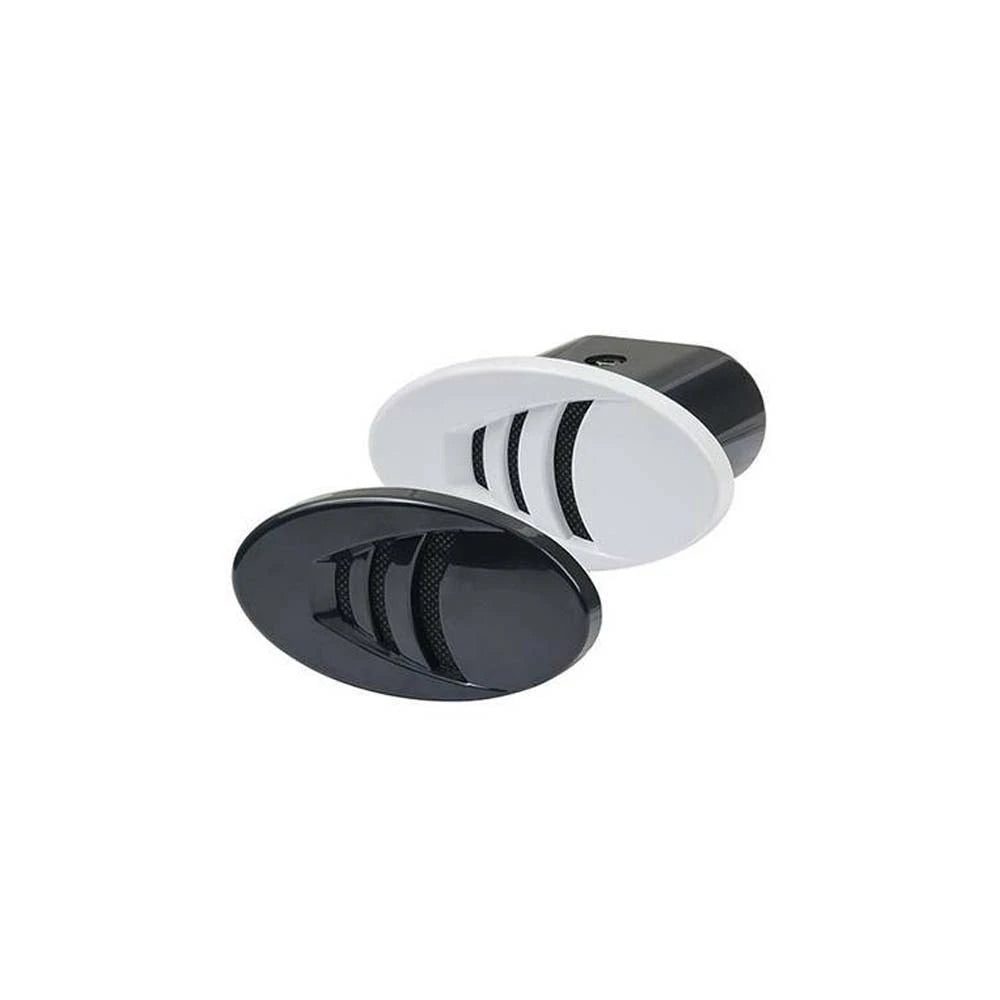

AFI Drop-In Hidden Boat Horn w/ Black & White Grills

The AFI Drop-In Hidden Horn is a compact, easy to install marine horn. This horn mounts from the outside, and includes two grills -white and black- made of high-quality ABS plastic. Although small, this horn is capable of 107db loudness. The liner of this horn is made of weatherproof fabric, which lets sound through, but keeps water out.

Prewired for a 12V installation.

Space Required: 2" H x 3-3/8" W x 3-1/4" D

Features:

Simple, drop-in installation

Stylish snap-on grill with water-resistant fabric

Authentic marine sound

Easy aftermarket retrofit

Specifications:

Amps: 4

Frequency: 370 ±20Hz

dB(A) Rating: 107 at one meter

12V

Meets ABYC specs for boats up to 12 meters.

Click here to download AFI Drop-In Hidden Boat Horn Specifications

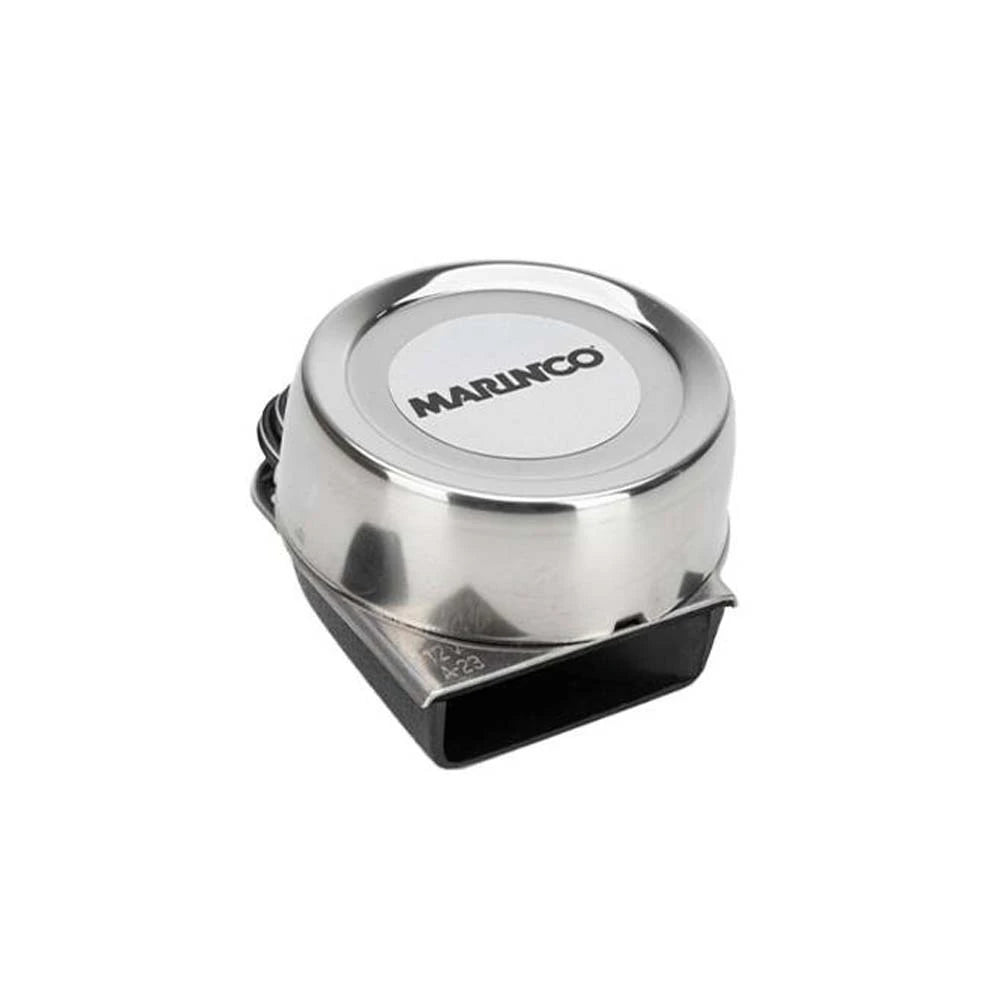

Stainless Steel Mini Compact Electric Boat Horn

This Mini Compact electric boat horn by Marinco is cased in type 304 stainless steel to give amazing protection from marine environments. Uses 12 volts and has a maximum Amperage draw of 3 amps.

Features:

Mini electric boat horn.

12V

Type 304 stainless steel cover

Diaphragm and mounting bracket

Dimensions 3"L x 31/4W x 13/4"H

Maximum Amp draw: 3 Amps

DBA rating: 106 at one meter.

Click here to download AFI Stainless Steel Mini Compact Electric Boat Horn Specs

Click here to download AFI Stainless Steel Mini Compact Electric Boat Horn Installation Instructions

Frequently Asked Questions

• What is the Stainless Steel Mini Compact Electric Boat Horn used for? The Stainless Steel Mini Compact Electric Boat Horn by Marinco is a compact electric boat horn designed for marine applications. It operates on 12 volts, has a maximum amperage draw of 3 amps, and produces a 106 dBA rating at one meter.
• What is the Stainless Steel Mini Compact Electric Boat Horn made from? The horn has a Type 304 stainless steel cover designed to provide protection from marine environments. The product also includes a diaphragm and mounting bracket.
• What are the electrical specifications of the Marinco Mini Compact Electric Boat Horn? The Marinco Mini Compact Electric Boat Horn operates on a 12V electrical system and has a maximum amp draw of 3 amps. Verify that these electrical specifications are compatible with your boat before installation.
• How loud is the Stainless Steel Mini Compact Electric Boat Horn? The Stainless Steel Mini Compact Electric Boat Horn has a 106 dBA rating at one meter. This specification indicates the sound level measured at the stated distance.
• What are the dimensions of the Marinco Mini Compact Electric Boat Horn? The Marinco Mini Compact Electric Boat Horn measures 3 inches long by 3 1/4 inches wide by 1 3/4 inches high. Its compact dimensions make the available mounting space an important consideration before installation.

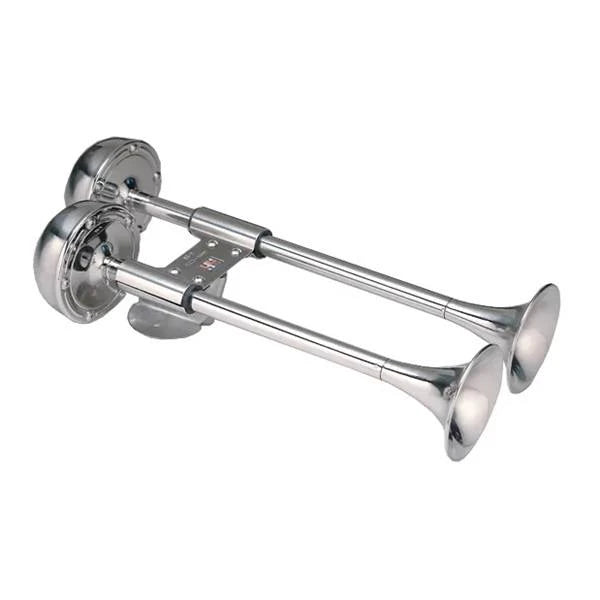

Stainless Steel Dual Trumpet Electric Boat Horn

AFI Stainless Steel Dual Trumpet Electric Boat Horn looks good on any vessel. The compact design allows this horn to be installed in smaller spaces. Exterior is made of stainless steel with the interior diaphragm is made of type 304 stainless steel to keep the inner workings protected.

Features:

Stainless Steel Exterior

12 Volt

Maximum Amperage Draw: 7 Amps

Dimensions: 16" L x 7.5" W x 4" H

Type 304 Stainless Steel Diaphragm

dB Rating: 110 at one Meter

Fundamental Frequency: 420 +/- 20 Hz, 370 +/- 20 Hz

Click here to download AFI Compact Dual Trumpet Electric Horn Manual

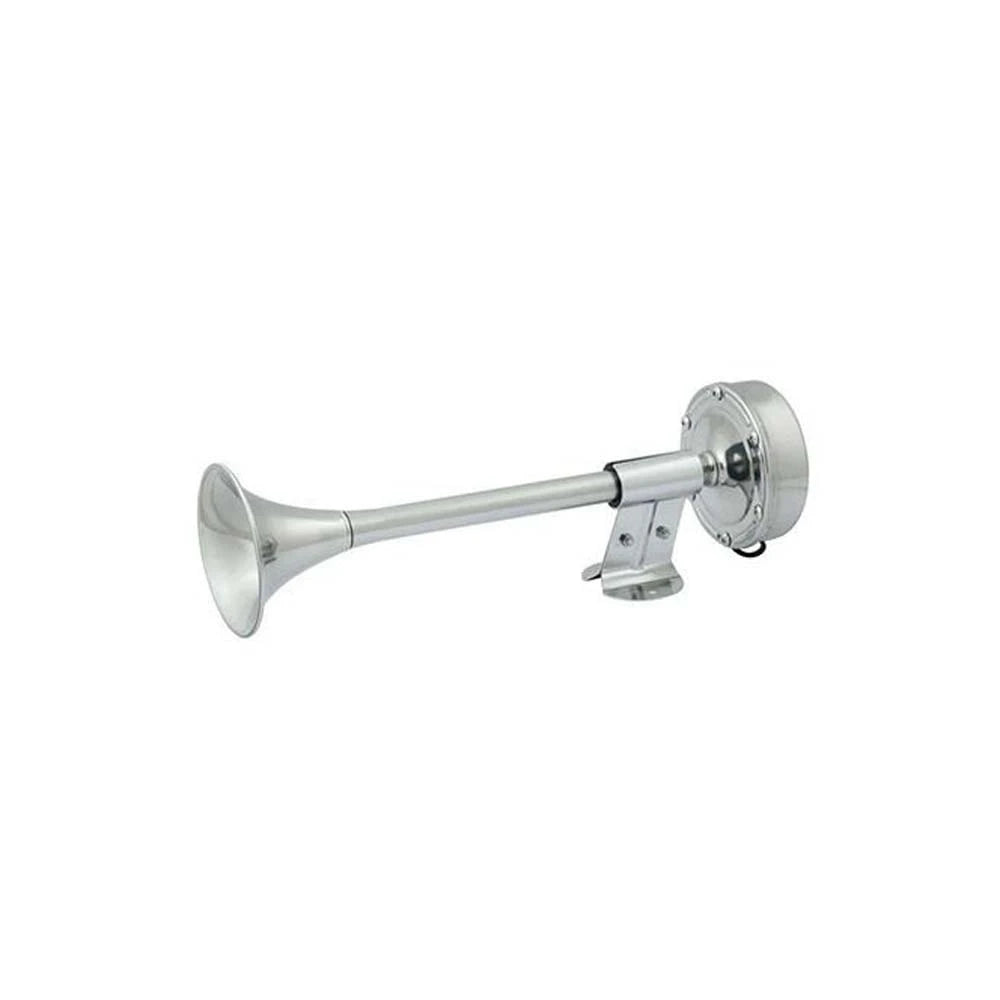

Stainless Steel Single Trumpet Electric Boat Horn

AFI brings the Stainless Steel Single Trumpet Electric Boat Horn, made for smaller vessels in mind. The exterior is constructed completely from stainless steel while the diaphragm is made of type 304 stainless steel to ensure your boat horn holds up to harsh marine environments.

Features:

12 Volt

Max Amperage Draw : 3.5 Amps

dB Rating: 108 at one meter

Fundamental frequency: 420 +\- 20 Hz

Dimensions: 14" L x 3.5" W x 4" H

Stainless steel exterior

Type 304 stainless steel diaphragm

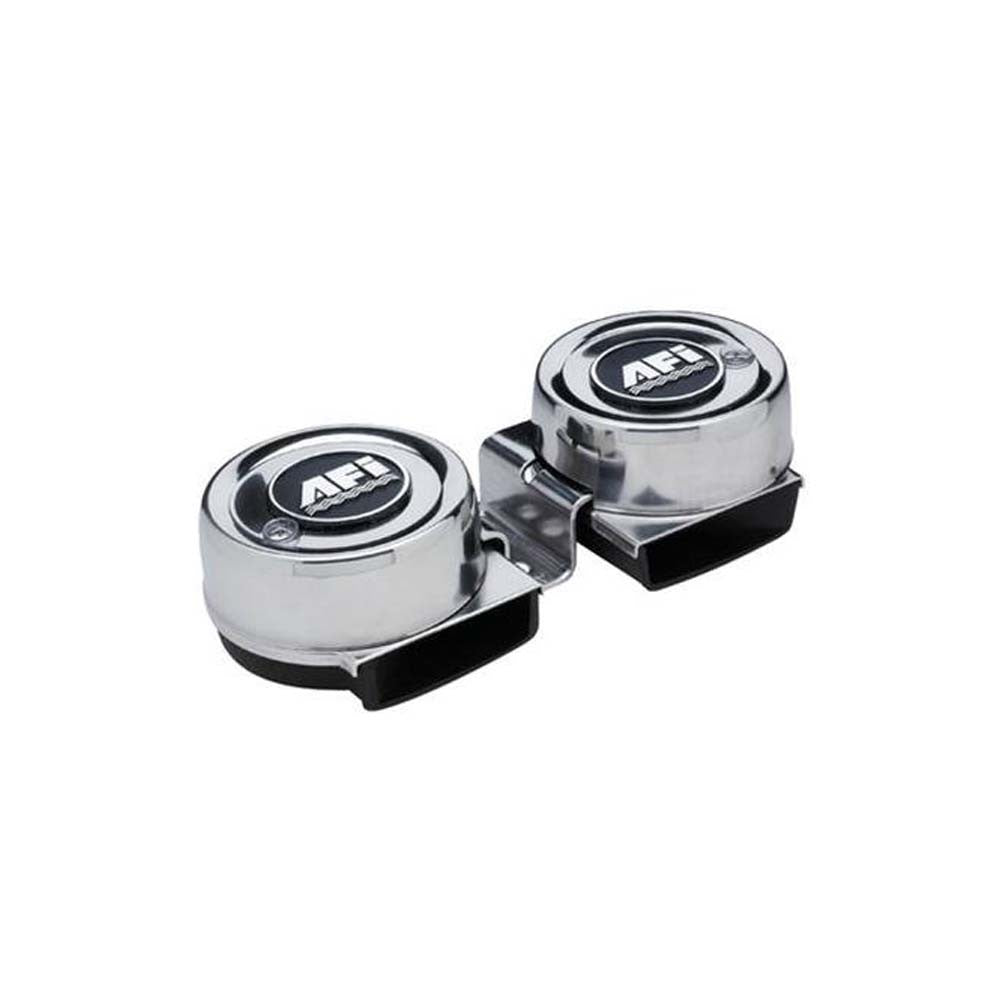

AFI/Marinco Stainless Steel Mini Twin Electric Boat Horn

AFI brings a stainless steel Mini Twin Electric Boat horn that looks good on any boat. Totally sealed sound unit with type 304 stainless steel covers, diaphragms and mounting bracket.

Features:

dB Rating: 109 at one meter

Operates on 12 Volts

Sealed sound units

Covered in type 304 Stainless Steel

Max Amperage draw: 6 amps

Dimensions: 3" L x 8" W x 1.75" H

Click here to download AFI Stainless Steel Mini Twin Electric Boat horn manual
