Uflex USA 175HP OR LESS FRT MT CYL1

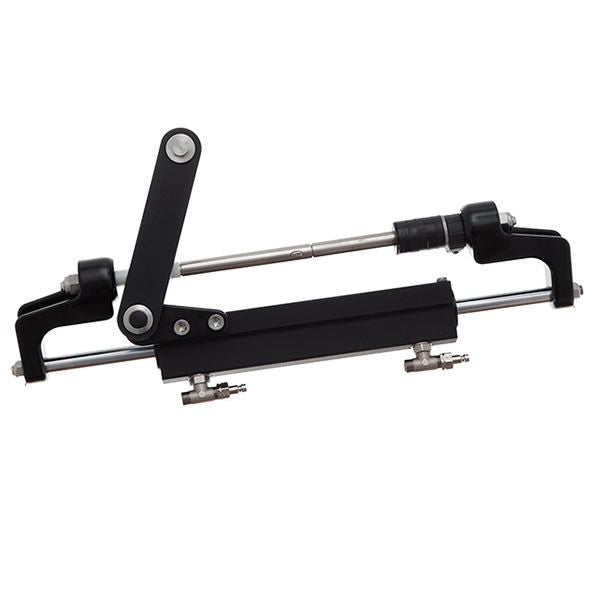

UFlex UC95-OBF/1 Front Mount Hydraulic Cylinder

This front mount hydraulic cylinder is recommended for use with outboard engines 175HP total. Featuring a high resistance stainless steel connection bolt and replaceable cylinder end caps for a long working life. Designed for balance, the number of wheel turns lock-to-lock is equal port to starboard. The split and pinned cylinder mounting rod along with adjustable boss style fittingsmakes for easy installation. The bushings prevent friction with the engine tilt tube. It is not recommended to you this hydraulic cylinder in racing applications and where the boat speed exceeds 55 mph (48 knots).

Product Details:

Front Mount

Outboards up to 175HP

Volume: 95cc - 5.8 cu.in.

Output Force: 613 lbs (278 kg)

Internal Diameter: 1.18" (30mm)

Stroke: 7.3" (186 mm)

Fittings for High Pressure Flex Hose: 3/8"

Bleed Fittings: DN5 Quick Connect

Click here for UFlex UC95-OBF Front Mount Hydraulic Cylinder

Application Information:

Mercury

100-115-150 EFI 2S 1991 - 2007

50-75-90 2S 1990 - 2008

125-135-150-175 Optimax 2S 2004 - 2018

40-50-60 EFI 4S 2004 - Present

75-80-90 EFI 4S 2000 - Present

100-115-150 EFI 4S 2007 - Present

175-V6 Fourstroke 2018 - Present

Evinrude

E40-E50-E55-E60 2S 2004 - 2020

E75-E90 2 Stroke 2004 - 2020

E115-E130-E135 2 Stroke V4 1995 - 2020

E150-175 2 Stroke V6 1995 - 2020

Yamaha

60-70 2S 1984 - 2008

75C -90 2S 1998 - 2008

115C-130B-150F 2S 1990 - 2008

150-175 HPDI VMAX 2S 2000 - 2007

F60-F75-F80 EFI 4S 1999 - 2007

F90-F100-F115-F150 EFI 4S 1999 - 2007

F115-F150-F175 L4 4S 2004 - Present

Honda

BF75-80-90-100 4S 1995 - Present

BF115A 4S 2009 - Present

BF135-150 4S 2005 - Present

BF175 4S 2001 - Present

Suzuki*

DF70-80-90 4S 1998 - Present

DF100-115-140 4S 2008 - Present

FD150-175 4S 2006 - Present

Tohatsu/Nissan

115-120-140 2S 2004 - Present

70-90-115 TLDI 4S 2004 - Present

BFT60-75-90-100 4S 2015 - Present

BFT115-150 4S 2015 - Present

MFS 50-60-75-90-100-115 4S 2018 - Present

Selva

80 Portofino/Tigershark 2S 1995 - 2008

150 WHITE SHARK 2S 2001 - 2007

100EFI Marline-115 EFI Narwhal 2001 - 2007

100-150EFI Killer Whale 4S 2000 - Present

Johnson

BJ90-115-140 4S 2001 - 2007

BJ70 4S 2001 - 2007

J90-115 V4 2S 1995 - 2007

J150-175 V6 2S 1995 - 2007

Neander Shark

DTORQUE 111 2020 - Present

*Suzuki engines built from 1998 - 2008 installing a UC95-OBF front mount hydraulic cylinder requires optional KIT SU (41954W)
