Uflex USA UC128TS VERSION 2 HYD CYL

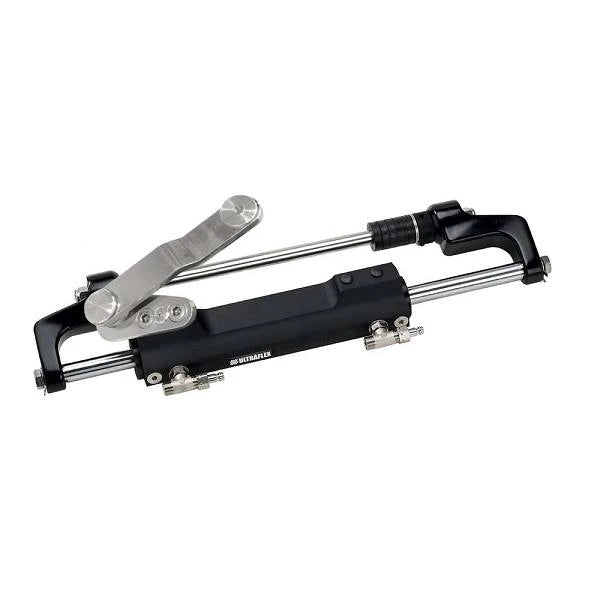

Uflex UC128TS-2 Front Mount Hydraulic Cylinder

This Uflex front mount hydraulic cylinder is designed for easy installation and fits most 2/4 stroke outboard engines on the market. Uflex's ULTRABOLT is a stainless steel connection bolt that boasts excellent resistance to corrosion from marine environments. This hydraulic cylinder is balanced so the number of wheel turns lock to lock is equal from port to starboard. The adjustable boss fittings help make this hydraulic cylinder easy to install. It is not recommended to use this hydraulic cylinder in applications where the boat speed exceeds 55MPH (48 knots), or 65MPH (56 knots) in dual engine/cylinder and counter rotation applications; nor is it intended for use in racing applications.

Product Features:

Replaceable End Caps

ULTRABOLT

Adjustable Boss Fittings

Easy Installation

Balanced

Specifications:

Volume: 120CC / 7.3 CU. IN.

Output Force: 992 lbs (450KG)

Internal Diameter: 1.37" (35mm)

Stroke: 7.28" (185mm)

Bleed Fittings: DN5 Quick COnnect

High Pressure Flex Hose Fittings: 3/8"

Application:

Evinrude

E70/90 2S 2004 - Present

E115/130/135 2S V4

E150/175/200/225/250/300 2S V6 1995 - 2020

Yamaha

115C/130B 2S 1990 - 2008

75C/90 2S 1998 - 2008

150F/200F/250G 2S 1990 - 2008

175/200/225/250/300 HPDI VMAX 2S 2000 - 2008

F115/F150 EFI 4S 2000 - 2008

F200/225/250 4S 1999 - 2007

F200/225/250/300 V6 4S 2004 - Present

Suzuki

DF70/80/90 4S 1998 - Present

DF200/225/250/300 V6 4S 2004 - Present

Tohatsu

115/120/140 2S 2004 - Present

Johnson

J90/115 V4 2S 1995 - 2007

J150/175 V6 2S 1995 - 2007

J200/225 V6 4S 2004 - 2007
