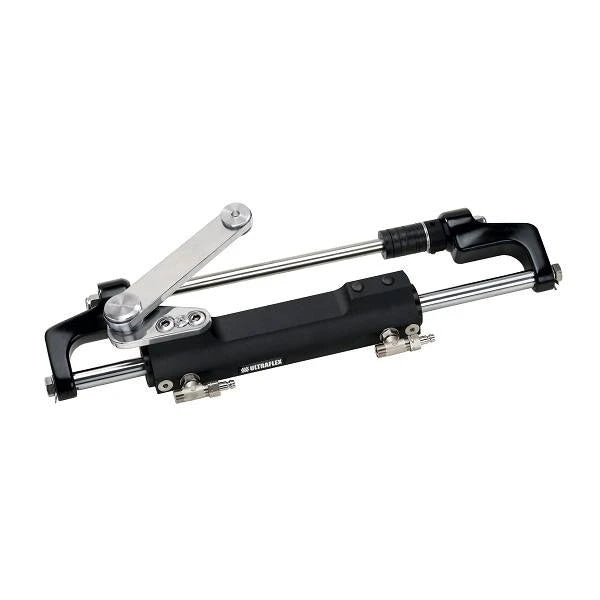

Uflex USA UC128TS VERSION 1 HYD CYL

Uflex UC128TS-1 Front Mount Hydraulic Cylinder

This Uflex front mount hydraulic cylinder is designed for easy installation and fits most 2/4 stroke outboard engines on the market. Uflex's ULTRABOLT is a stainless steel connection bolt that boasts excellent resistance to corrosion from marine environments. This hydraulic cylinder is balanced so the number of wheel turns lock to lock is equal from port to starboard. The adjustable boss fittings help make this hydraulic cylinder easy to install. It is not recommended to use this hydraulic cylinder in applications where the boat speed exceeds 55MPH (48 knots), or 65MPH (56 knots) in dual engine/cylinder and counter rotation applications; nor is it intended for use in racing applications.

Product Features:

Replaceable End Caps

ULTRABOLT

Adjustable Boss Fittings

Easy Installation

Balanced

Specifications:

Volume: 120CC / 7.3 CU. IN.

Output Force: 992 lbs (450KG)

Internal Diameter: 1.37" (35mm)

Stroke: 7.28" (185mm)

Bleed Fittings: DN5 Quick COnnect

High Pressure Flex Hose Fittings: 3/8"

Application:

Mercury/Mariner

115/125/150 EFI 2S 1990 - 2007

225/250 EFI 2S 2000 - 2007

135/150/175 Optimax 1999 - 2018

200/225/250 Optimax 1999 - 2018

Racing 300 Optimax 1999 - 2011

100/115 EFI 4S 2007 - Present

250 Saltwater EFI 4S 2007 - 2011

135/150/175/200 Verado L4 2004 -2012

Fourstroke 175/200 V6 2018 - Present

Fourstroke 225/300 V8 2018 - Present

Yamaha

F70 4S 2010 - Present

F 115/150/175/200 L4 2002 - Present

Honda

BF 75/90 4S 1995 - Present

BF 135/150 4S 2005 - Present

BF150 V-Tec 4S 2008 - Present

BF 175/200/225/2550 4S 2001 - Present

Johnson

BJ 90/115/140 4S 2001 - 2007

Suzuki

DF 100/115/140 4S 2008 - Present

DF 150/175/200 L4 4S 2006 - Present

Selva

80 Portofino/Tigershark 2S 1995 - 2008

200 SEI Whale 4S 2000 - Present

Tohatsu

70/90/115 TLDI 4S 2004 - Present

50/60/75/90/100/115 4S 2018 - Present

MFS BFT 115/150/200/225/250 4S 2014 - Present

BFT 60/75/80/90/100 4S 2015 - Present

Click here for UFlex UC128 Installation Instructions

Frequently Asked Questions

• What is the Uflex UC128TS-1 Front Mount Hydraulic Cylinder used for? The Uflex UC128TS-1 Front Mount Hydraulic Cylinder is designed for hydraulic steering applications on most 2- and 4-stroke outboard engines. It features a balanced design for equal wheel turns from port to starboard, adjustable boss fittings for easier installation, replaceable end caps, and a stainless steel ULTRABOLT designed for resistance to marine corrosion.
• Which outboard engines are compatible with the Uflex UC128TS-1 hydraulic cylinder? The Uflex UC128TS-1 is listed for specific Mercury/Mariner, Yamaha, Honda, Johnson, Suzuki, Selva, and Tohatsu outboard applications. Compatibility varies by engine model, horsepower, stroke type, and year range, so verify your exact engine against the listed application information before installation.
• What are the specifications of the Uflex UC128TS-1 Front Mount Hydraulic Cylinder? The cylinder has a volume of 120CC (7.3 CU. IN.), an output force of 992 lbs (450KG), a 1.37-inch (35mm) internal diameter, and a 7.28-inch (185mm) stroke. It uses DN5 Quick Connect bleed fittings and 3/8-inch high-pressure flex hose fittings.
• What features make the Uflex UC128TS-1 hydraulic cylinder easier to install? The Uflex UC128TS-1 features adjustable boss fittings and a front mount design intended for easy installation. It also has a stainless steel ULTRABOLT connection bolt and replaceable end caps. The balanced cylinder design provides an equal number of steering wheel turns from lock to lock in either direction.
• Can the Uflex UC128TS-1 be used on high-speed or racing boats? The Uflex UC128TS-1 is not recommended for applications where boat speed exceeds 55 MPH (48 knots), or 65 MPH (56 knots) in dual-engine/cylinder and counter-rotation applications. It is also not intended for use in racing applications. What should I verify before purcha…
