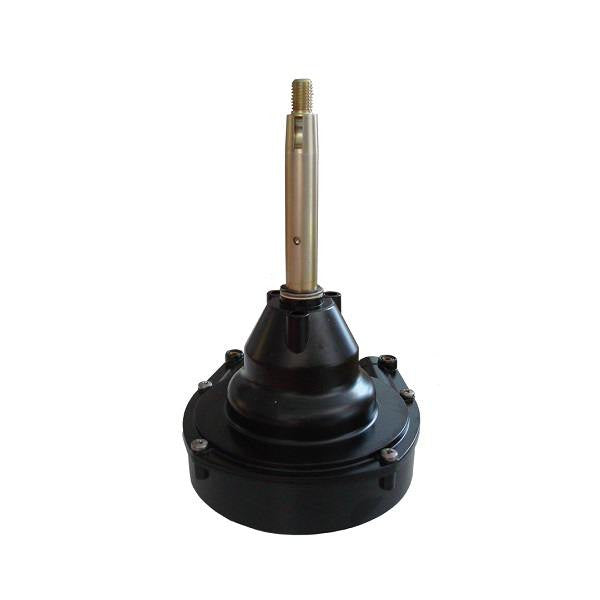

Uflex USA SINGLE ROTARY STEERING HELM - UFX-T91

UFlex T91 Single Cable Rotary Steering Helm

This single cable rotary steering helm is designed for easy installation and minimal feedback. Specifically designed for high performance and high efficiency applications. Constructed with stainless steel cable output ends and corrosion resistant materials for a long working life. The T91 is not for use on boats where the engines equipped exceed the max horsepower rating of the boat. For boats faster than 50mph is is recommended to use a hydraulic steering system.

UFlex rotary systems utilizing a planetary gear design. The three satellite gears distributes steering feedback more evenly and effectively through the helm. This creates a reduction in the amount of effort needed to steer the boat straight or in the direction of the steering torque. The planetary gear design also spreads the wear of the steering direction changes over a wider area which reduces wear and the correspondent motion loss.

Product Features:

3/4" Tapered Shaft

Minimal Feedbackl

Planetary Gear Design

Fast Connect

Stainless Steel Cable Output Ends

Easy to Install

Corrosion Resistant Materials

Exceeds EN 28848 & ABYC P17 Safety Standards

Specifications:

Installation: 90° or 20°

M66 Steering Cable Stroke: 9"

Lock-to-Lock Steering Wheel Turns: Approx. 4.2

Max. Steering Wheel Diameter: 16"

Suggested Steering Cable Bend Radius: 7.87"

Min. Steering Cable Bend Radius: 5.9"

Click here for UFlex T91 Single Cable Rotary Steering Helm Installation Instructions
