Trac Outdoor Winch Mounting Plate-G3

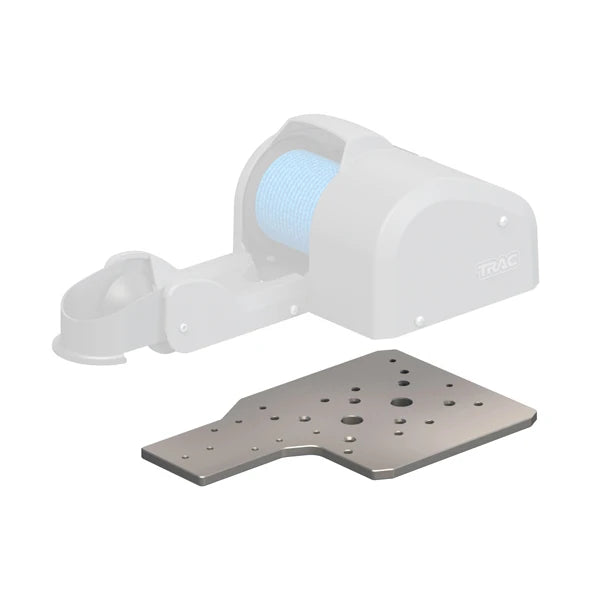

TRAC Gen3 Anchor Winch Mounting Plate

This TRAC Gen3 Anchor Winch Mounting Plate features 4 winch bolt holes along with an extra hole that can be used for battery wire routing in some installations. It is composed of anodized gunmetal gray material and machined from aircraft aluminum. With an extended and compact position for an anchor roller, this sand blasted anchor winch mounting plate will provide exceptional satisfaction.

Features:

4 Winch Bolt Holes

Anodized Gunmetal Gray

Machined From Aircraft Aluminum

Extra Hole That Can Be Used For Battery Wire Routing In Some Installations

Sand Blasted

Extended and Compact Position For Anchor Roller

Includes Stainless Steel Hardware

Compatible With:

T10194 - 90° Transom and Side Mount

T10195 - 12° Transom and Side Mount

T10196 - Quick-Release Plate

T10197 - Spacer-Pedestal

Specifications:

0.4" Plate Thickness

8 Module Installation Holes Rear Position

8 Module Installation Holes Forward Position

Mounting Plate for Models:

T10108-G3 Fisherman 25

T10208-G3 Angler 30

T10109-G3 Pontoon 35

T10219-G3 Deckboat 40 Anchor Winches

DOES NOT FIT: T10108-25, T10109-35, T10208-AD, or T10219-AD

Frequently Asked Questions

• What is the TRAC Gen3 Anchor Winch Mounting Plate used for? The TRAC Gen3 Anchor Winch Mounting Plate provides a mounting surface for compatible TRAC Gen3 anchor winches. It is machined from aircraft aluminum with an anodized gunmetal gray finish and includes mounting holes for the winch and anchor roller positions.
• Which TRAC anchor winches are compatible with this mounting plate? This mounting plate is designed for the TRAC T10108-G3 Fisherman 25, T10208-G3 Angler 30, T10109-G3 Pontoon 35, and T10219-G3 Deckboat 40 anchor winches. It does not fit the T10108-25, T10109-35, T10208-AD, or T10219-AD models.
• What TRAC mounting accessories are compatible with this anchor winch mounting plate? The plate is compatible with the TRAC T10194 90° Transom and Side Mount, T10195 12° Transom and Side Mount, T10196 Quick-Release Plate, and T10197 Spacer-Pedestal.
• What mounting features does the TRAC Gen3 Anchor Winch Mounting Plate have? The plate has four winch bolt holes, eight module installation holes in the rear position, and eight module installation holes in the forward position. It also provides extended and compact positions for an anchor roller.
• What is the TRAC Gen3 Anchor Winch Mounting Plate made from? The mounting plate is machined from aircraft aluminum and features an anodized gunmetal gray finish. The plate is also sand blasted and has a thickness of 0.4 inches.
• Does the TRAC Gen3 Anchor Winch Mounting Plate include mounting hardware? Yes. Stainless steel hardware is included with the TRAC Gen3 Anchor Winch Mounting Plate. The plate also has an extra hole that can be used for battery wire routing in some installations.
