Trac Outdoor Winch Mounting Plate

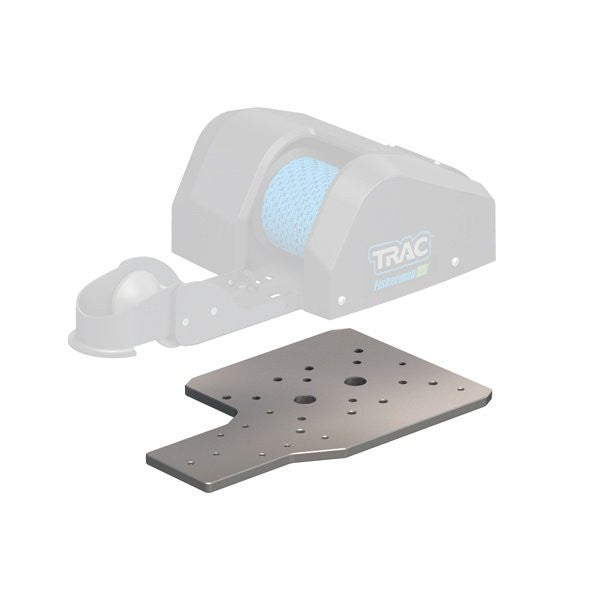

TRAC Gen2 Anchor Winch Mounting Plate

This TRAC Gen2 Anchor Winch Mounting Plate is composed of sand blasted aircraft aluminum that is designed for long lasting use. With 4 winch bolt holes and both an extended and compact position for an anchor roller, it provides exceptional satisfaction. Offering an extra hole that can be used for battery wire routing in some installations, this anchor winch mounting plate also features anodized gunmetal gray and includes stainless steel hardware.

Features:

Machined From Aircraft Aluminum

Sand Blasted

4 Winch Bolt Holes

Extra Hole That Can Be Used For Battery Wire Routing In Some Installations

Anodized Gunmetal Gray

Extended and Compact Position For Anchor Roller

Includes Stainless Steel Hardware

Compatible With:

T10194 - 90° Transom and Side Mount

T10195 - 12° Transom and Side Mount

T10196 - Quick-Release Plate

T10197 - Spacer-Pedestal

Specifications:

8 Module Installation Holes Forward Position

8 Module Installation Holes Rear Position

Mounting Plate For Models: T10108-25 Fisherman 25, T10208-AD Angler 30, T10109-35 Pontoon 35 and T10219-AD Deckboat 40 Anchor Winches DOES NOT FIT: T10108-G3, T10109-G3, T10208-G3 or T10219-G3

0.4" Plate Thickness
