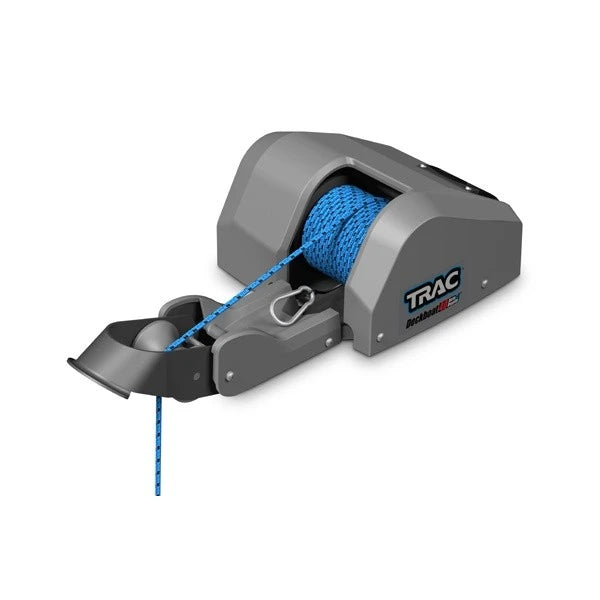

Trac Outdoor Deckboat 40 Auto Anchor Winch

TRAC 69005 Deckboat 40 Auto Deploy Anchor Winch

Lower and retrieve your anchor with ease using the automated TRAC Deckboat 40 Auto Deploy Anchor Winch. Here’s how it works: press and release the button- the anchor will be powered down smoothly and quietly. There is no need to stand by, just activate and walk away. When the anchor reaches the bottom, the winch transitions from steady power-deploy and begins releasing rope a few feet at a time. When there is enough rope let-out, at this point the winch will “lock”, thereby holding the boat position. Need more rope? Let it out by powering the rope IN or OUT. If changes in wind or current conditions cause anchor drag, just press the AutoDeploy button again to correct for the change. Find a list of the TRAC anchor winch’s additional features directly below.

Features:

AutoDeploy button automatically deploys the anchor, releasing rope until the anchor touches bottom.

When rope slack tightens, the rope is automatically released in short lengths and/or may be locked in position.

Automatically releases the correct length of rope required to hold the boat’s position.

Recommended for use on pontoon and open deck boats to avoid distractions and increase safety.

Operation features three simple buttons: UP / DOWN / AUTO DEPLOY

Includes Wireless Remote Control

Davit is integrated.

1-Year warranty

Specifications:

Maximum Anchor Capacity: 35-40 lbs. (30-35 lbs. recommended)

Typical Boat Length: up to 26′

Speed up:  65 ft/min

Speed down:  70 ft/min

Winch Dimensions (LxWxH): 19.5″ x 9.75″ x 5.75″

Includes:

Durable all-steel gears for a long service life

100-feet of 0.20” pre-wound braided anchor rope

Automatic resetting circuit breaker

Housed membrane switch

17-foot long, 14-gauge marine-grade battery wire

Anchor safety chain

Assembly hardware/instructions

1 -Year Manufacturer’s Warranty

Replaces old TRAC part # T10219-G3

TRAC Deckboat 40 AutoDeploy Anchor Winch User Manual

Frequently Asked Questions

• What is the TRAC 69005 Deckboat 40 Auto Deploy Anchor Winch used for? The TRAC 69005 Deckboat 40 Auto Deploy Anchor Winch is designed to automatically deploy and retrieve an anchor while helping maintain the boat's position. It is recommended for pontoon and open deck boats and is typically suited for boats up to 26 feet.
• How does the AutoDeploy function work on the TRAC 69005 anchor winch? Pressing the AutoDeploy button starts a powered anchor deployment until the anchor reaches the bottom. The winch then releases rope in short lengths as needed. When sufficient rope is released, the winch locks to hold the boat's position. The AutoDeploy function can be activated again if wind or current causes anchor drag.
• What size anchor can the TRAC 69005 Deckboat 40 handle? The TRAC 69005 has a maximum anchor capacity of 35-40 lbs., with 30-35 lbs. recommended. The product is typically intended for boats up to 26 feet long.
• What controls are included with the TRAC 69005 Auto Deploy Anchor Winch? The TRAC 69005 uses three simple controls: UP, DOWN, and AUTO DEPLOY. It also includes a wireless remote control for convenient operation.
• What type and length of anchor rope does the TRAC 69005 include? The TRAC 69005 includes 100 feet of 0.20" pre-wound braided anchor rope. The package also includes an anchor safety chain for the specified anchor winch setup.
• What are the operating speeds and dimensions of the TRAC 69005? The TRAC 69005 has a speed-up rate of 65 ft/min and a speed-down rate of 70 ft/min. The winch measures 19.5" L x 9.75" W x 5.75" H and includes an automatic resetting circuit breaker and 17-foot, 14-gauge marine-grade battery wire.
