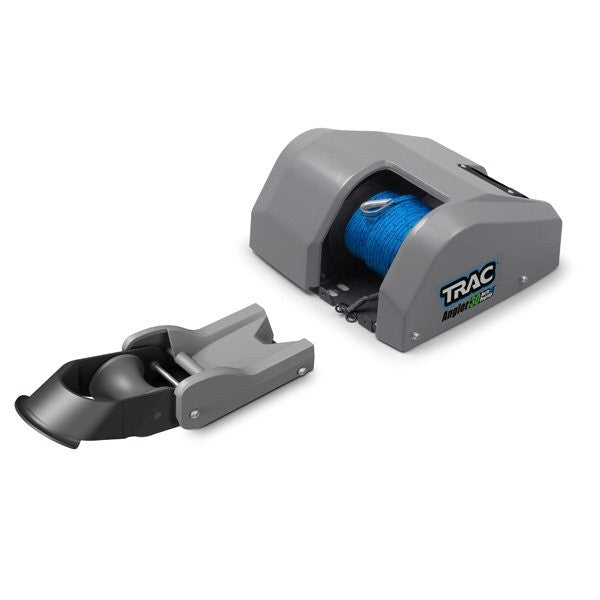

TRAC Angler 30 Auto Deploy Anchor Winch

With the touch of a button (press and release), the anchor is powered down smoothly and quietly, while you go about your boating activity.  When the anchor reaches bottom, the winch will transition from steady power-deploy and begin releasing rope just a few feet at a time, until the there is enough rope out, then the winch will “lock” holding the boat position.  You can always let more rope out by powering the rope IN or OUT. Or, press the AutoDeploy button again if the anchor drags due to changing conditions, such as wind or current.

Features:

Push-button AutoDeploy which automatically deploys the anchor, releasing rope until the anchor touches bottom.

When slack in the rope becomes tight, rope is automatically released in short lengths or can be locked with the touch of any switch or remote button.

Automatically releases the rope needed to hold the boat in position.  When the anchor stops letting rope out, press the “lock” or any other switch button.

Great for fishing to allow a “controlled” drift.

3 button operation – UP / DOWN / AUTO DEPLOY

Wireless Remote Control included

Attached or separated davit

Specifications:

Maximum Anchor Capacity: 25-30 lbs. (20-25 lbs. recommended)

Typical Boat Length: up to 22′

Speed up: 65 ft/min

Speed down: 70 ft/min

Remote Battery: LR27A

Winch Dimensions (LxWxH): 10″ x 9.75″ x 5.75″

Includes:

Rugged All-Steel Gears

100’ of 0.20” pre-wound braided anchor rope

Automatic resetting circuit breaker

Sealed membrane switch

14-gauge marine-grade battery wire which is 16 ft long

Anchor safety chain

Assembly hardware and instructions

1 Year Manufacturer’s Warranty

Replaces old TRAC part # T10208-G3

TRAC Angler 30 Anchor Winch User Manual

Frequently Asked Questions

• What is the TRAC Angler 30 Auto Deploy Anchor Winch designed for? The TRAC Angler 30 Auto Deploy Anchor Winch is designed for boats up to 22 feet and anchors weighing up to 25-30 lbs., with 20-25 lbs. recommended. Its AutoDeploy function helps automatically release rope until the anchor holds the boat in position.
• How does AutoDeploy work on the TRAC Angler 30 Anchor Winch? Press and release the AutoDeploy button to power the anchor down. When the anchor reaches the bottom, the winch begins releasing rope in short lengths as needed. Once the boat is held in position, the winch locks. Additional rope can be released using the controls, or AutoDeploy can be activated again if conditions change.
• What controls are included with the TRAC Angler 30 Auto Deploy Anchor Winch? The TRAC Angler 30 features three-button operation for UP, DOWN, and AUTO DEPLOY functions. A wireless remote control is included, and the winch also has a sealed membrane switch for operating the anchor.
• What rope is included with the TRAC Angler 30 Anchor Winch? The TRAC Angler 30 includes 100 feet of 0.20-inch pre-wound braided anchor rope. An anchor safety chain, assembly hardware, and instructions are also included with the winch.
• What are the speed and size specifications of the TRAC Angler 30? The TRAC Angler 30 has a retrieval speed of 65 feet per minute and a deployment speed of 70 feet per minute. The winch measures 10 inches long by 9.75 inches wide by 5.75 inches high and is designed for boats up to 22 feet.
• What electrical components are included with the TRAC Angler 30 Auto Deploy Anchor Winch? The winch includes an automatically resetting circuit breaker and 16 feet of 14-gauge marine-grade battery wire. The wireless remote uses an LR27A battery. The package also includes rugged all-steel gears and assembly hardware and instructions.
