Shakespeare Antennas Antenna Vhf 3 Ft Stainless

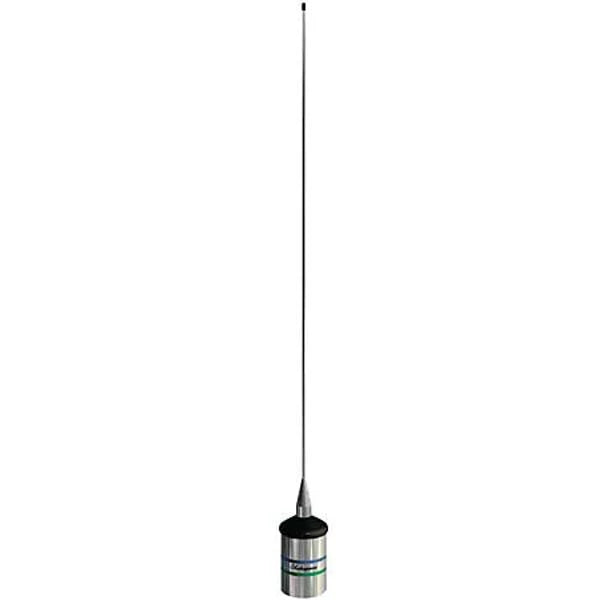

Shakespeare Classic Stainless 3' VHF Marine Antenna

The perfect choice for bass boats, center console fishing boats, or any vessel where compact size is most important.

Chrome plated brass canister minimizes de-tuning.

Hermetically sealed, tin-plated copper wire coil

Requires mount with center hole for passage of the supplied 15' RG-58 cable. PL-259 connector included

Stainless steel whip (36")

Suggested mount: Style 4187 or 5187

One section

Style 5241-R VHF 3dB Technical Specifications:

Frequency: VHF Marine band

Bandwidth: 7Mhz

SWR: 1.5:1 at 156.8 MHz

Gain: 3dB

Max. Input (Watts): 50

DC Ground: YES

Height (feet): 3

Polarization: Vertical

Radiation pattern: Omni-directional

Frequently Asked Questions

• What is the Shakespeare Classic Stainless 3' VHF Marine Antenna designed for? The Shakespeare Classic Stainless 3' VHF Marine Antenna is designed for bass boats, center console fishing boats, and other vessels where a compact antenna is important. It is a one-section antenna with a 36-inch stainless steel whip and a 3dB gain.
• What cable and connector are included with the Shakespeare Classic Stainless 3' VHF Marine Antenna? The Shakespeare Classic Stainless 3' VHF Marine Antenna includes 15 feet of RG-58 cable and a PL-259 connector. The antenna requires a mount with a center hole so the supplied cable can pass through during installation.
• What type of mount is compatible with the Shakespeare Classic Stainless 3' VHF Marine Antenna? The suggested mounts for the Shakespeare Classic Stainless 3' VHF Marine Antenna are Style 4187 and Style 5187. The antenna requires a mount with a center hole for routing the supplied RG-58 cable.
• What are the technical specifications of the Shakespeare Classic Stainless 3' VHF Marine Antenna? The antenna operates on the VHF Marine band with a 7MHz bandwidth, 1.5:1 SWR at 156.8 MHz, 3dB gain, and a maximum input of 50 watts. It has vertical polarization and an omni-directional radiation pattern.
• What is the Shakespeare Classic Stainless 3' VHF Marine Antenna made from? The Shakespeare Classic Stainless 3' VHF Marine Antenna features a stainless steel 36-inch whip, a chrome-plated brass canister, and a hermetically sealed, tin-plated copper wire coil. The construction includes a DC ground.
• What are the size and frequency characteristics of the Shakespeare Classic Stainless 3' VHF Marine Antenna? The Shakespeare Classic Stainless 3' VHF Marine Antenna is 3 feet tall and uses a 3dB gain design. It operates on the VHF Marine band with a 7MHz bandwidth and has an omni-directional radiation pattern with vertical polarization.
