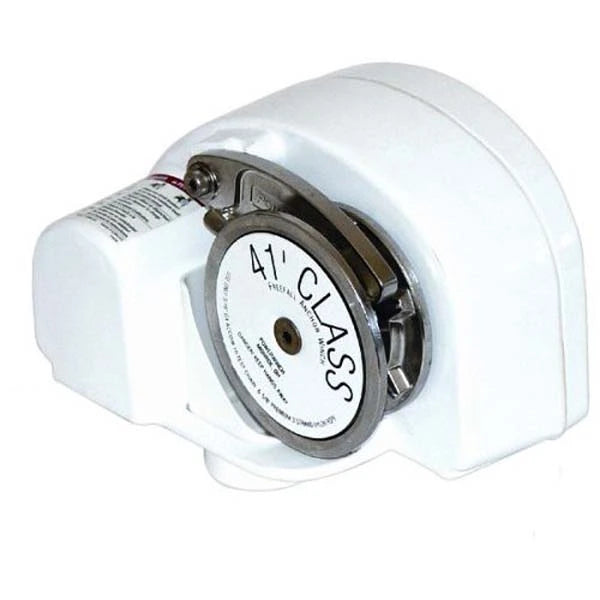

Powerwinch Freefall Windlass 900 Lb To 41'

Powerwinch Class 41 Free-Fall Anchor Windlass

Fastest way to anchor - Anchor drops up to four times faster! Easiest way to anchor - Free-Fall stops when the anchor has reached bottom - Rope does not collect on your deck while you waste time and effort powering down. Easiest to use - just hold the helm switch for only five seconds to release free-fall, versus one to three minutes powering down. Safety - Allows you to anchor quickly in poor conditions. Precise anchoring location - Anchor your boat where you want it to be, unlike powering down where your boat will drift while you power down.

Powerwinch offers durable and smooth Free-Fall Anchor Windlass. Their free fall system allows the anchor to fall at a rate of up to 300' per minute. Easily four time faster than powering down. The gear systems are oil impregnated with heat treated oil. Stainless steel drive shafts give years of smooth and reliable performance. A tapered splice is ideal for smooth rope-to-chain transition. The motor plate is made of one piece which provides improved gear life and and smooth power transmission. The smooth motor uses less amps by not needing the battery power during free-fall. Watertight sealed stainless sealed fasteners are easy to remove and have excellent corrosion resistance.

The Safest Way to Anchor!

Exclusive stainless steel rope & chain guidance system - Durable materials stand up to years of use

Ultra smooth motor uses less amps - Free-fall does not need battery power so it preserves your battery

Built with durable stainlesssteel fasteners - Resists corrosion for easy removal

Watertight seals - For additional protection against corrosion

One piece motor plate - For smooth power transmission & improved gear life

Heat treated oil-impregnated gear systems - Smoother operation, resists corrosion, lasts longer

Replaceable Rode-Glide - Smoothly channels rope and chain below deck

Use tapered back splice - For smooth rope-to-chain transition

Click here to download Powerwinch 41 Free-Fall Anchor Windlass Manual & Parts

Specifications:

Unit Weight

23 lbs

Retrieval Speed

75' / minute

Line Size

5/8" Powerwinch Premium Medium Lay Nylon

Overall Dimensions

10-9/16" L x 7" W x 6-5/16" H

Pulling Power

900 lbs

Anchoring Speed

Up to 300' / minute

Chain Size

5/16" Hi-test ACCO G4

Rodes (sold separately)

P10297-P10300

Rope & Chain System

Electro-Plated Stainless Steel

Replaceable Rode-Glide

Engineered Resin

Helm Operated Control Switch

Rocker

Avg. Amp Draw (during retrieval)

8-12 amps

Install Kit

P55600

Required Wire Size to Battery

6 gauge (70' run)

Standard Equipped Thermal Circuit Breaker

25 amp auto reset

Manual Reset Circuit Breaker (optional)

Optional 25 amp P1070400AJ

Warranty

2 years

Dual Switch Solenoid

Optional P1028200AJ

Required Materials Not Included with Powerwinch Class 41 Freefall Anchor Windlass

Below is a chart outlining the materials you will need IN ADDITION to buying your windlass. The following are required for an electrical installation:

Qty.

Description

2 ft

12 awg RED Wire Class 105°C

2 ft

12 awg BLACK Wire Class 105°C

70 ft

6 awg RED Wire Class 105°C

6 awg wire is the "run" wire from anchor to switch and battery to switch. Length is based on instalation

70 ft

6 awg BLACK Wire Class 105°C

10

5/16" 6 awg ring terminals

4

5/16" 12 awg ring terminals

4

1/4" 12 awg insulated female spade quick disconnects

6

1/4-20 x 1/2 Screws

Screws and nuts should be stainless steel to avoid rust and corrosion.

6

1/4-20 Nuts

Wire Ties

2 ft

1" diameter heat shrink

2 ft
