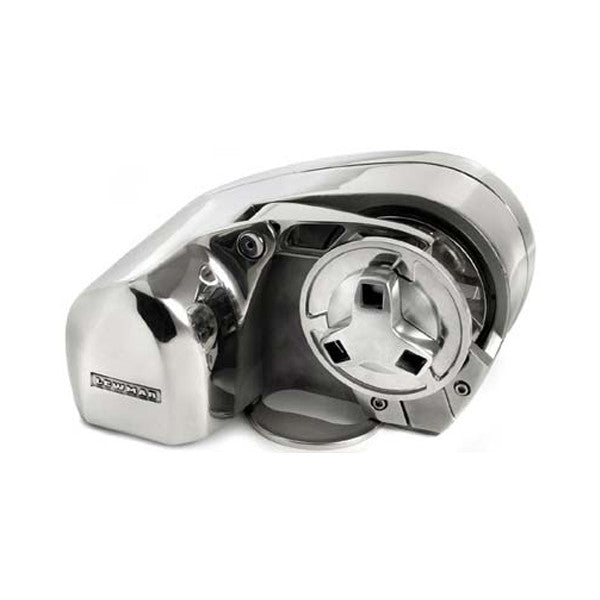

Lewmar Marine Pro Series H 1000 Windlass

Lewmar Pro Series 1000H Windlass

This Lewmar Pro Series 1000H Windlass is DIY-ready, easy to install and housed in 100% 316 stainless steel allowing for added protection and durability. With convenient above-deck installation and a powerful motor providing fast line speed, this windlass is built to last. A push-button control and a built-in manual emergency recovery system are featured for easy use.

Features:

DIY-Ready, Easy To Install and Housed In 100% 316 Stainless Steel, Making It Well Protected and Durable

Powerful Motor Providing Fast Line Speed (Power Up / Power Down)

Convenient Above-Deck Installation

Includes Push-Button Control and A Built-In Manual Emergency Recovery System

Manual Emergency Recovery Equipped - Requires A Common 1/2 Socket Wrench

For Boats Up To 20-45 ft

5 Year Warranty

Kit Includes:

Lewmar Pro 1000 Horizontal Windlass (Power Up / Power Down)

Installation Wrench

Dual-Direction Solenoid

Rocker Switch

Fast Mounting Studs

Circuit Breaker

Base Gasket Seal

Specifications:

Maximum Pulling Power: 454kg (1,000 lb)

Max Line Speed: 105 Feet Per Minute

Working Load: 250 lbs

Chain Size: 5/16" High Test

Rope size: 9/16"-5/8" or 5/8" 8 Plait

Voltage: 12V

Typical Power 700 Watts

Normal Current Draw: 50A

Circuit Breaker: 70A

Dimensions: 5-3/4" H x 9-5/4" L x 7" W

Typical Line Speed: 88 ft

Weight: 21 lbs

Frequently Asked Questions

• What is the Lewmar Pro Series 1000H Windlass designed for? The Lewmar Pro Series 1000H Windlass is a 12V horizontal windlass designed for boats 20-45 feet long. It provides powered up and down operation with a maximum pulling power of 1,000 lb and a maximum line speed of 105 feet per minute, making it suitable for anchor handling applications.
• What rope and chain sizes are compatible with the Lewmar Pro Series 1000H Windlass? The Lewmar Pro Series 1000H Windlass is specified for 5/16-inch high-test chain and 9/16- to 5/8-inch rope or 5/8-inch 8-plait rope. Verify that your existing anchor rode matches these specified sizes before installation and use.
• How is the Lewmar Pro Series 1000H Windlass operated? The windlass provides powered up and powered down operation through the included rocker switch and dual-direction solenoid. It also has a built-in manual emergency recovery system. Manual recovery requires a common 1/2-inch socket wrench.
• What is included with the Lewmar Pro Series 1000H Windlass? The kit includes the Lewmar Pro 1000 horizontal windlass, installation wrench, dual-direction solenoid, rocker switch, fast mounting studs, circuit breaker, and base gasket seal. These components support the windlass installation and electrical connection as specified by the product.
• What are the electrical specifications of the Lewmar Pro Series 1000H Windlass? The Lewmar Pro Series 1000H Windlass operates at 12V and has a typical power rating of 700 watts with a normal current draw of 50A. The specified circuit breaker is 70A. Follow the product instructions and applicable equipment documentation for installation and electrical requirements.
• What are the pulling power and working load of the Lewmar Pro Series 1000H Windlass? The Lewmar Pro Series 1000H Windlass has a maximum pulling power of 454 kg (1,000 lb) and a working load of 250 lb. Its typical line speed is 88 feet per minute, while the maximum line speed is specified as 105 feet per minute.
