Johnson Pump Proline Bilge Pump

Mayfair Replacement Proline Bilge Pump by Johnson Pump

The Johnson Pump Proline Bilge Pump offers high-performance water removal in a compact, durable package. Its corrosion-resistant 316 stainless steel shaft and marine-grade housing are built to last in harsh boating environments. The .75-inch hose barb features an anti-clog design, while the 30-inch, 16-gauge lead wire gives you flexibility during installation. Fully submersible and ignition-protected, it meets USCG ISO 8849, ABYC, CE, and EN 55014 safety standards. Backed by a 3-year warranty and factory tested, this pump ensures smooth water evacuation and dependable bilge protection every time you head out.

Key Features:

Durable ABS fuel-resistant, compact housing

Quick release removable basket is easy to clean and replace

Low amp draw water-cooled motor

Includes straight and 90 degree Dura-port discharge ports

Molded t-slot for switches makes for easy switch installation

Direct replacement for older Mayfair Proline Bilge Pumps

Specifications:

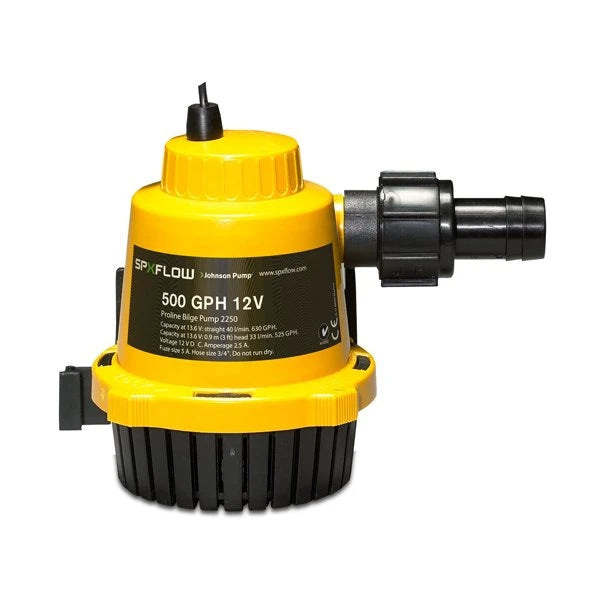

Part 22502 (500 GPH)

Capacity 3 ft. Head: 525 GPH

Capacity Straight: 630 GPH

Amp: 2.5 Amp

Fuse Size: 5 Amp

Part 22702 (750 GPH)

Capacity 3 ft. Head: 700 GPH

Capacity Straight: 800 GPH

Amp: 3 Amp

Fuse Size: 5 Amp

Part 22102 (1000 GPH)

Capacity 3 ft. Head: 952 GPH

Capacity Straight: 1150 GPH

Amp: 3.2 Amp

Fuse Size: 5 Amp

Frequently Asked Questions

• What is the Mayfair Replacement Proline Bilge Pump designed for? The Mayfair Replacement Proline Bilge Pump by Johnson Pump is designed to remove bilge water efficiently while serving as a direct replacement for older Mayfair Proline bilge pumps. Its compact design and marine-grade construction make it a dependable choice for harsh boating environments.
• What pump capacities are available for this bilge pump? This pump is available in three sizes: Part 22502 with a 500 GPH rating, Part 22702 with a 750 GPH rating, and Part 22102 with a 1000 GPH rating. Each option includes different straight-flow and 3-foot head capacity ratings.
• What features make this bilge pump durable and easy to maintain? This bilge pump features a corrosion-resistant 316 stainless steel shaft, durable ABS fuel-resistant housing, and a quick-release removable basket for easier cleaning and replacement. It also includes straight and 90 degree Dura-port discharge ports for added installation flexibility.
• Is this bilge pump safe for marine use? Yes. The pump is fully submersible, ignition-protected, and meets USCG ISO 8849, ABYC, CE, and EN 55014 safety standards.
• What warranty comes with the Mayfair Replacement Proline Bilge Pump? The Mayfair Replacement Proline Bilge Pump by Johnson Pump is backed by a 3-year warranty.
