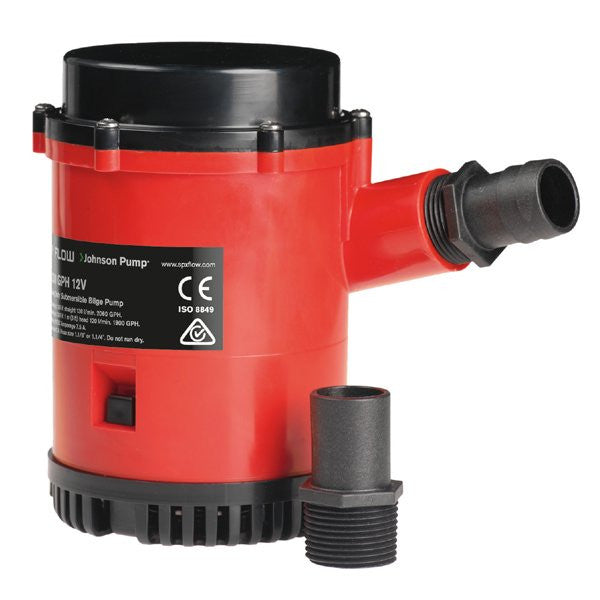

Johnson Pump 2200Gph Bilge Pump

Mayfair Replacement Magnum Heavy Duty Bilge Pump by Johnson Pump

The Johnson Pump Magnum Heavy Duty Bilge Pump is a submersible pump designed to meet and exceed the tough demands of commercial and recreational duty. This 2200 GPH pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. Like other Johnson pumps, this pump has an impeller that is carefully designed and tested to maximize head and flow. The universal base plate and choice of two different ports makes installation easy. This pump can be used with an electronic float switch for automatic operation.

This pump is a direct replacement for older model Mayfair Magnum 2200 GPH Bilge Pumps.

Features:

Submersible

Liquid-cooled motor for extended service life

Motor is sealed off by mechanical seal design

Removable check valve included

Universal base plate

Specifications:

GPH: 2200

Voltage: 12 V

Amperage: 7.5 A

Fuse Size: 12 A

Connection: 1-1/8" & 1-1/4"

Capacity 1.0m head: 120 l/min - 1900 GPH

Capacity straight: 130 l/min - 2060 GPH

Click to Download the Johnson Pump Magnum Heavy Duty Bilge Pump User Manual

Frequently Asked Questions

• What is the Mayfair Replacement Magnum Heavy Duty Bilge Pump by Johnson Pump used for? The Mayfair Replacement Magnum Heavy Duty Bilge Pump by Johnson Pump is a submersible bilge pump designed for commercial and recreational duty. It has a 2200 GPH rated capacity and can be used with an electronic float switch for automatic operation.
• Is the Johnson Pump Magnum Heavy Duty Bilge Pump a replacement for Mayfair Magnum pumps? Yes. This pump is a direct replacement for older model Mayfair Magnum 2200 GPH Bilge Pumps. Before selecting the replacement, verify that the existing installation matches the pump's listed electrical specifications, connection sizes, and mounting requirements.
• What are the electrical specifications of the Johnson Pump Magnum Heavy Duty Bilge Pump? The Johnson Pump Magnum Heavy Duty Bilge Pump operates at 12 V, draws 7.5 A, and uses a 12 A fuse. Its rated capacity is 2200 GPH. The listed capacity is 1900 GPH at a 1.0 m head and 2060 GPH with a straight discharge.
• What connection sizes does the Johnson Pump Magnum Heavy Duty Bilge Pump use? The Johnson Pump Magnum Heavy Duty Bilge Pump has 1-1/8" and 1-1/4" connection options. It also features a universal base plate and two different port choices to make installation easier. Confirm the required connection size for the existing bilge system before installation.
• What motor features are included in the Johnson Pump Magnum Heavy Duty Bilge Pump? The pump features a liquid-cooled, 12-pole motor with double ball bearings designed for extended service life. The motor is sealed using a mechanical seal design, and the pump uses an impeller designed and tested to maximize head and flow.
• Does the Johnson Pump Magnum Heavy Duty Bilge Pump include a check valve? Yes. The Johnson Pump Magnum Heavy Duty Bilge Pump includes a removable check valve. The pump also has a universal base plate and is designed to work with an electronic float switch when automatic bilge pump operation is desired.
