Johnson Pump IMPELLER KIT F4 MC 97 - JON-09-1026B-1

Johnson Pump F4 MC97 Impeller Kit

The Johnson Pump F4 MC97 Impeller kit is constructed of a unique MC97 rubber compound that is designed for strict tolerances for excellent functionality. Optimized to provide maximum life through a stable pressure delivery over time with minimized swelling and failures due to fatigue. Worn or damaged impellers can lead to engine breakdowns.

Features:

Meets engine OM requirements

All in one kit

Nitrile for oil resistance

Self-Priming Capability

MC97/Neoprene for cooling

Specifications:

Pump: F4

Material: MC97

Outer Diameter: 2.00"

Inner Diameter: 0.50"

Width: 0.87"

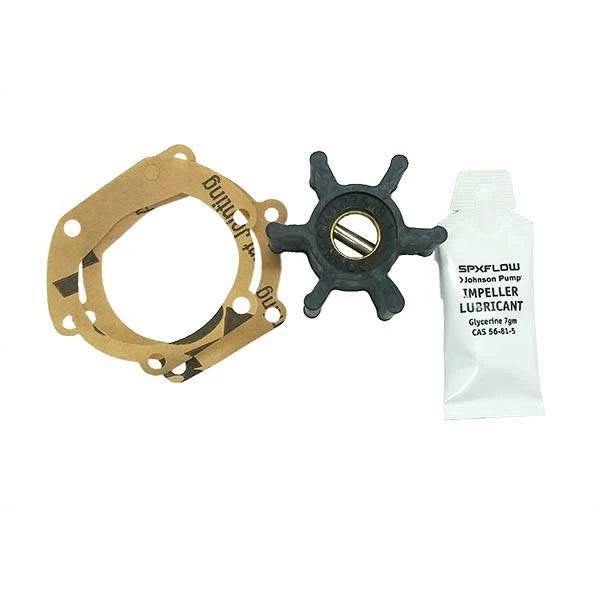

Includes:

Impeller

Gasket x 2

Impeller lubricant

Fits:

Bukh (Aabenraa)

DV 20, 24 ME/SME

Fischer Panda

Panda PMS 6, 8 , 10, 12 KUB

Iveco-Aifo

UNO M20

Lombardini

LDW 1003 M, 1204M, 1404M

LDW 502M, 602M, 702M, 903M

Volvo Penta

MD 2030, MD 2040

D1-13, 20 A/B

D1-30, 40 A/B, D2-55 A/B/C/D/E, D2-75 A/B/C, AQ90

MD 3B

AQ 110/115, 115A/B, 120, 130, 130A/B, 130C/D

AQ140, AQ60F, AQ95A, VV100, BB115, BB115B/C

MD17C, 17D, 20B

2GM 20F, 2QM 15/20, 3GM30F, 3HM/HM 35/HM 35F, 3QM 30

Click here to download Johnson Pump Impeller Installation Instructions
