Johnson Pump Aqua Jet Water Pressure Pump

Johnson Aqua Jet Water Pressure Pump 12V

Quiet and pulsation-free even at low speeds, the new Aqua Jet five-chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. Features an inlet strainer that protects the pump from harmful intrusions.

Whisper quiet operation

Five-chamber construction

Self-priming

Easy, low cost maintenance

Pressure cut off at 41 PSI

Long service life

Diaphragm: Santoprene

Valves: EPDM

Body: Thermoplastic

Specifications:

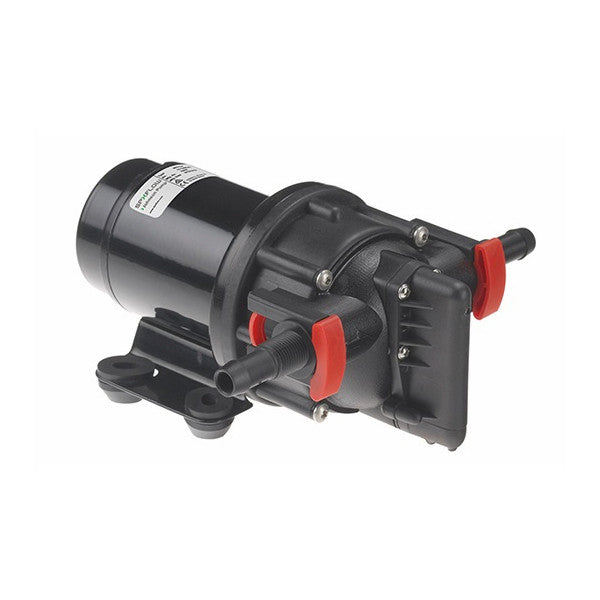

10-13405-103

2.9 GPM

10A Fuse

Dimensions: 8.02" L x 7.76" W x 4.33" H

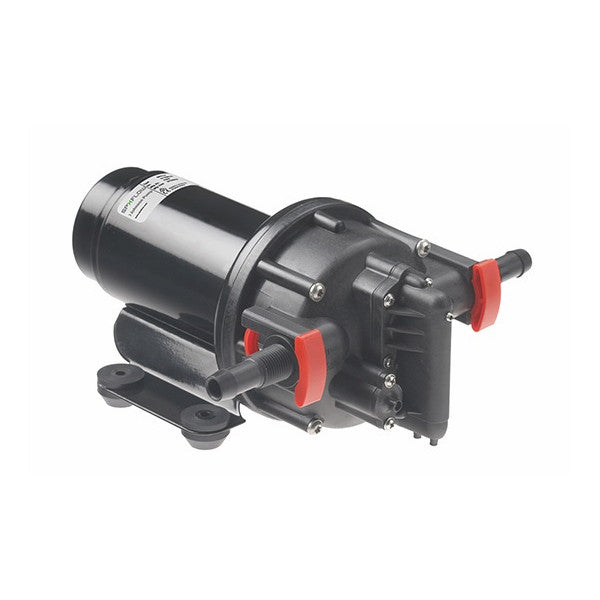

10-13395-103

3.5 GPM

10A Fuse

Dimensions: 9.31" L x 8.25" W x 4.58" H

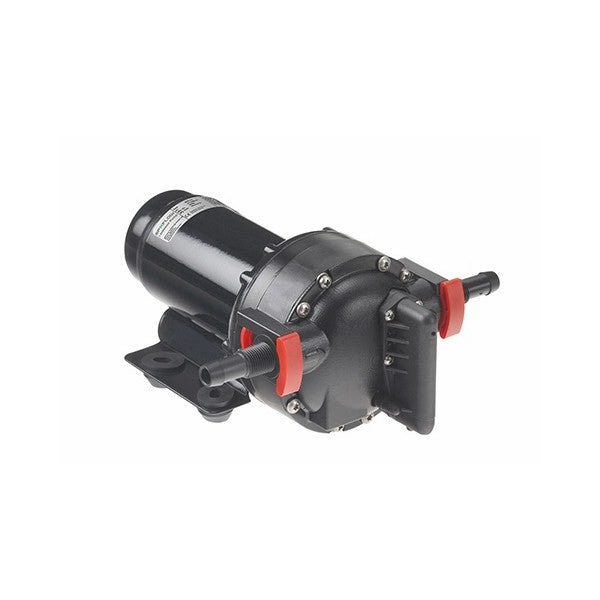

10-13406-107

5.2 GPM

15A Fuse

Dimensions: 9.46" L x 8.42" W x 4.33" H

Click to Download Johnson Aqua Jet Water Pressure Pump Manual

Frequently Asked Questions

• What is the Johnson Aqua Jet Water Pressure Pump 12V used for? The Johnson Aqua Jet Water Pressure Pump 12V provides water pressure for small and medium-sized leisure and commercial boats. Its five-chamber diaphragm design is engineered for quiet, pulsation-free operation, including at low speeds, and the pump is self-priming.
• What are the flow rate options for the Johnson Aqua Jet Water Pressure Pump 12V? The Johnson Aqua Jet Water Pressure Pump 12V is available in 2.9 GPM, 3.5 GPM, and 5.2 GPM versions. Model 10-13405-103 provides 2.9 GPM, model 10-13395-103 provides 3.5 GPM, and model 10-13406-107 provides 5.2 GPM.
• What are the dimensions and fuse requirements for the Johnson Aqua Jet Water Pressure Pump? Dimensions and fuse requirements vary by model. The 10-13405-103 measures 8.02" L x 7.76" W x 4.33" H and uses a 10A fuse. The 10-13395-103 measures 9.31" L x 8.25" W x 4.58" H and uses a 10A fuse. The 10-13406-107 measures 9.46" L x 8.42" W x 4.33" H and uses a 15A fuse.
• Does the Johnson Aqua Jet Water Pressure Pump have a self-priming design? Yes. The Johnson Aqua Jet Water Pressure Pump features a self-priming design. It also has a five-chamber diaphragm construction and a pressure cutoff at 41 PSI.
• What materials are used in the Johnson Aqua Jet Water Pressure Pump? The pump uses a Santoprene diaphragm, EPDM valves, and a thermoplastic body. It also features an inlet strainer designed to protect the pump from harmful intrusions.
• What makes the Johnson Aqua Jet Water Pressure Pump suitable for marine use? The pump is designed for small and medium-sized leisure and commercial boats. Its features include whisper-quiet operation, pulsation-free performance, self-priming capability, a five-chamber construction, and low-cost maintenance.
