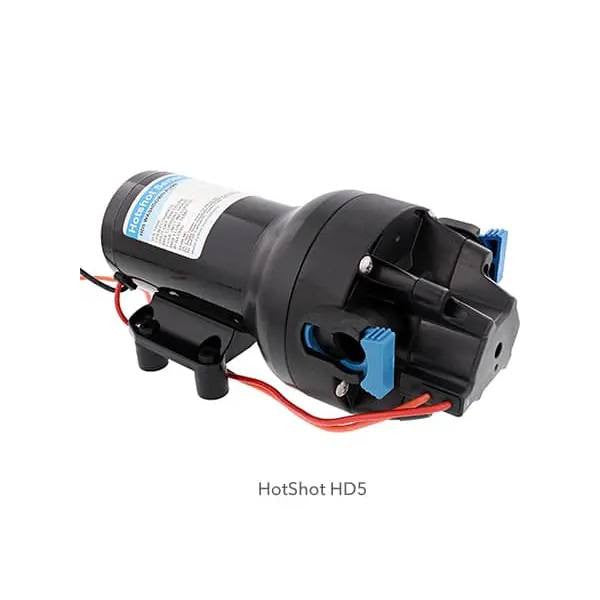

Jabsco HOTSHOT HD5 12V 5GPM 70PSI

Jabsco HD5 HotShot 5GPM Washdown Pump

This Jabsco Washdown kit puts out is designed for use on yachts on all sizes. The Hotshot washdown kit harnesses 5GPM with 70PSI to make cleaning your decks, cockpits, and anchors with ease. These HotShot kits come with a wide diameter heavy duty motor that sits in a cast aluminum lower housing for unmatched durability with a long working life. For efficient and quiet operation this washdown kit utilizes dampening mounting feet for lessened vibration. This self-priming motor allows for a versatile installation and is able to run dry without damage to the system. The integrated, sealed pressure switch allows for on demand operation. This kit comes with all you need to get your boat spick and span.

The HotShot HD5 Washdown kit replaces the following Jabsco washdown kits: 82505-0092, 32700-0092, and 32700-0392

Product Features:

Efficient & Quiet Operation

Versatile Installation

Quick-Connect Ports

5GPM / 70PSI

Heavy Duty Motor

Can Run Dry

Self-Priming Capability

Integrated, Sealed Pressure Switch.

Kit Includes:

2 - 1/2" Straight Hosebarb

2 - 3/4" Straight Hosebarb

1 - 3/4" US GHT

1 - 90° 20 Mesh Quick Connect Strainer

1 - Standard Trigger Nozzle

1 - 1/2" Crimp Style Quick Connect Trigger Adapter

1 - 3/4" US GHT Quick Connect Trigger Adapter

Specifications:

Nominal Voltage: 12VDC

Flowrate: 5GPM (18.9 LPM)

Max Amp Draw: 16A

Recommended Fuse Size: 25

Pressure Switch Off Setting: 70PSI (4.8 BAR)

Fluid Temperature Range: 32° F - 140° F

Dry Self-Priming Height: 8'

Length: 9.6"

Width: 5"

Height: 4.7"

Motor Height: 4"

Mounting Length: 2"

Mounting Width: 3.6"

Pump Weight: 6.5 lbs

Click here for Jabsco HotShot HD5 Washdown Kit Technical Data Sheet
