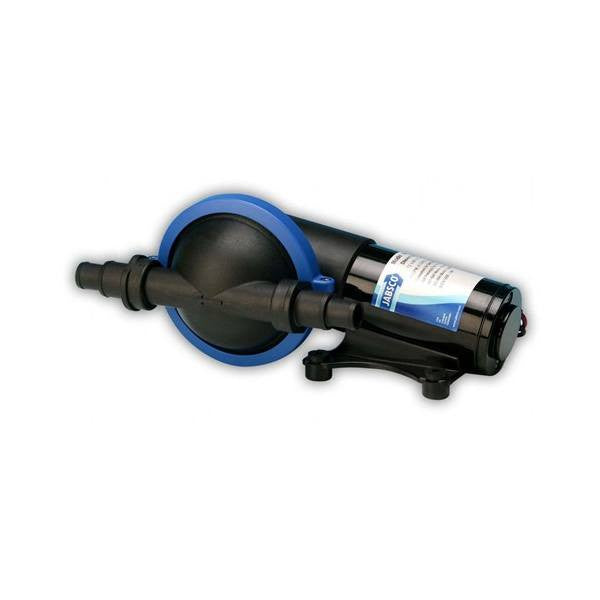

Jabsco Diaphragm Shower Drain Pump

Jabsco Single Diaphragm Shower & Bilge Pump

The Jabsco Diaphragm Shower & Bilge Pump features a compact and simple design, allowing for flexible installation. This pump has dry running capability and is self-priming from dry up to 10 feet.

Flexible installation

No filter required

Compact and simple design

Dry running capability

Relevant Standards: ISO 8846 MARINE and USCG Regulations for Ignition Protection ISO 8849 MARINE Bilge Pump Standard

Built to ISO 15083 Specification

Specifications:

Flow Rate: Nominal 4.2 gallons/minute

Body Material: Plastic

Port Type: 3/4" Hose barb

Motor Type: Permanent magnet

Voltage: 12V

Amp Draw: 8A

Fuse Size: 10A

Frequently Asked Questions

• What is the Jabsco Single Diaphragm Shower & Bilge Pump designed for? The Jabsco Single Diaphragm Shower & Bilge Pump is a compact pump designed for shower and bilge applications. It features a simple design for flexible installation, dry-running capability, and self-priming from dry up to 10 feet.
• Can the Jabsco Single Diaphragm Shower & Bilge Pump run dry? Yes. The Jabsco Single Diaphragm Shower & Bilge Pump has dry-running capability. It is also self-priming from dry up to 10 feet, providing flexibility when installing the pump for its intended shower and bilge applications.
• What type of hose connection does the Jabsco Single Diaphragm Shower & Bilge Pump use? The Jabsco Single Diaphragm Shower & Bilge Pump uses a 3/4" hose barb port. Its compact and simple design allows for flexible installation, and the product description specifies that no filter is required.
• What are the electrical specifications of the Jabsco Single Diaphragm Shower & Bilge Pump? The Jabsco Single Diaphragm Shower & Bilge Pump operates at 12V and uses a permanent magnet motor. It has an amp draw of 8A and requires a 10A fuse. The pump has a nominal flow rate of 4.2 gallons per minute.
• What standards does the Jabsco Single Diaphragm Shower & Bilge Pump meet? The Jabsco Single Diaphragm Shower & Bilge Pump is built to ISO 15083 specification and is listed as meeting ISO 8846 MARINE and USCG regulations for ignition protection, as well as the ISO 8849 MARINE Bilge Pump Standard.
• What materials and components are used in the Jabsco Single Diaphragm Shower & Bilge Pump? The pump has a plastic body and a permanent magnet motor. It uses a 3/4" hose barb port and has a nominal flow rate of 4.2 gallons per minute. The compact design does not require a filter according to the product description.
