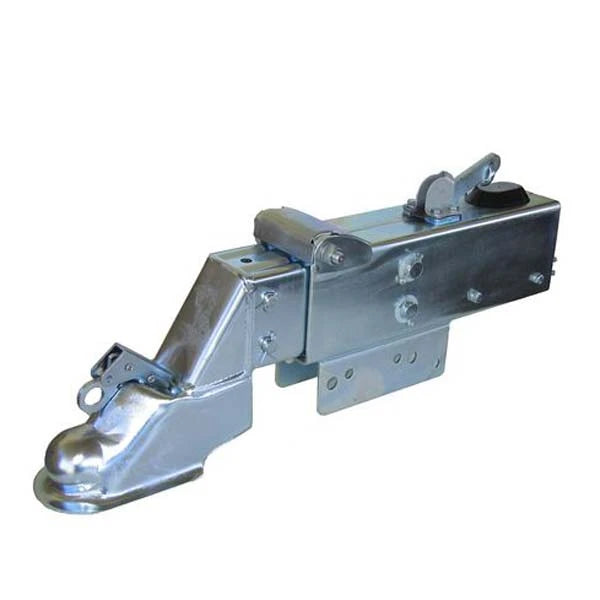

Dexter Axle Model 10 Actuator Blt-On2.313 Drop Pltd Drum

Dexter 06810400 Model 10 Zinc Plated Hydraulic Drum Brake Actuator Replaces Titan-Dico 2478100

Dexter Model 10 Hydraulic Surge Brake Actuator is zinc-plated for excellent corrosion-resistance. Bolts over 3" wide trailer tongue and includes standard, heavy-duty coupler with 3" drop 2 5/16" Ball Size.

Built in 3" Drop

Breakaway kit included

Ball size: 2-5/16"

Mounting: 3" wide tongue

Mounting Holes on 3" and 5" Centers

Capacity: 12,500 lbs

Maximum tongue weight: 1,250 lbs

Frequently Asked Questions

• What is the Dexter 06810400 Model 10 Zinc Plated Hydraulic Drum Brake Actuator used for? The Dexter 06810400 Model 10 Hydraulic Drum Brake Actuator is designed for trailer hydraulic drum brake applications. It bolts over a 3-inch-wide trailer tongue and uses a surge brake design with a standard heavy-duty coupler and a 2-5/16-inch ball size.
• What trailer capacity is the Dexter 06810400 Model 10 Hydraulic Drum Brake Actuator rated for? The Dexter Model 10 Hydraulic Drum Brake Actuator has a 12,500-pound capacity and a maximum tongue weight of 1,250 pounds. Verify that your trailer's capacity and tongue weight requirements are within these specified limits before installation.
• What size trailer tongue and hitch ball does the Dexter Model 10 actuator fit? This actuator mounts over a 3-inch-wide trailer tongue and includes a heavy-duty coupler designed for a 2-5/16-inch hitch ball. Confirm that your trailer tongue width and tow vehicle hitch ball match these specifications before installation.
• What mounting dimensions does the Dexter 06810400 Model 10 actuator have? The Dexter Model 10 Hydraulic Drum Brake Actuator is designed for a 3-inch-wide trailer tongue and has mounting holes on 3-inch and 5-inch centers. Verify your trailer's mounting configuration against these dimensions before installing the actuator.
• Does the Dexter 06810400 Model 10 actuator include a breakaway kit? Yes. The Dexter 06810400 Model 10 Zinc Plated Hydraulic Drum Brake Actuator includes a breakaway kit. It also has a built-in 3-inch drop and is supplied with the standard heavy-duty coupler.
• Is the Dexter 06810400 Model 10 actuator a replacement for Titan-Dico 2478100? Yes. The Dexter 06810400 Model 10 Zinc Plated Hydraulic Drum Brake Actuator is identified as a replacement for Titan-Dico 2478100. Verify the capacity, tongue width, mounting-hole spacing, and 2-5/16-inch ball size before replacing an existing actuator.
