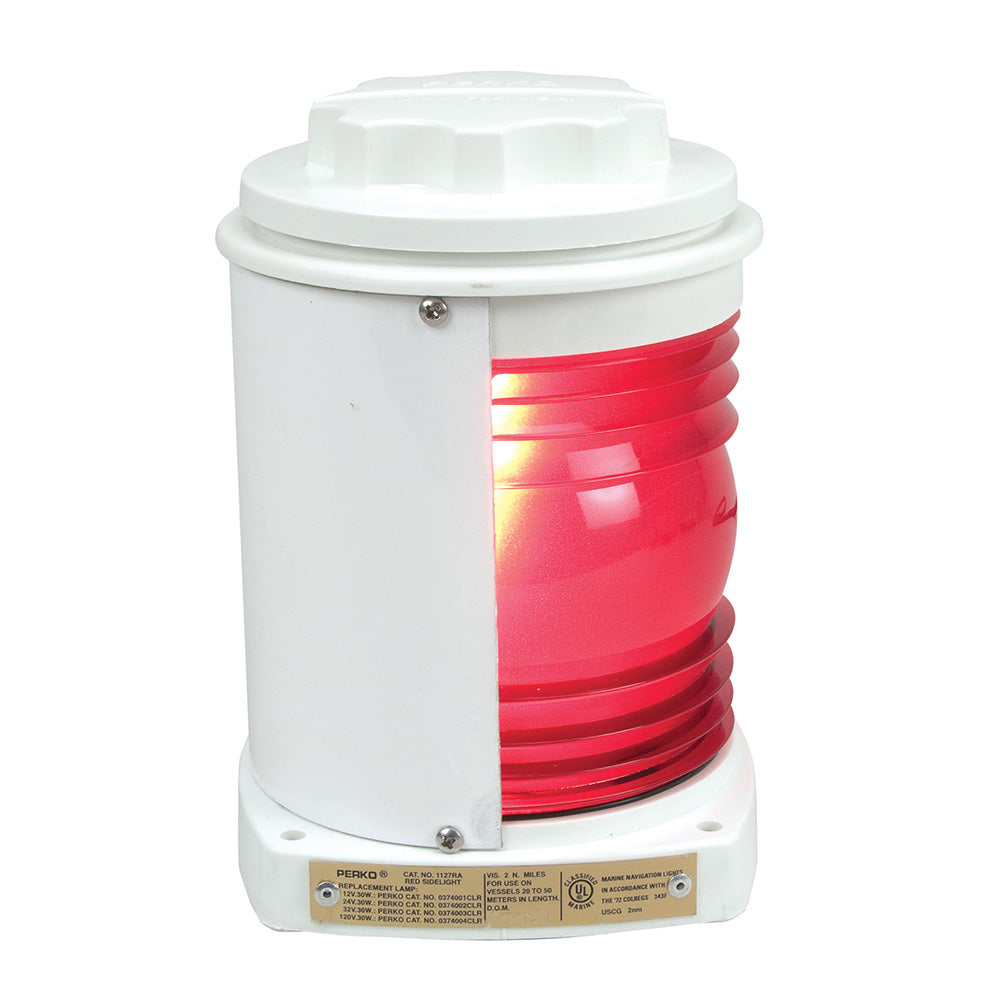

Perko White Plastic Red Side Light

White Plastic Red Side Light

This Perko red side light is certified for use on vessels 20 meters (65.6 ft.) to 50 meters (164.0 ft.) in length.

Features:

• White polymer
• Pre-wired double contact socket and 3 feet of 16/3-SO cable
• 2-Mile (USCG 2nm) certified
• Watertight access cap for rebulbing and cleaning

Specifications:

• Lens Color: Red
• Housing Color: White
• Voltage: 12, 24, or 120 Volt (not included)
• 32 Volt bulb available
• 12 Volt Wattage & Amperage: 30 watts / 2.5 amps
• 24 Volt Wattage & Amperage: 30 watts / 1.25 amps
• 120 Volt Wattage & Amperage: 30 watts / .25 amps
• Height Overall: 7-1/2 in.
• Height Lens: 4-1/2 in.
• Screw Size: 1/4 in.
• Visibility Arc: 112-1/2 degrees

Installation guide: https://productimageserver.com/literature/installations/99053IN.pdf
