Attwood Marine Gasoline Deck Fill 1-1/2" Stainless Steel Alloy

Gasoline Deck Fill - 1-1/2 inch Stainless Steel Alloy

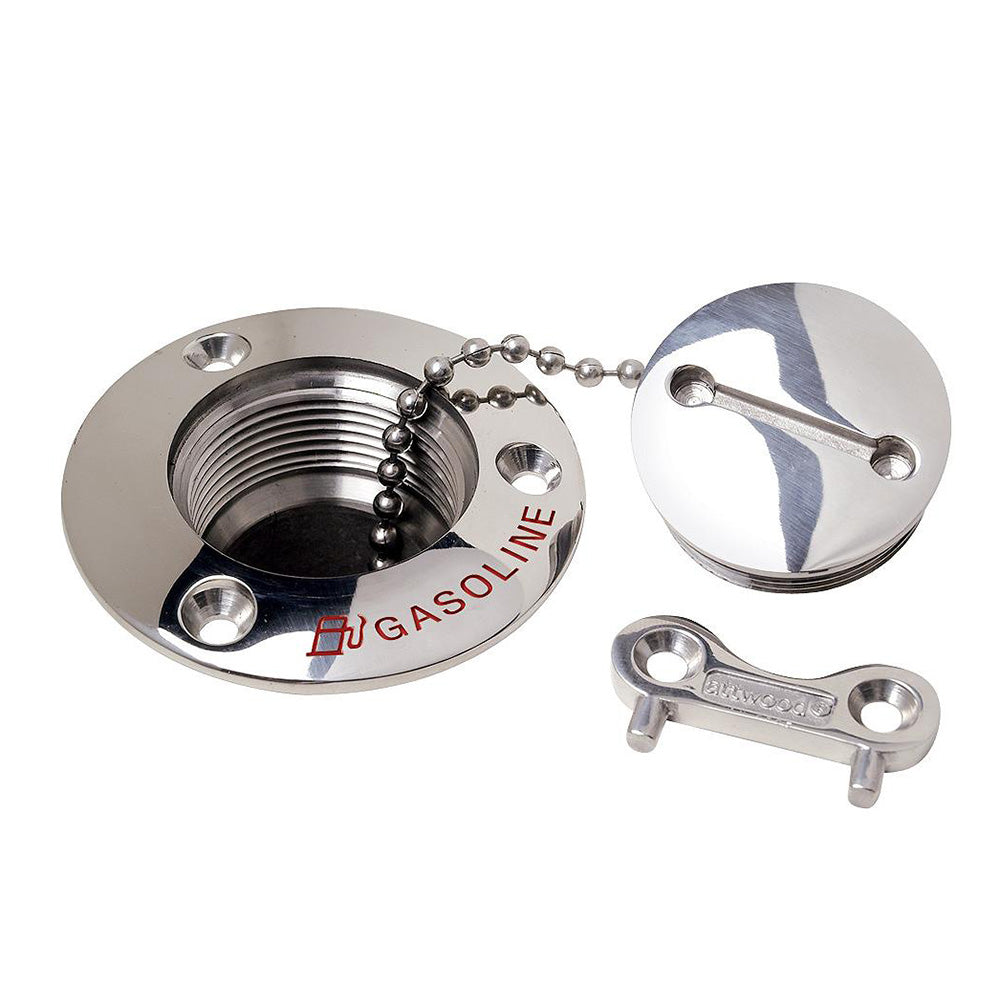

For 1-1/2 (inch) inner diameter hose. This deck fill is imprinted and color-coded to specify GASOLINE. The flush cap is slotted for a separate key and features an O-ring that seals the cap watertight. Cap is attached by a stainless steel, beaded chain. Long neck accommodates thick deck laminations. Key sold separately.

Features:

• Highly-polished finish
•  “Gasoline” imprint with Red Color Code (Not for use with EPA Certified systems)

Specifications:

• 3-1/4 (inch) Fill Neck Length
• 1-7/8 (inch) installation hole size
• 3-inch flange size
• Fits 1-1/2 (inch) I.D. Hose

*Requires a bonding wire to prevent sparking when the nozzle is inserted on gasoline and diesel models per USCG and ABYC H-24 requirements

Quick guide: https://productimageserver.com/literature/quickGuide/98372QG.pdf

Installation guide: https://productimageserver.com/literature/installations/98372IN.pdf
