Attwood Marine Tsunami MK2 T500 Manual Bilge Pump w/Installation Kit 500 GPH & 12V

Tsunami MK2 T500 Manual Bilge Pump with Installation Kit - 500 GPH & 12V

This is a complete kit (includes a bilge pump) to install a manual bilge pump with a 3/4" I.D. hose outlet. The Tsunami Mk2 is the only manual bilge pump that eliminates airlocks. This is done by the Patented X-Air™ Impeller, which ejects trapped air in the pump and pipework. Also, the Tsunami Mk2 is the most reliable manual bilge pump in freshwater applications, considering it has 40% better protection against water ingress and electrolysis vs. the Mk1 pump.

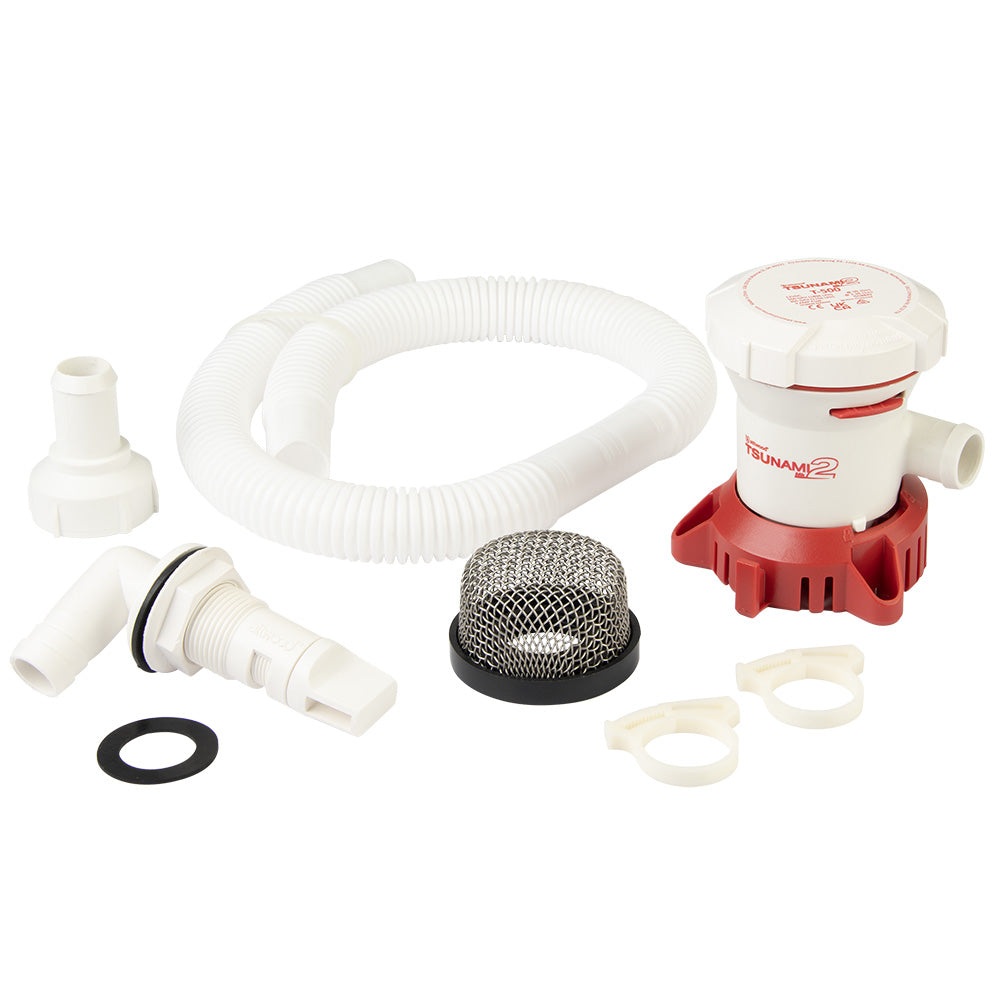

Kit Includes:

• Attwood Tsunami Mk2 500 GPH Pump
• Washer / Non-Return Valve
• 90-degree Outlet
• Straight Outlet
• 3/4" x 5' Pump Hose
• 3/4" Thru-hull fitting
• 2-way on/off switch with bezel plate
• Snap-It hose clamps
• Wire Kit
• Installation Kit

Easy Installation & Service:

• GPH (Gallons Per Hour): 500 GPH
• 90° rotatable elbow outlet allows users to install the pump anywhere in a full 360° orientation
• Backward compatible hole pattern and motor cartridges of Tsunami Mk1 bilge and aerator pumps
• External mounting feet and integrated outlets reduce time and effort
• Service pump cartridges from hard-to-reach areas using only one hand

Specifications:

• Rated Volts DC: 12VDC
• Fuse Size: 3 AMP
• Wire Length: (inch) 29" / (mm) 735mm
• Hose Diameter: (inch) 3/4" and 1"

*Caution: Bilge pump switches are not external ignition protected

Quick guide: https://productimageserver.com/literature/quickGuide/98324QG.pdf

Installation guide: https://productimageserver.com/literature/installations/98324IN.pdf
