Wichard Marine Webbing Eye strap 5mm Diameter 13/64" 65mm Spacing 2-9/16"

Webbing Eye strap - 5mm Diameter - 13/64" - 65mm Spacing - 2-9/16"

Features:

• Drop-forged webbing eye straps with high-quality stainless steel (316L)
• Outstanding strength
• Specific use for webbing

Applications:

• The perfect solution to attach webbing

Specifications:

• Materials: 316L stainless steel grade
• Weight: (lb) 0.029 / (lb) 0.029

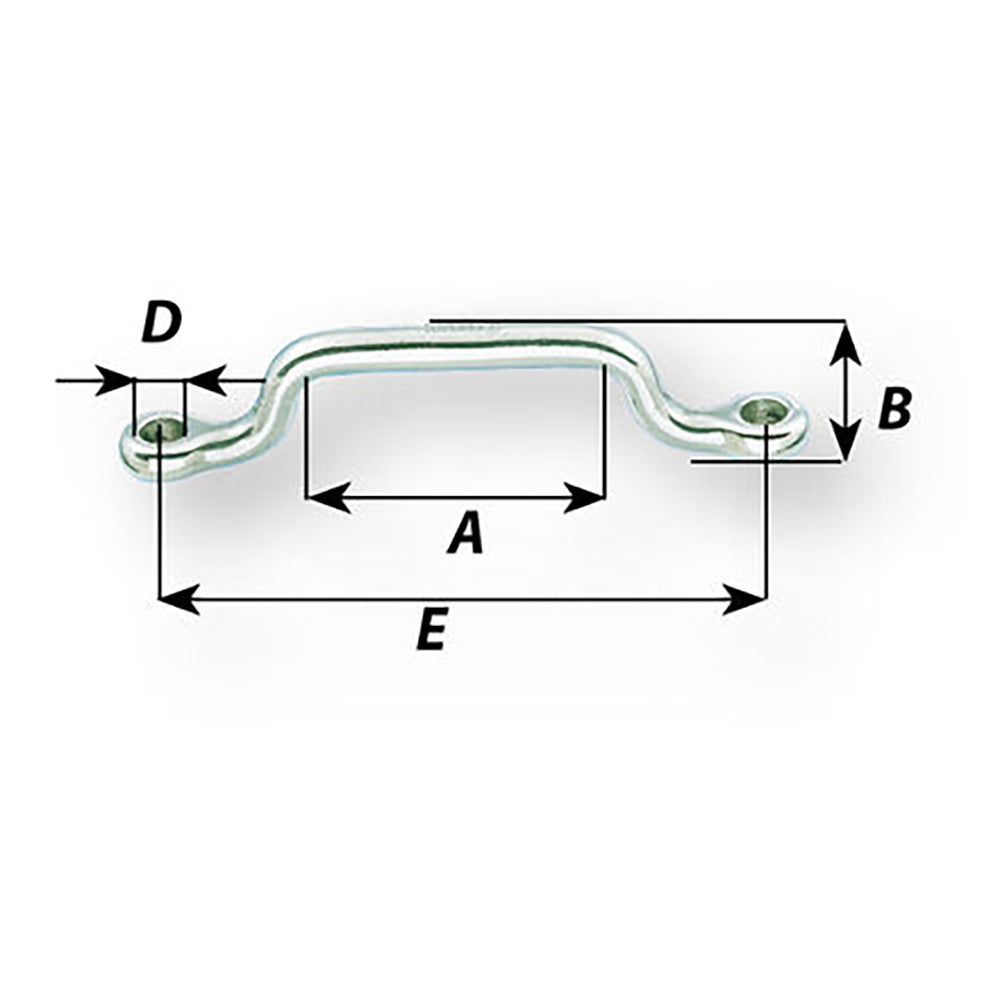

Dimensions:

• A: (inch) 1 11/32" / (mm) 34
• B: (inch) 25/64" / (mm) 10
• D diameter: (inch) 13/64" / (mm) 5
• E: (inch) 2 9/16" / (mm) 65

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick guide: https://productimageserver.com/literature/quickGuide/97704QG.pdf
