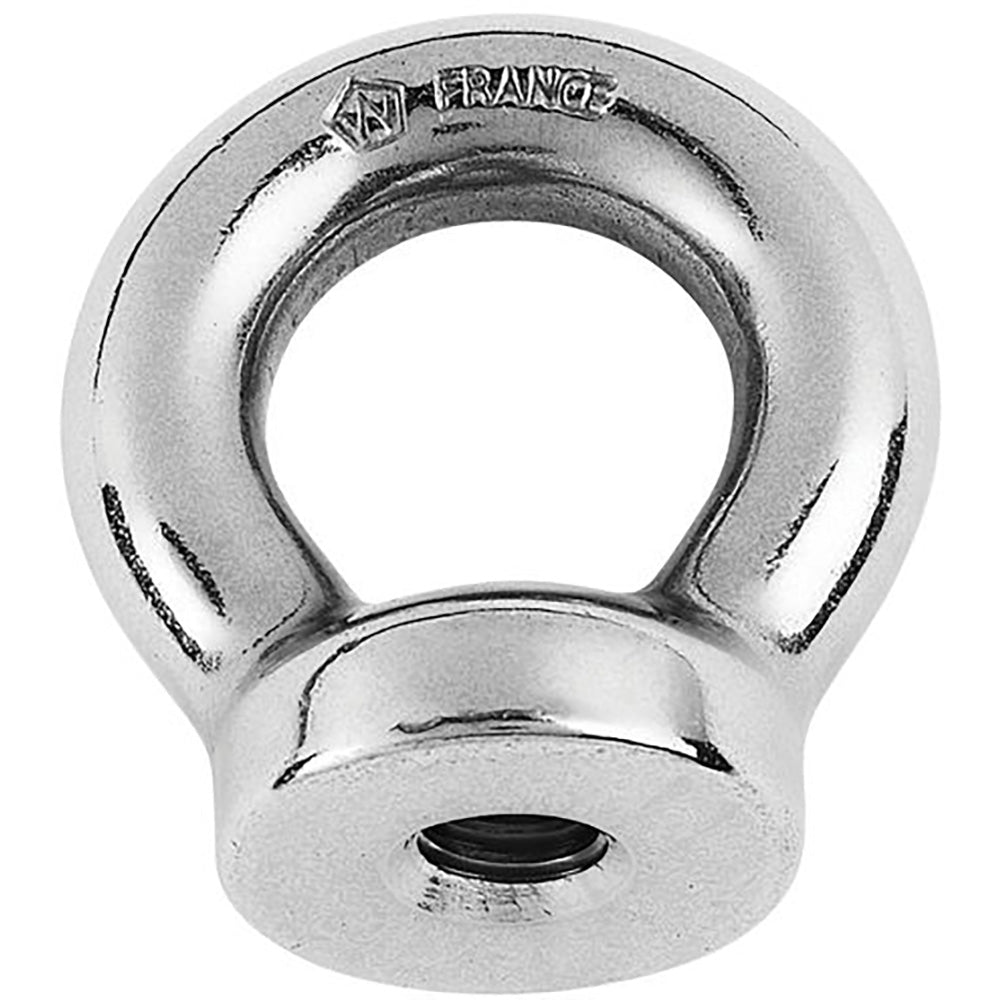

Wichard Marine 6mm Eye Nut 1/2" Diameter

6mm Eye Nut - 1/2" Diameter

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.049 / (g) 22

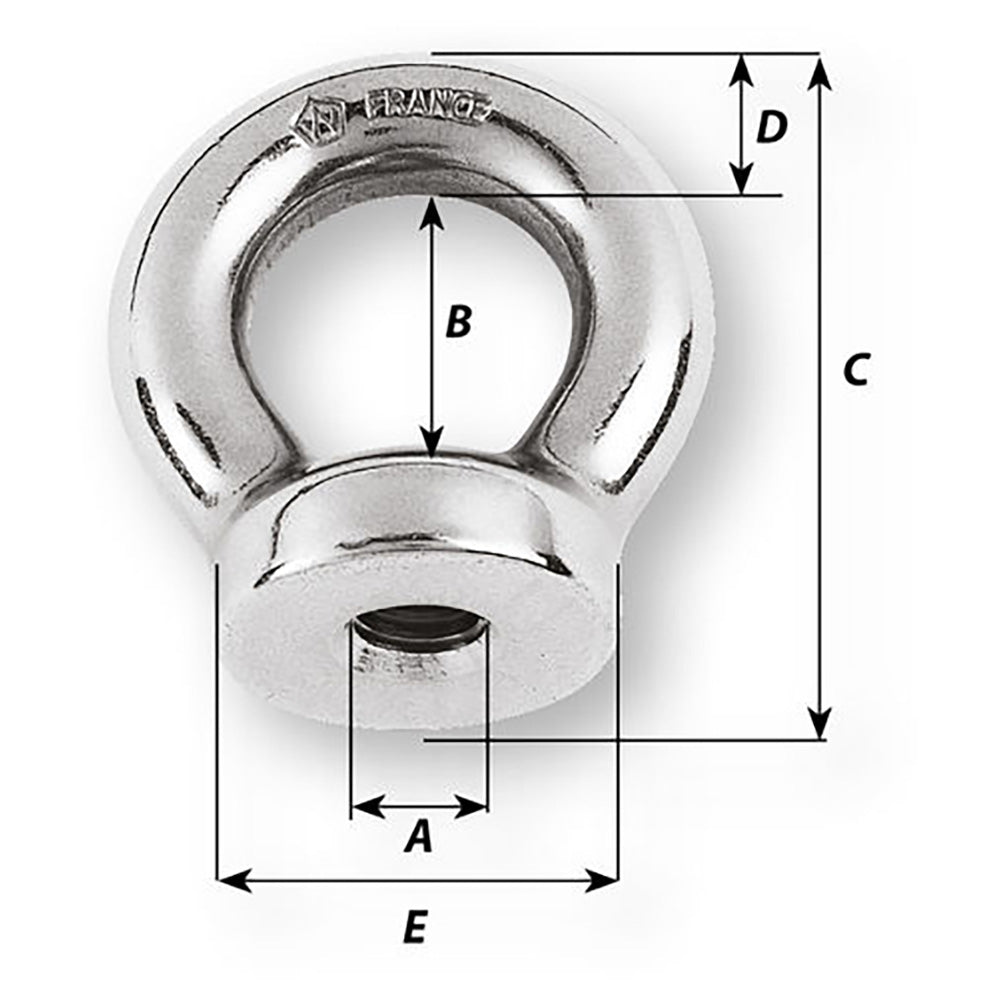

Dimensions:

• A: (inch) M6 x 100 / (mm) M6 x 100
• B: (inch) 33/64" / (mm) 13
• C: (inch) 1 1/16" / (mm) 27
• D: (inch) 15/64" / (mm) 6
• E: (inch) 43/64" / (mm) 17

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick guide: https://productimageserver.com/literature/quickGuide/97669QG.pdf
