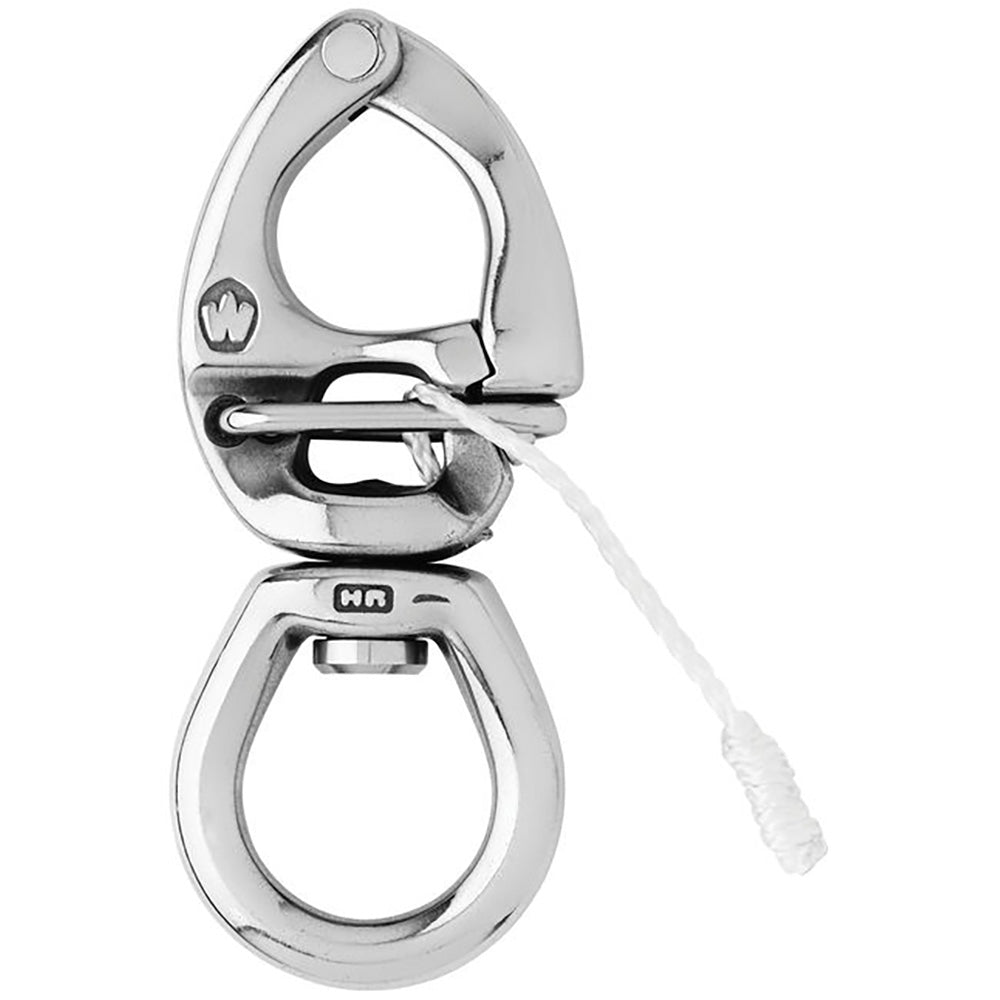

Wichard Marine HR Quick Release Snap Shackle With Large Bail 80mm Length 3-5/32"

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 1940 / (kg) 880
• Breaking load: (lb) 2860 / (kg) 1300
• Weight: (lb) 0.119 / (g) 54

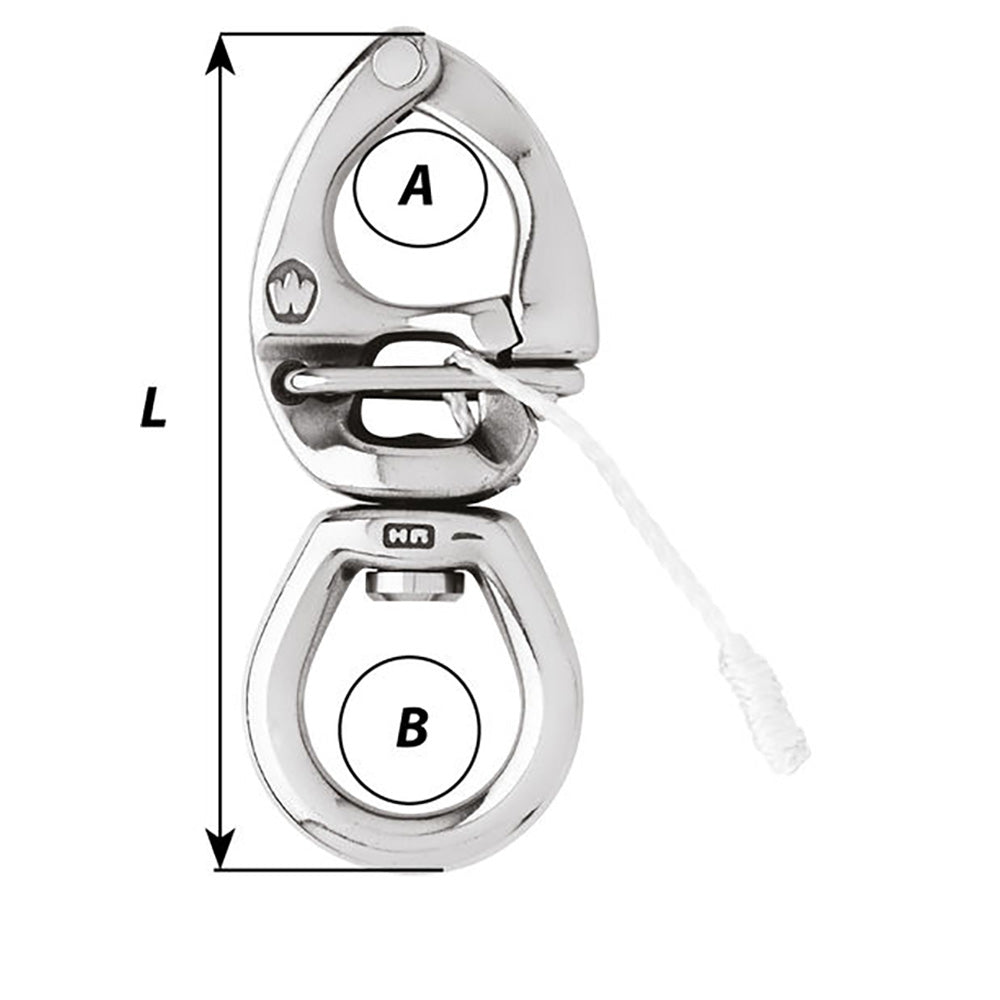

Dimensions:

• A: (inch) 35/64" / (mm) 14
• B: (inch) 3/4" / (mm) 19
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick guide: https://productimageserver.com/literature/quickGuide/97663QG.pdf
