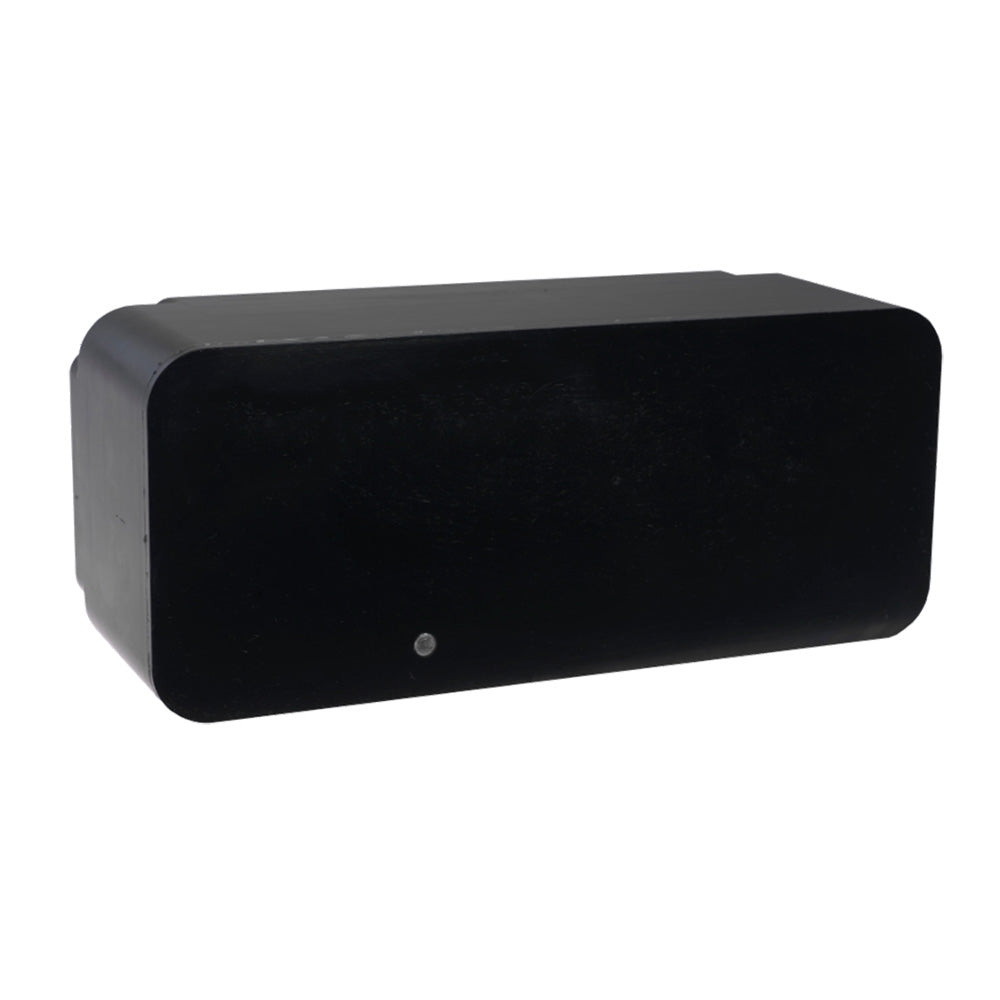

Airmar PM411C-LWM Ultra Wide Pocket Mount 2kW Transducer Low-Med Depth Temp No Connector

PM411C-LWM Ultra Wide Pocket Mount 2kW Transducer - Low-Med - Depth/Temp - No Connector

Today’s top billfish-tournament captains are calling Airmar’s PM411LWM their “go-to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beamwidth for a fantastic amount of fish-finding coverage under the boat. Coupling the low-frequency range of 40 to 60 kHz with the medium range of 80 to 130 kHz, this tournament-series transducer reveals more fish in the water column than ever before.

Features:

• The depth and fast-response water-temperature sensing
• 2 kW of power
• Low frequency: 40 to 60 kHz
• 40° beamwidth for ultra-wide coverage
• Maximum depth of 1219 m (4000')
• Medium frequency: 80 to 130 kHz
• 13° to 8° beamwidth
• Maximum depth of 914 m (3000')
• 70 kHz of total bandwidth from one transducer
• It covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Curved-edge design for wet-box installation
• Designed for custom pocket/keel/welded-tank mounting
• SEALCAST™, seamless, urethane housing for long life underwater
• Also available as a thru-hull external (R409LWM) mount
• Patented Xducer ID® technology
• MFG #41-806-1-02

Brochure: https://productimageserver.com/literature/brochure/96659BR.pdf

Installation guide: https://productimageserver.com/literature/installations/96659IN.pdf
