Wichard Marine Key Pin Shackle Diameter 5mm 3/16"

Key Pin Shackle - Diameter 5mm - 3/16"

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 880
• Breaking load (lb) 2200
• Weight (lb) 0.068

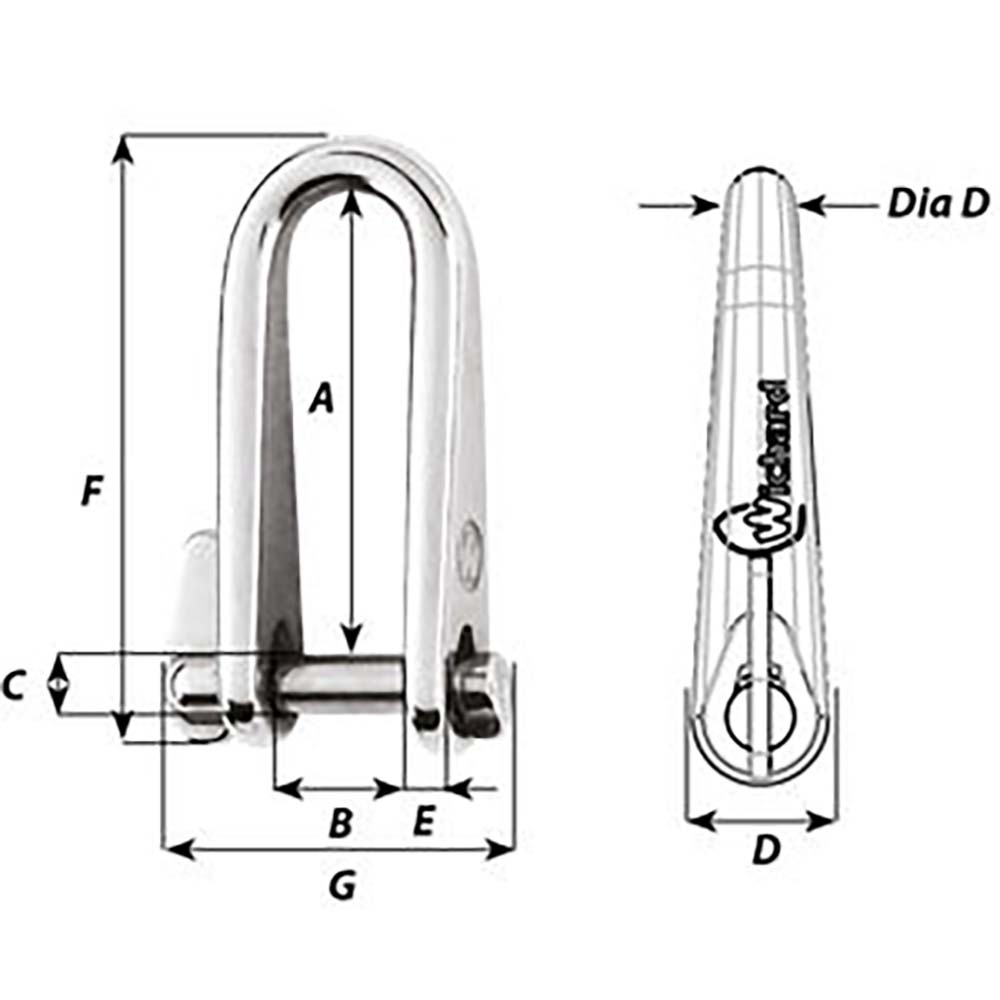

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 33/64"
• C (inch) 13/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 5/32"
• F (inch) 1-59/64"
• G (inch) 1-7/32"
