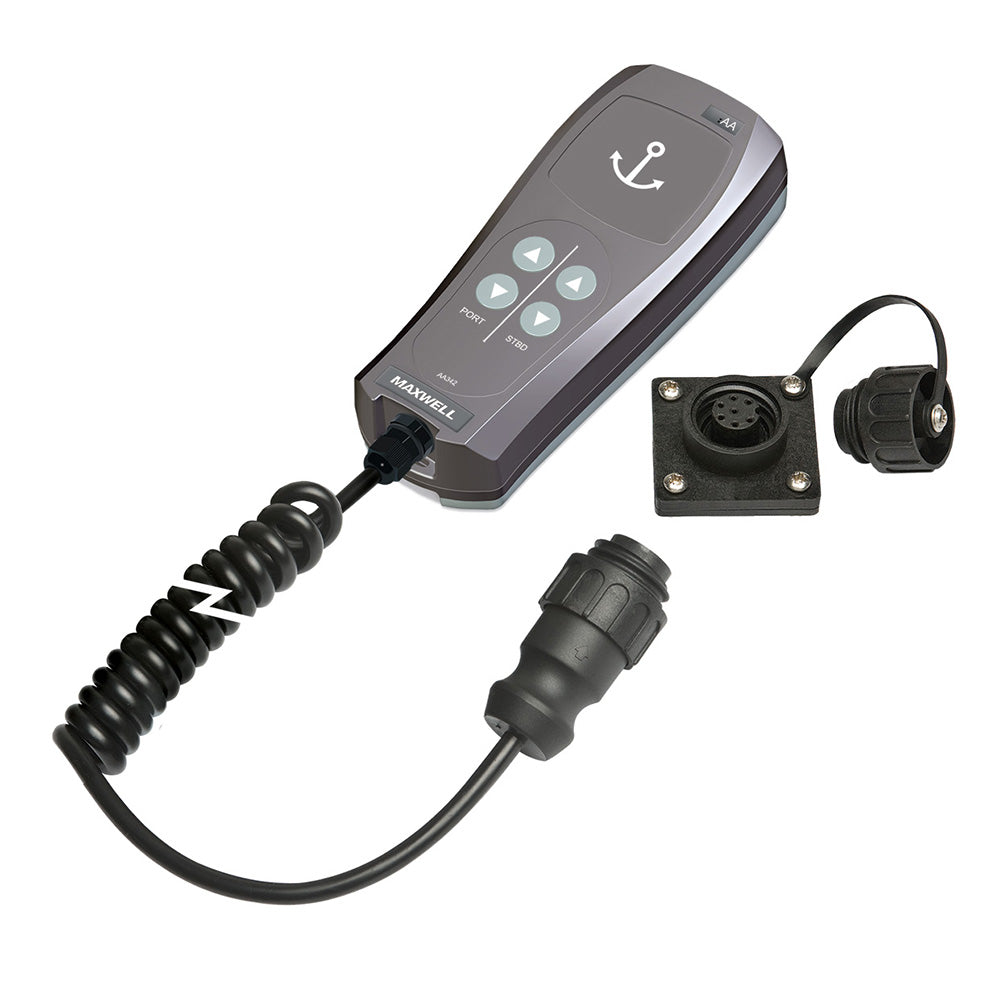

Maxwell AA342 Remote f/Dual Windlasses 4 Outputs

AA342 Remote for Dual Windlasses - 4 Outputs

This is a handheld wired roving dual windlass controller. The remote has 4 outputs unit that can be installed to meet your specific requirements.

Features:

• 2 buttons up and 2 buttons down Designed for dual windlass control

Specifications:

• Maximum Operating Voltage: 25V AC (RMS) / 30VDC
• Contact Current Rating: SA Resistive Load / 3A Inductive Load
• Operating Temperature Range: -15° C to 70° C (23° to 140° F)
• IP Rating1: IP67
• Dimensions Handset (HxWxD): 5.92" X 2.53" X 1.87'' (150.36 mm x 64.37 mm x 47.42 mm)
• Standard Cable Extension: 11.5 ft / 3.5 m
• Flying Lead from Deck Socket: 6.5 ft. / 2 m

Owner's manual: https://productimageserver.com/literature/ownersManual/89912OM.pdf
