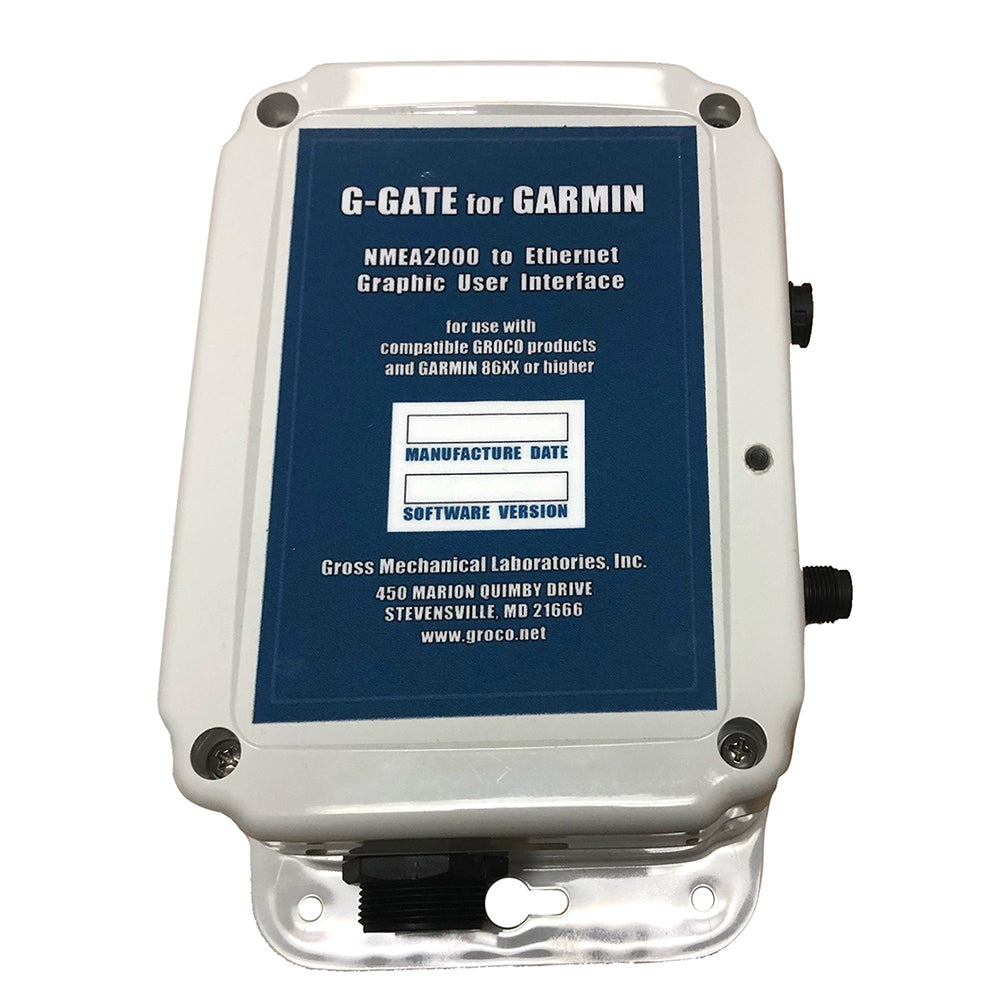

Groco G-Gate Hub Groco to Garmin

G-Gate Hub GROCO to Garmin

G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.

Power Requirements & Limits:

• For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
• For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
• Electronics voltage protection limit = 30VDC
• Typical current draw = 1 amp, 3 amps peak and inrush
