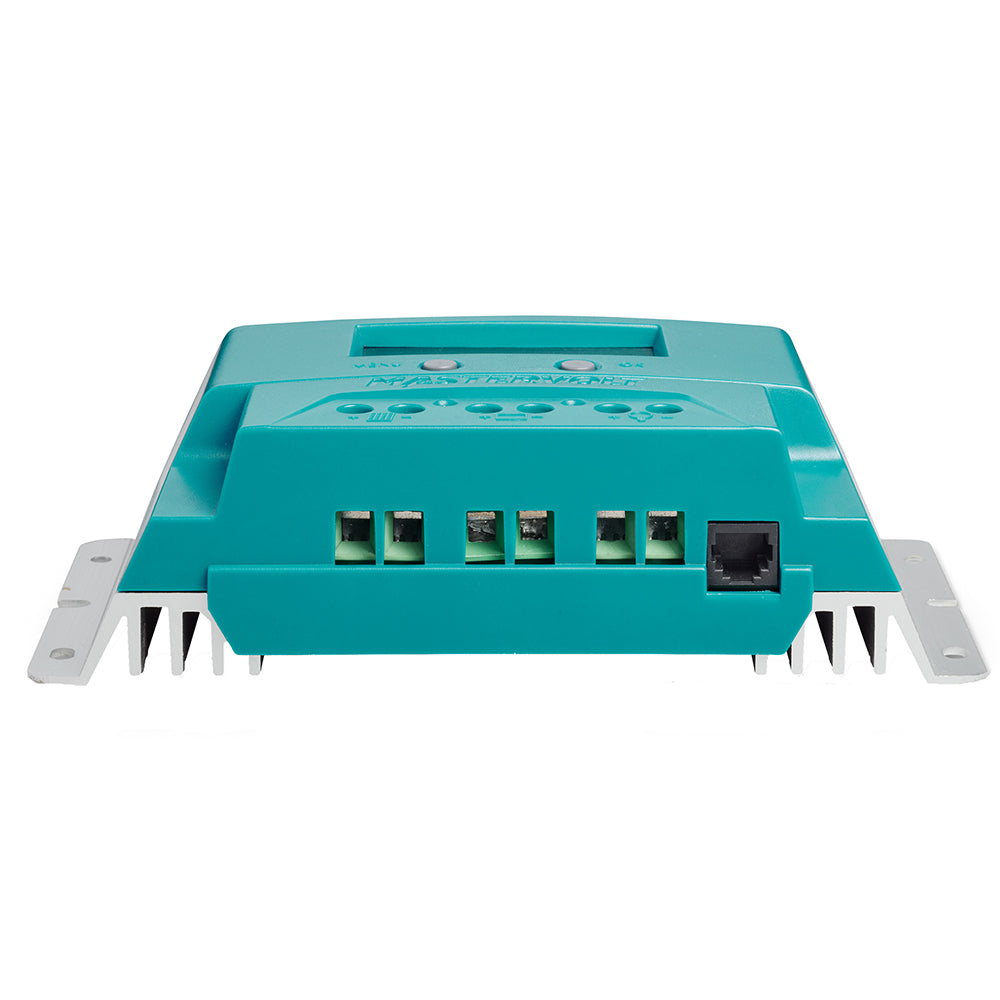

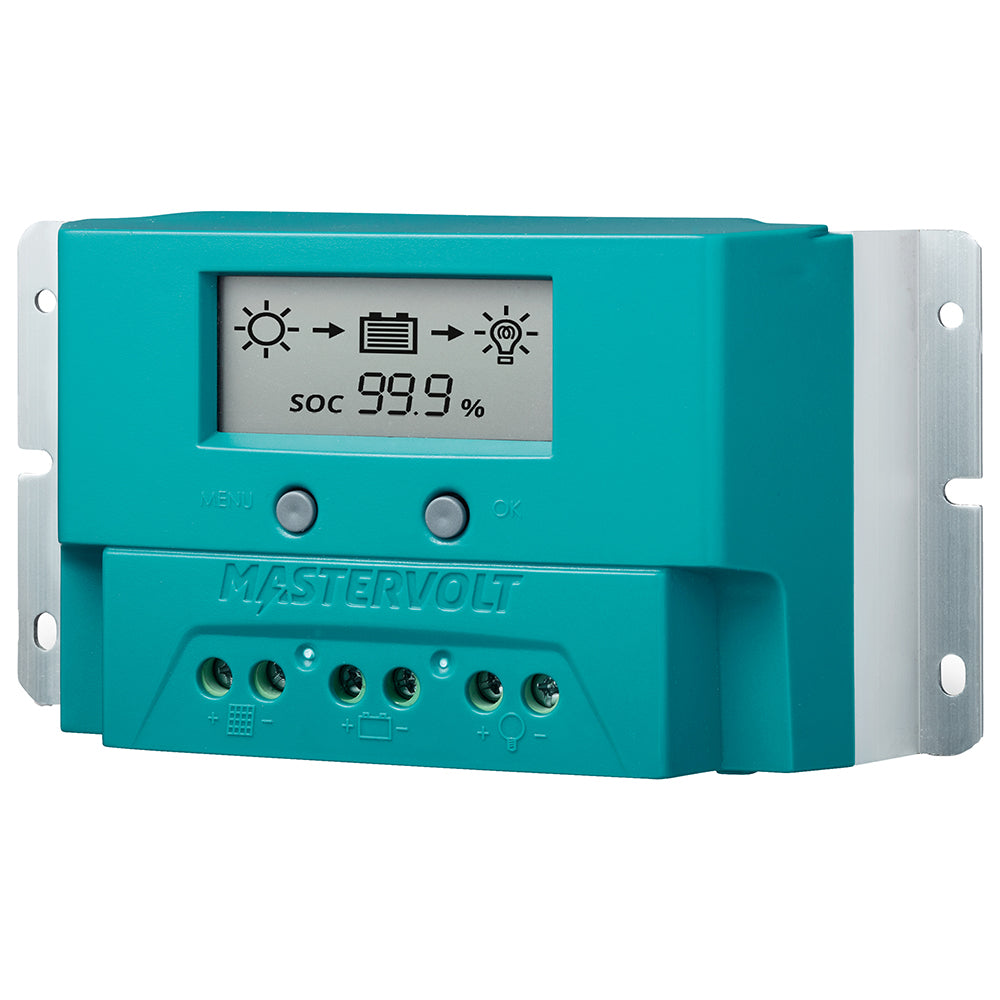

Mastervolt SCM40 PWM

SCM40 PWM

Features:

• High efficiency: your batteries are charged quickly
• Capacity for solar panel configurations of up to 3600 Wp
• Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries
• Fast and flexible setting of battery type
• Battery temperature sensor for long lifespan
• Automatic 12V and 24V detection
• Switchable output
• Noiseless operation
• LCD display
• Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity

Specifications:

• System Voltage Battery: 12/24V auto select
• Battery Types: AGM, gel, wet, Lithium Ion
• Battery Temp Sensor: Yes
• Max Charge Current at 25 degrees C/77 degrees F: 40A
• Switchable Output (Max Current): 40A
• Energy Comsumption (night): 4 mA
• Communication: PC-Link (optional)
• Cooling: passive
• Display/Read-Out: LCD display with battery state of charge, status output, battery setting
