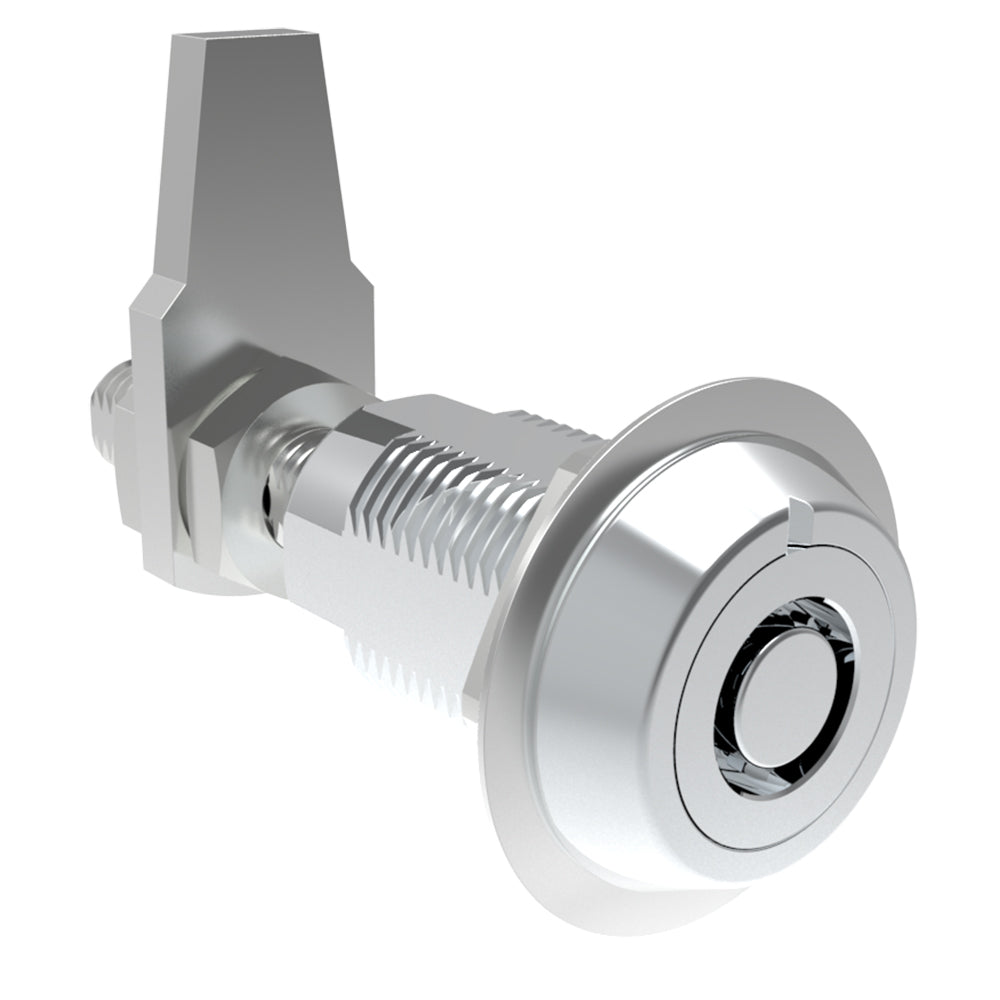

Southco Compression Latch Large Vise Action Stainless Steel Passivated Silver

Compression Latch Large Vise Action Stainless Steel Passivated Silver

Specifications:

• Material: Stainless Steel
• Finish: Passivated
• Color/Appearance: Silver
• Access Restriciton: Key Locking
• Access Restriction: Tool
• Grip Type: Adjustable
• Mounting Style: Single Hole Mount
• Max. Outer Panel Thickness: 18.000 mm (0.71")
• Min. Outer Panel Thickness: 1.000 mm (0.04")
• Head Style: Southco Tubular Key
• Cam Attached: No
• Rotation: Type A - Turn Clockwise to Latch
• Size Series: 19.1 mm
• Compliance Specification: UL FTTA2/FTTA8 Type 1
• Grip - Maximum: 59.600 mm (2.35")
• Grip - Minimum: 43.900 mm (1.73")

Quick guide: https://productimageserver.com/literature/quickGuide/80612QG.pdf
