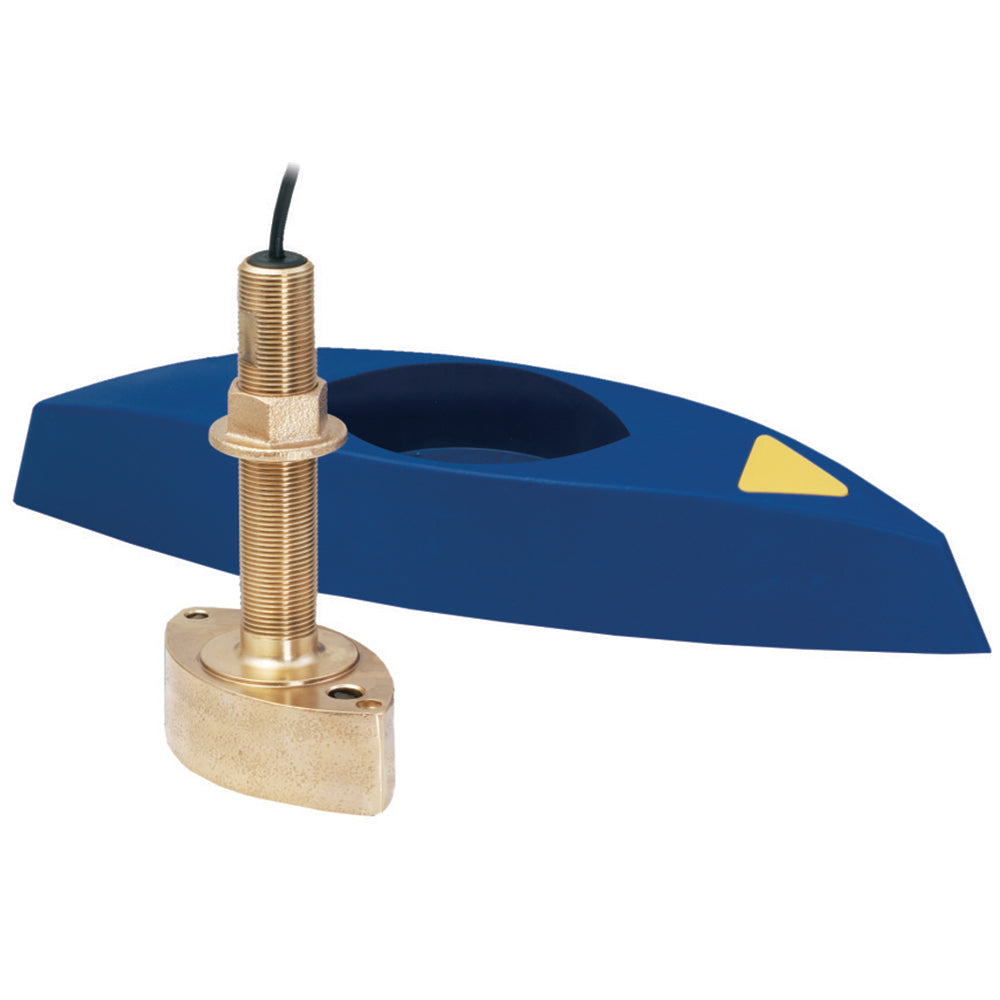

Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector

B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector

The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images.

Features:

• Bronze housing
• Depth and Temperature
• Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
• Good sensitivity in a compact housing
• Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
• High-Performance Fairing included
• Usable Shaft Length: 92 mm (3.62”)
• Standard fairing block
• Frequency: 50/200 kHz
• Maximum Depth Range:

• 50 kHz—235 m to 353 m (800’ to 1,200’)
• 200 kHz—118 m to 206 m (400’ to 700’)

• Cone: 50 kHz—45°, 200 kHz—12°
• RMS Power: 600 W

Brochure: https://productimageserver.com/literature/brochure/73082BR.pdf

Installation guide: https://productimageserver.com/literature/installations/73082IN.pdf
