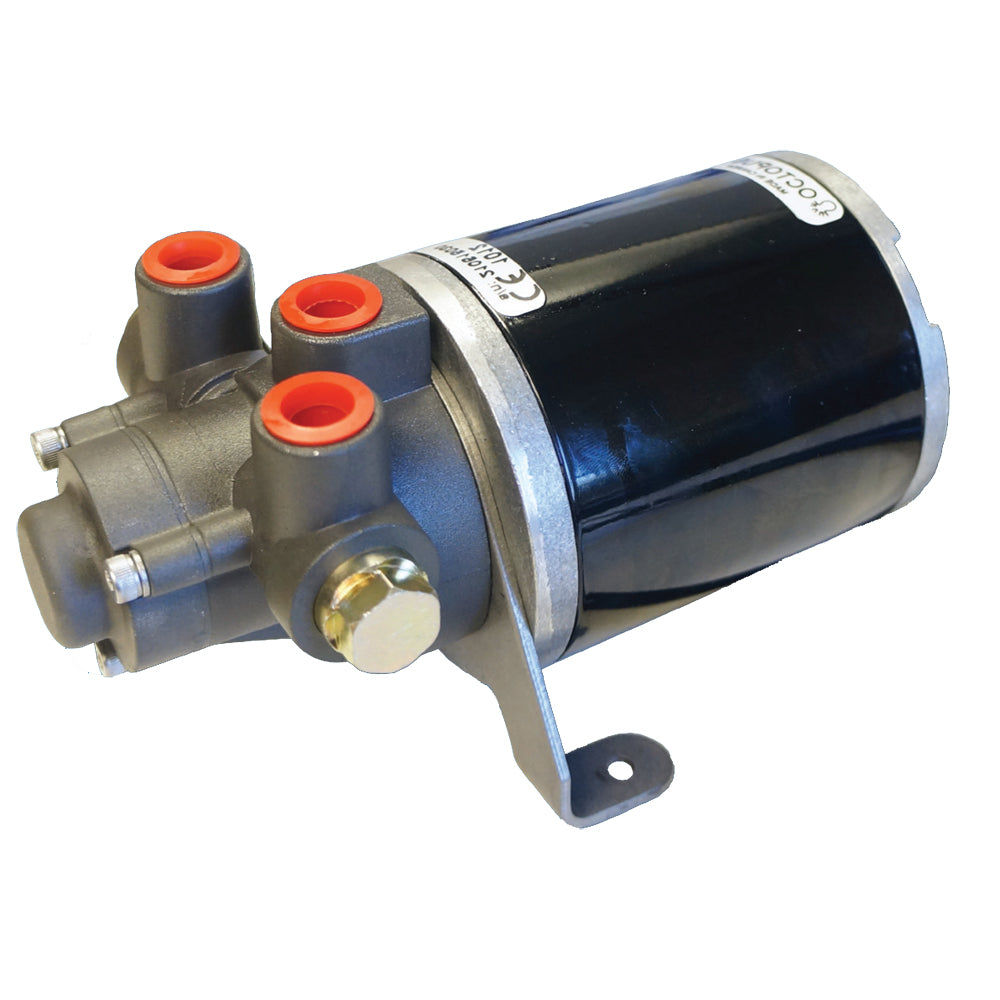

Octopus Autopilot Drives Hydraulic Gear Pump 12V 6-9CI Cylinder
Part # CWR-58834
$679.12
Out of stock
Hydraulic Gear Pump 12V 6-9CI Cylinder
From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.
Features:
Specifications:
From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.
Features:
- Industry leading efficiency - lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.
- Cost saving - the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.
- The smaller footprint of the compact gear pump increases installation flexibility.
- Lower noise and vibration make the gear pump particularly suitable for sailboat installations.
- Suitable for balanced or unbalanced cylinders.
- All models available for both 12v and 24v systems.
Specifications:
- Flow Rate: 600CC/min
- Voltage: 12 Volt
- Cylinder Range: 6-9ci CYLINDER
- Average Current Draw: 3.8A
- Operating Temperature: -15 to +75'C (5 - 167'F)
- Waterproofing: IP55
- Ignition Protection: ISO 8846 & SAEJ1171
- EMC Compliance: EN60945-9-2002
Quick guide: https://productimageserver.com/literature/quickGuide/58834QG.pdf
