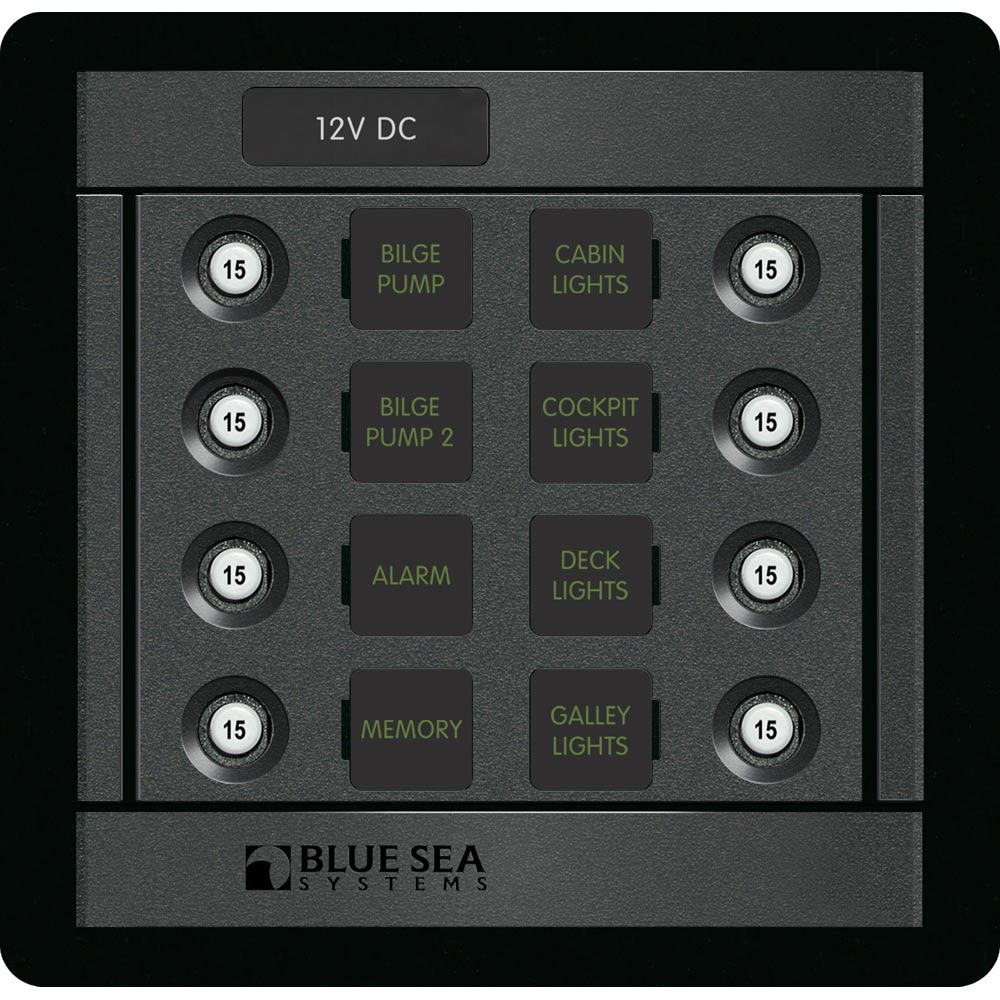

Blue Sea Systems 1450 DC 8 Position CLB Square

DC 8 Position CLB Square

Features:

• High-density circuit protection

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC / 24V DC

• Maximum Amperage*: 90A

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 1.25lb (0.57kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7056 - Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick guide: https://productimageserver.com/literature/quickGuide/57219QG.pdf

Owner's manual: https://productimageserver.com/literature/ownersManual/57219OM.pdf
