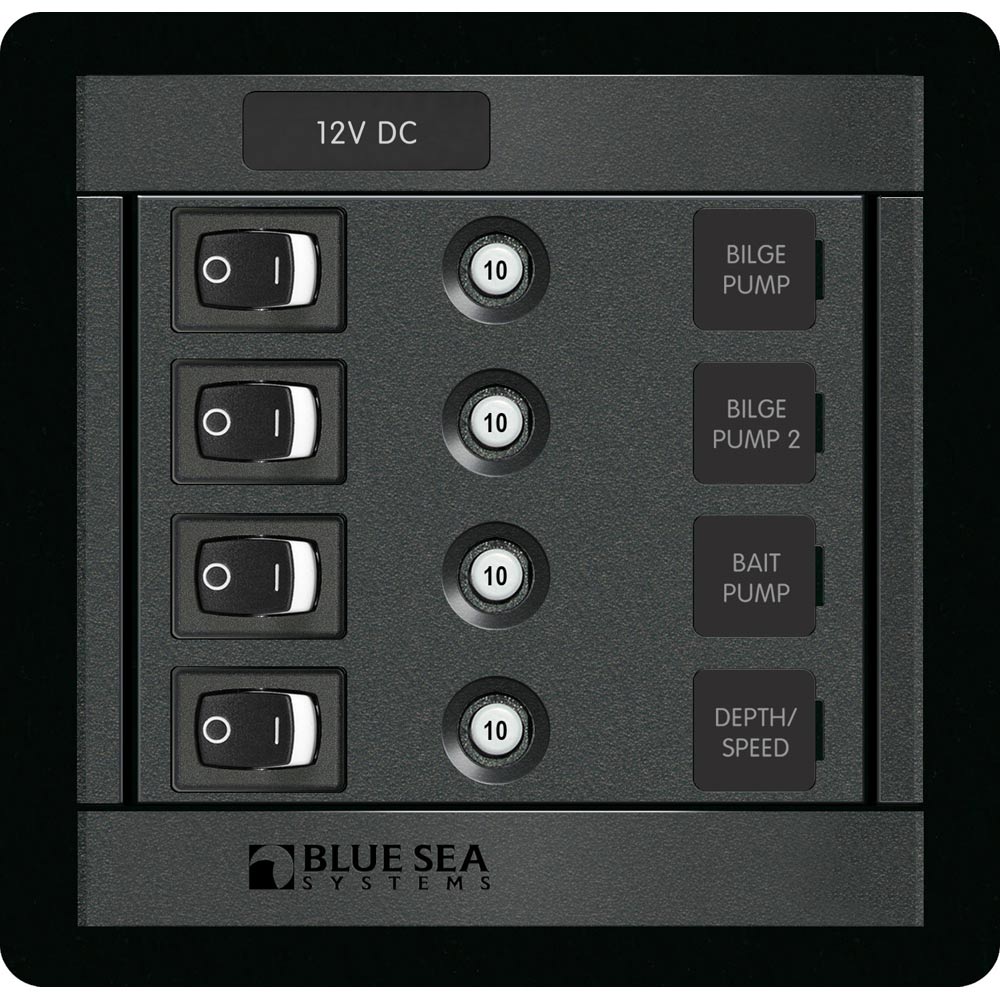

Blue Sea Systems 1455 4 Position Switch CLB Square

4 Position Switch CLB Square

Provides circuit protection and switching in a compact and economical panel

• Available with voltmeters and ammeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 4

• Nominal Voltage: 12V DC

• Maximum Amperage*: 40A

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 1.05lb (0.48kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(4) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(4) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's manual: https://productimageserver.com/literature/ownersManual/57218OM.pdf
