Scanstrut DS6-P Vertical Cable Seal

DS6-P Vertical Cable Seal

Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.

Features:

• Watertight installation - 100% waterproof with an IP68 rating
• Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.
•  Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield.

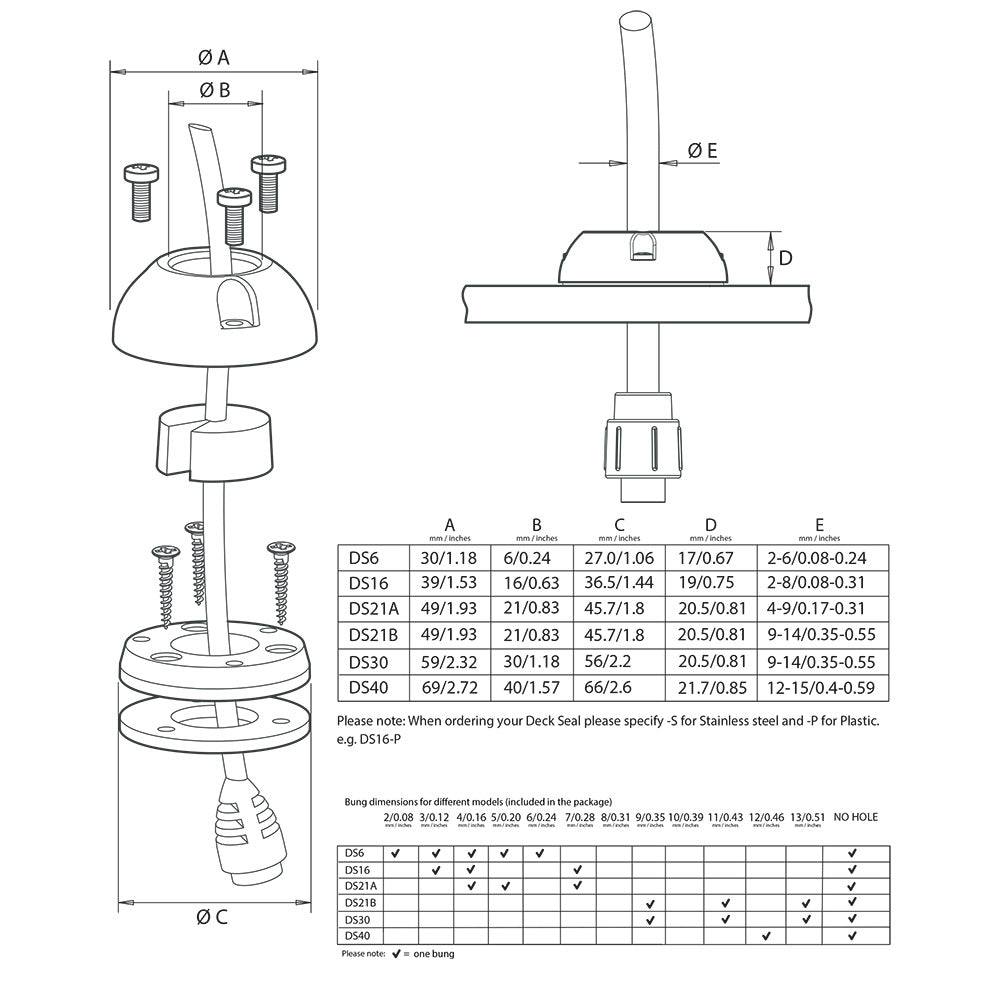

Technical Specifications:

• Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
• Fits connector size up to .24" (6 mm) in diameter
• Height - .67" (17 mm)
• Color - Grey
• Orientation - Vertical
• Material - ASA Plastic

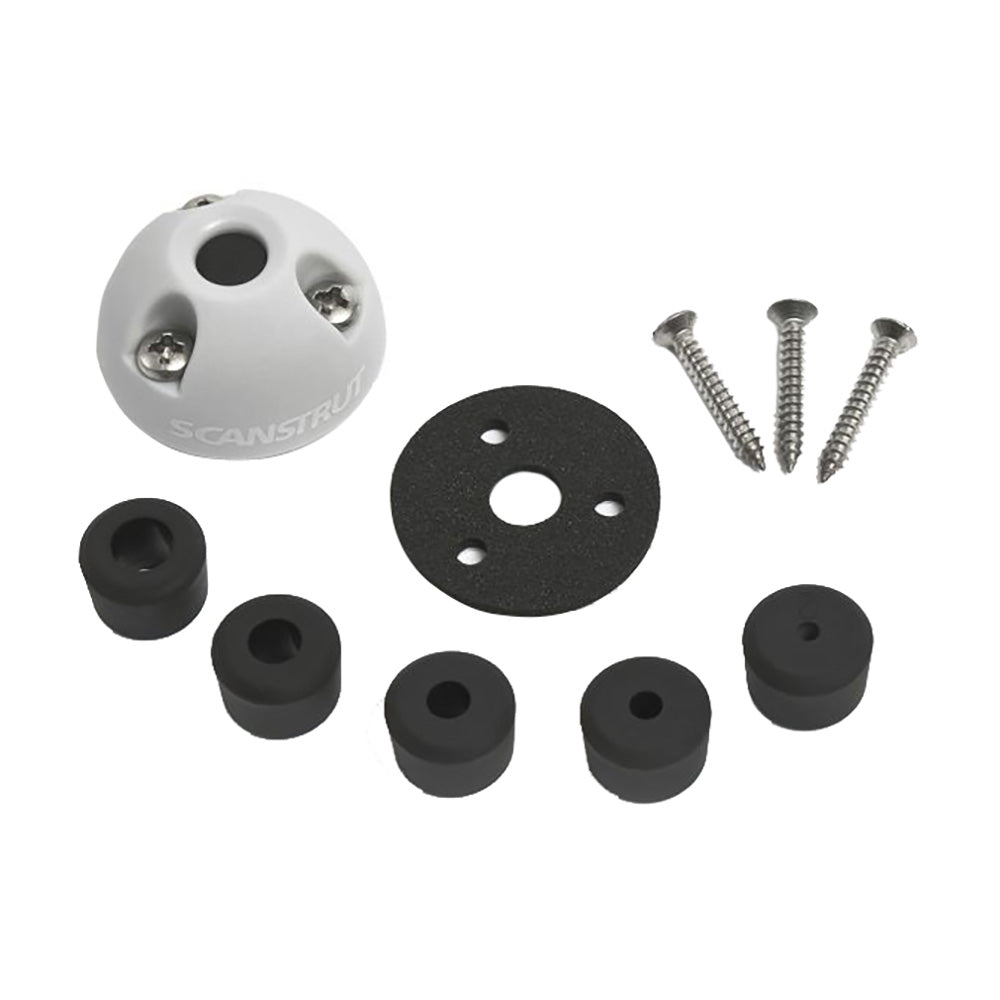

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Quick guide: https://productimageserver.com/literature/quickGuide/56151QG.pdf

Brochure: https://productimageserver.com/literature/brochure/56151BR.pdf

Installation guide: https://productimageserver.com/literature/installations/56151IN.pdf

Video: https://www.youtube.com/embed/4yWPAtmvnyg
