Navico

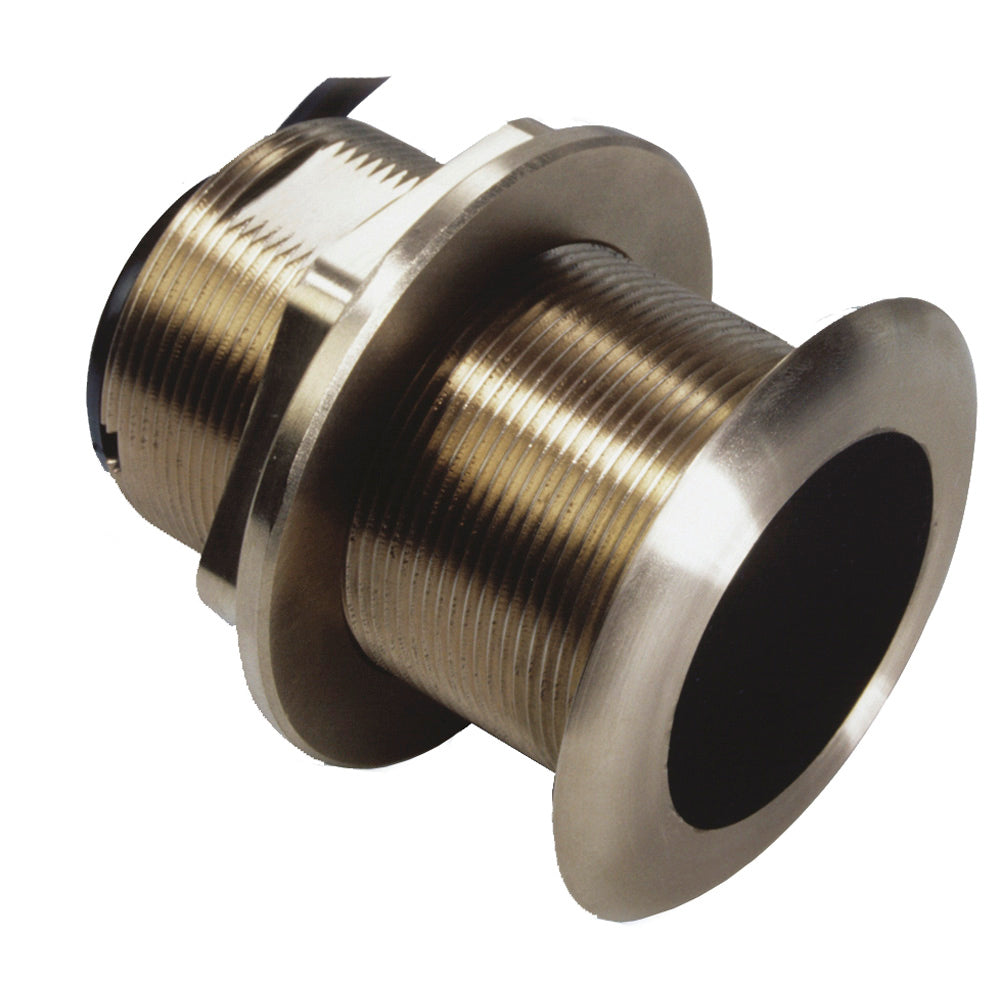

Navico B60-20, 20° Tilted Element Transducer
Part # CWR-31539
$439.99
Out of stock
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
Owner's manual: https://productimageserver.com/literature/ownersManual/31539OM.pdf
Brochure: https://productimageserver.com/literature/brochure/31539BR.pdf
