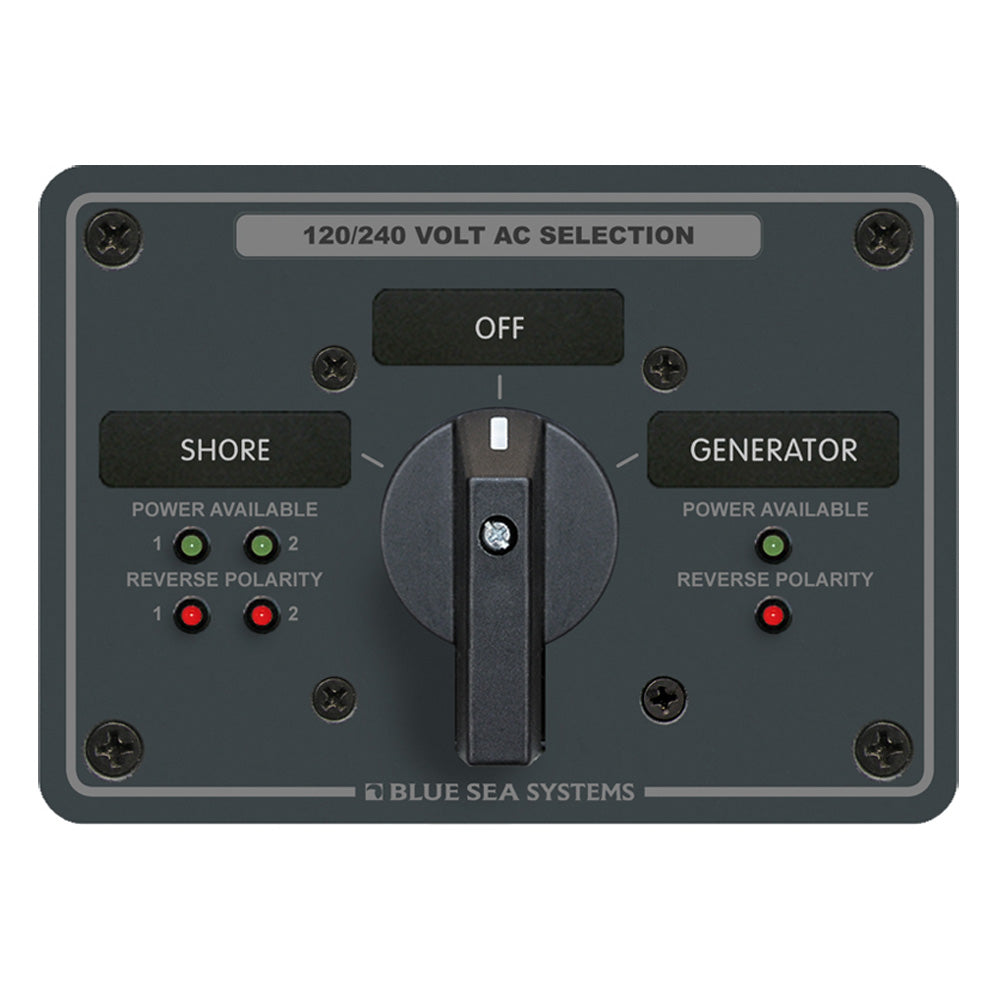

Blue Sea Systems AC Rotary Switch Panel 65AMP 2 Positions + OFF 4 Pole

AC Rotary Switch Panel 65 AMP - 2 Positions + OFF - 4 Pole

Features:

• Switches between 2-120V AC shore power sources
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
• Red reverse polarity LED indicators
• Green power available LED indicators
• Switches AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two or three different AC sources to one circuit
• Includes heavy duty industrial-rated switch
• Red reverse polarity LED indicators
• Green power-available LED indicators

Specifications:

• Positions: 2 + Off
• Nominal Voltage: 240v AC
• Poles: 4
• Maximum Amperage: 65A
• Source In: 3
• Height: 3.75"
• Width: 5.25"
• Depth: 4.5"

Included:

• (1) 9093 AC Rotary Switch - OFF + 2 Positions 120/240v AC 65A
• (1) 9583 AC Rotary Panel Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's manual: https://productimageserver.com/literature/ownersManual/16387OM.pdf
