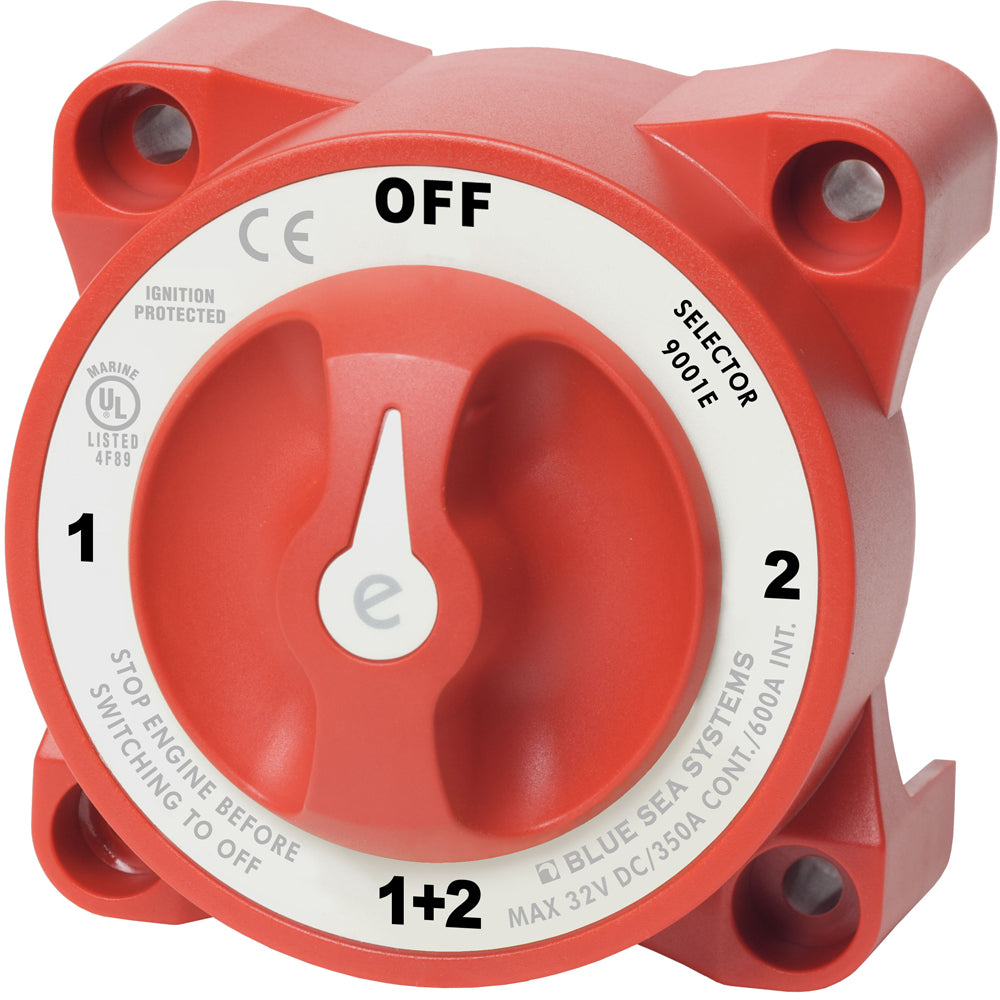

Blue Sea Systems 9001e e-Series Battery Switch Selector

9001e e-Series Battery Switch Selector

Features:

• Make-before-break contact design allows switching between battery banks without power interruption
• CE Marked
• Ignition protected - Safe for installation aboard gasoline powered boats

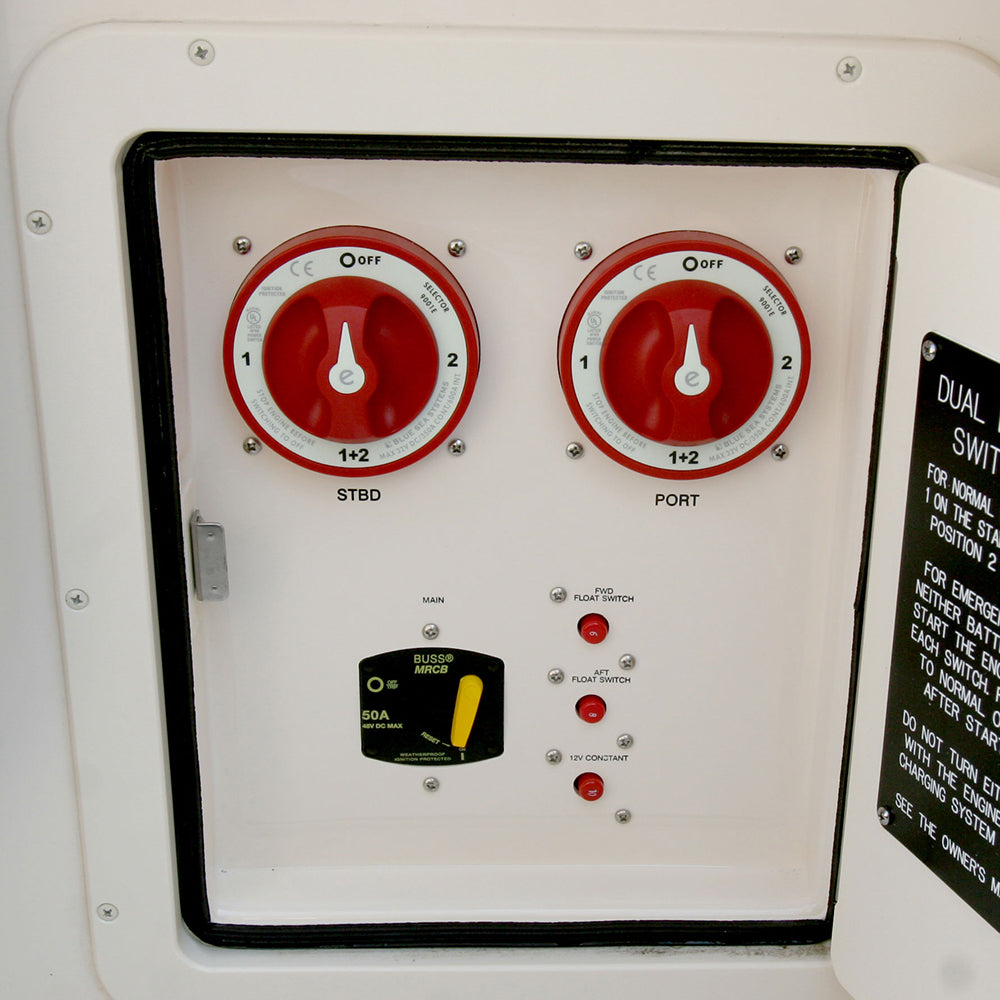

• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches

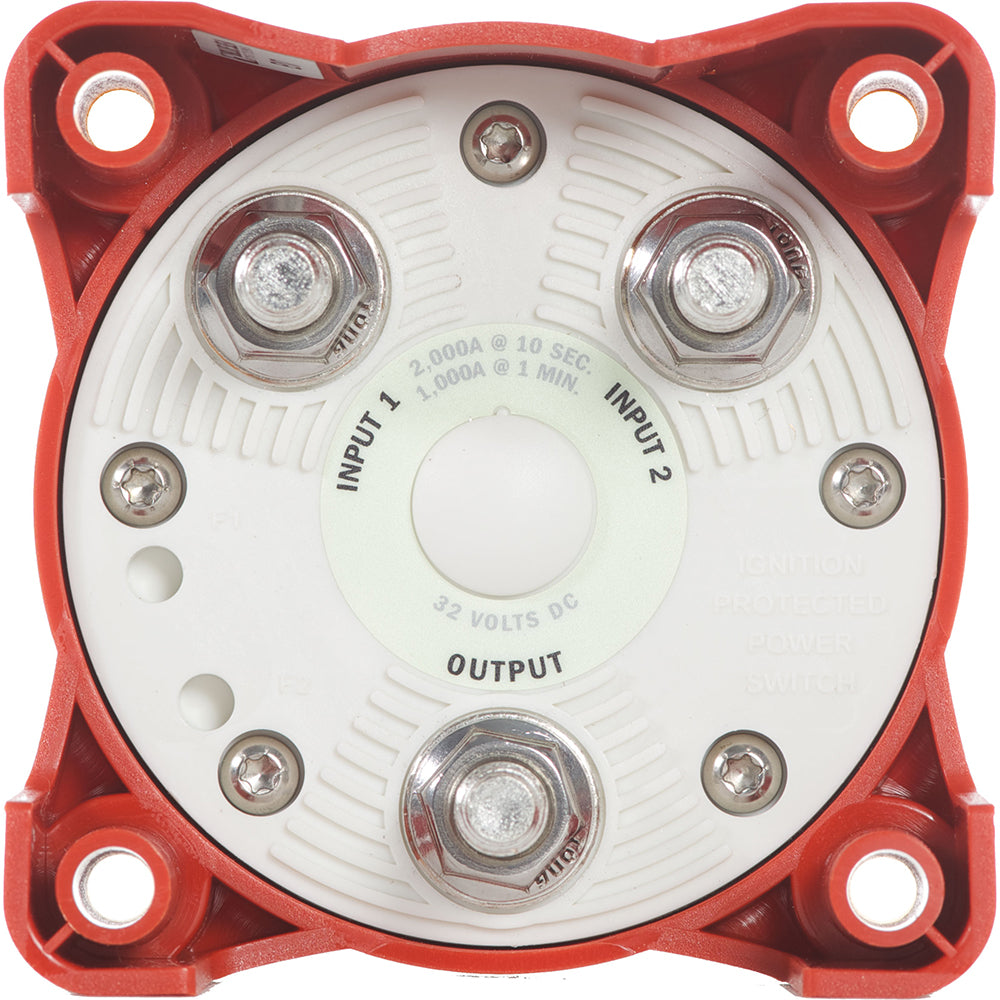

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's manual: https://productimageserver.com/literature/ownersManual/14580OM.pdf

Brochure: https://productimageserver.com/literature/brochure/14580BR.pdf
