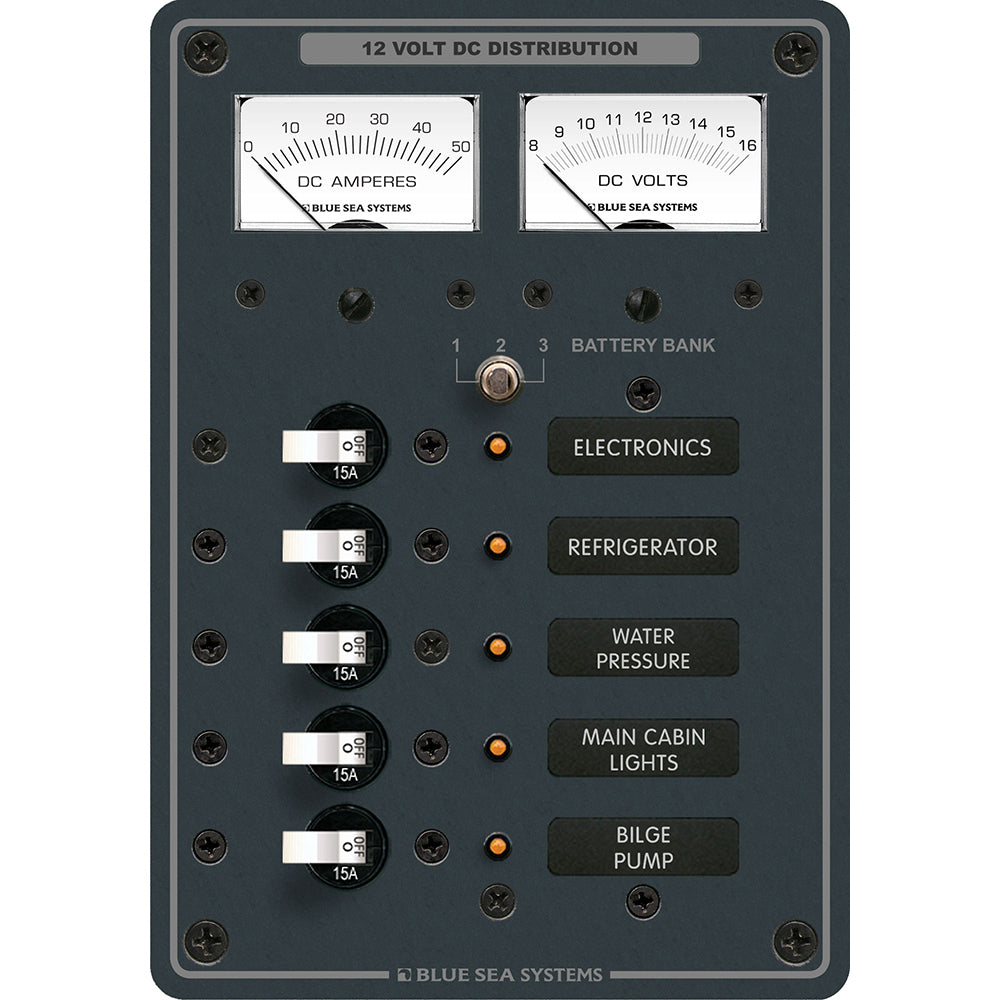

Blue Sea Systems 8081 DC 5 Position Toggle Branch Circuit Breaker Panel White Switches

8081 DC 5 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 5
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 7.5"
• Width: 5.25"
• Depth: 2.5"
• Weight: 2.25 lbs

Included:

• (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's manual: https://productimageserver.com/literature/ownersManual/13980OM.pdf
