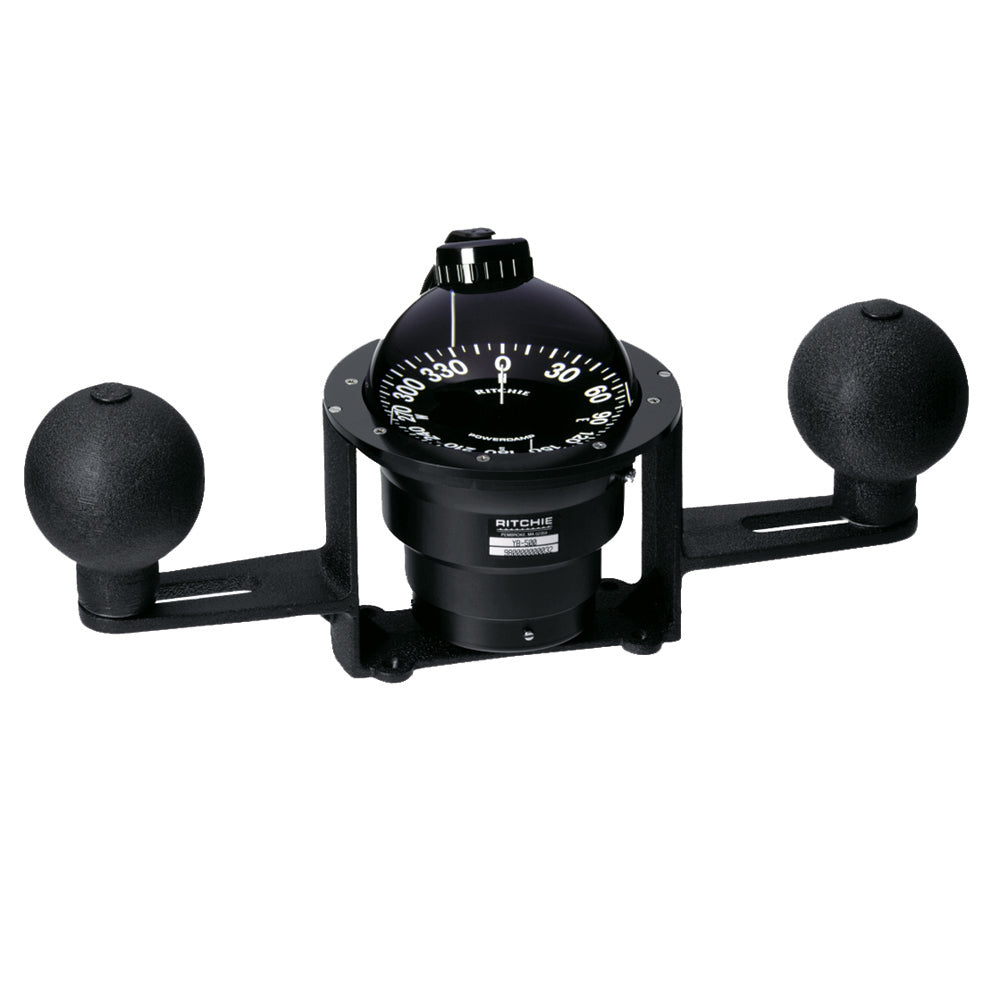

Ritchie YB-600 Globemaster Steel Boat Compass w/5° Card 12V Yoke Mounted Black

YB-600 Globemaster Steel Boat Compass with 5° Card - 12V - Yoke Mounted - Black

Features:

• Large, Easy to Read 6″ (152 mm) Open Face Dial
• Choice of 2 degree with points or 5 degree.
• Easily Installed
• Hardened Steel Pivot and Sapphire Jewel Movement
• 90 Degree Lubber Lines for Easy Reading
• Built-in Semi-Circular Compensators
• 4 inch quadrantal correctors are standard. Larger correctors are available.
• Choice of Green or Red lighting in 12, 24, or 32 Volts
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 27 lbs. (8.16 kg)

* Available upon request with the following specifications:

• 2 degree card with points / 2 degree card without points
• Red lighting
• 24 or 32 volt versions

Quick guide: https://productimageserver.com/literature/quickGuide/13479QG.pdf

Owner's manual: https://productimageserver.com/literature/ownersManual/13479OM.pdf

Installation guide: https://productimageserver.com/literature/installations/13479IN.pdf
