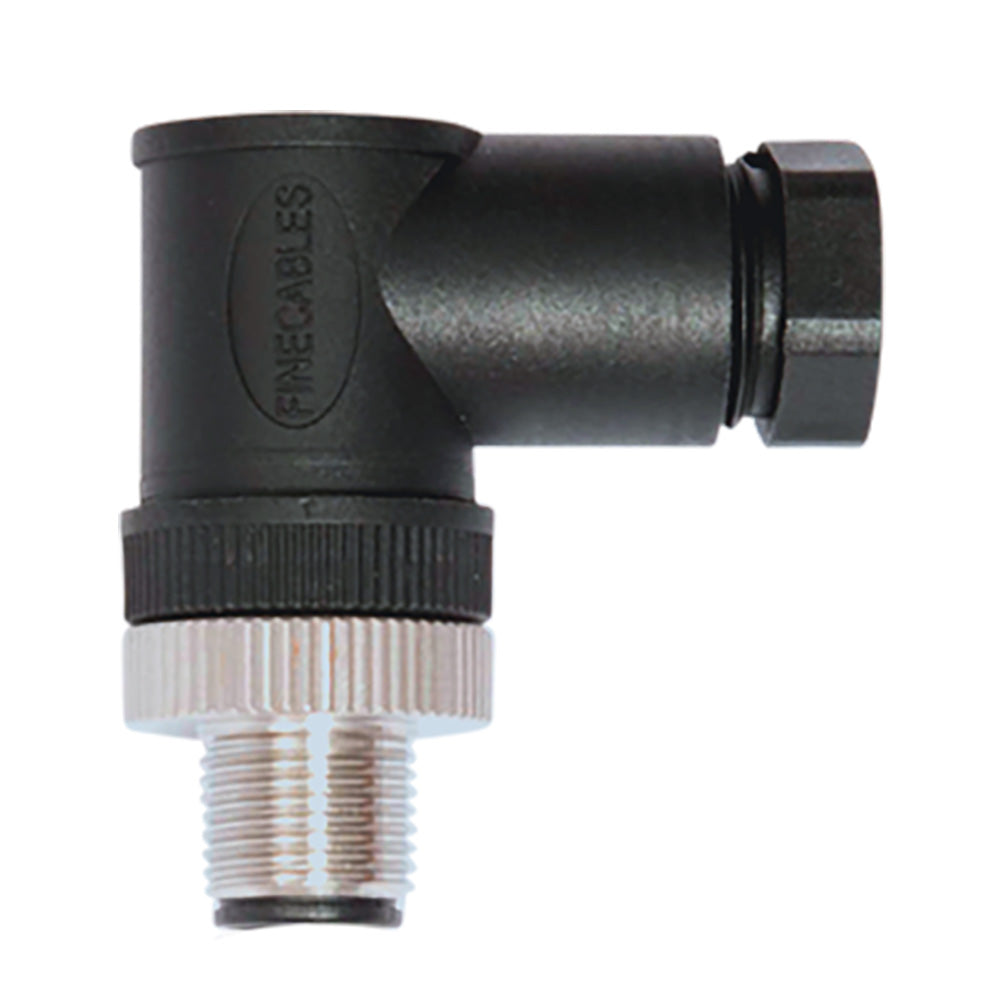

Actisense NMEA2000 Right Angle Micro Field Fit Connector - Male

Actisense

Actisense NMEA2000 Right Angle Micro Field Fit Connector Male

Item # CWR-111821
Barcode: 5060998710041

$29.99

Out of stock
  • Secure checkout Payment details are encrypted.
  • Owned and operated in the United States

Accepted payment methods

  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

A supplier holds this item and ships it. All Marine World does not keep it in a store warehouse. Shipping cost is calculated in checkout. Most in-stock orders are dispatched the next business day. That is handling time, not a delivery date. Shipping Policy.

This item is marked non-returnable for a change-of-mind return. If it arrives damaged, defective, or different from what you ordered, contact us before sending it anywhere. Returns & Refunds.

Need help choosing? You can write to us without creating an account. Include the product link or item number CWR-111821.

NMEA2000 Right Angle Micro Field Fit Connector - Male

Field-fit connectors allow full customization of your NMEA 2000 network cabling.

Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.

The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

  • Rated Current - 4A
  • Rated Voltage - 60VDC

Mechanical

  • Connector Contact - Brass, gold plated
  • Wire Gauge/Size - 22 AWG/0.34mm
  • Contact Resistance - ≤ 5 mΩ
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Connector Screw - Stainless Steel
  • Sealing Gland Size - PG9/6-8mm Cable
  • O-Ring Seal - Rubber, black
  • Connector Insert - TPU
  • Connector Body - PA+GF, black
  • Insulation Resistance - ≥ 100 MΩ
  • Weight - 22.3g

Approvals and Certifications

  • Protection - IP67 (in locked condition)
  • Ambient Temperature - -25°C to +90°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's manual: https://productimageserver.com/literature/ownersManual/111821OM.pdf

Brochure: https://productimageserver.com/literature/brochure/111821BR.pdf

Installation guide: https://productimageserver.com/literature/installations/111821IN.pdf
