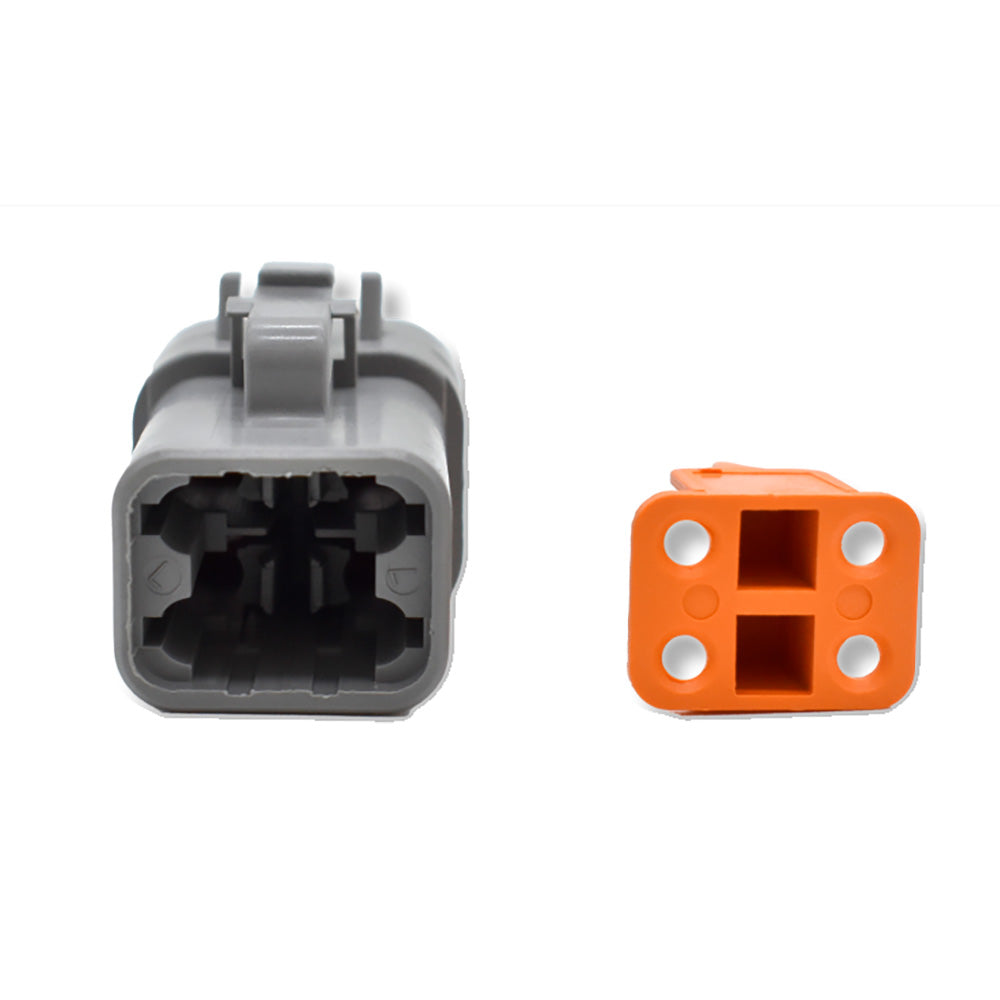

Bluewater 4 Position DTM Female Connector

4 Position DTM Female Connector

The DTMO4-4P and DTMO6-4S connectors are part of the DTM series and form a complete 4-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.

Designed for reliability in harsh environments, the DT series can deliver up to 7.5 amps continuously. This 4-pin DTM connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.

Each 4-pin DTM connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring long-lasting performance and dependable electrical connections even in demanding, harsh environments.

Features:

• Comes in bags of 100 with a separate bag of wedge locks included
• Male uses Solid DTM 16-20AWG Machined Terminal.
• Female uses DTM 16-18AWG Machined Terminal or DTM 18-20AWG Machined Terminal

Brochure: https://productimageserver.com/literature/brochure/111077BR.pdf
