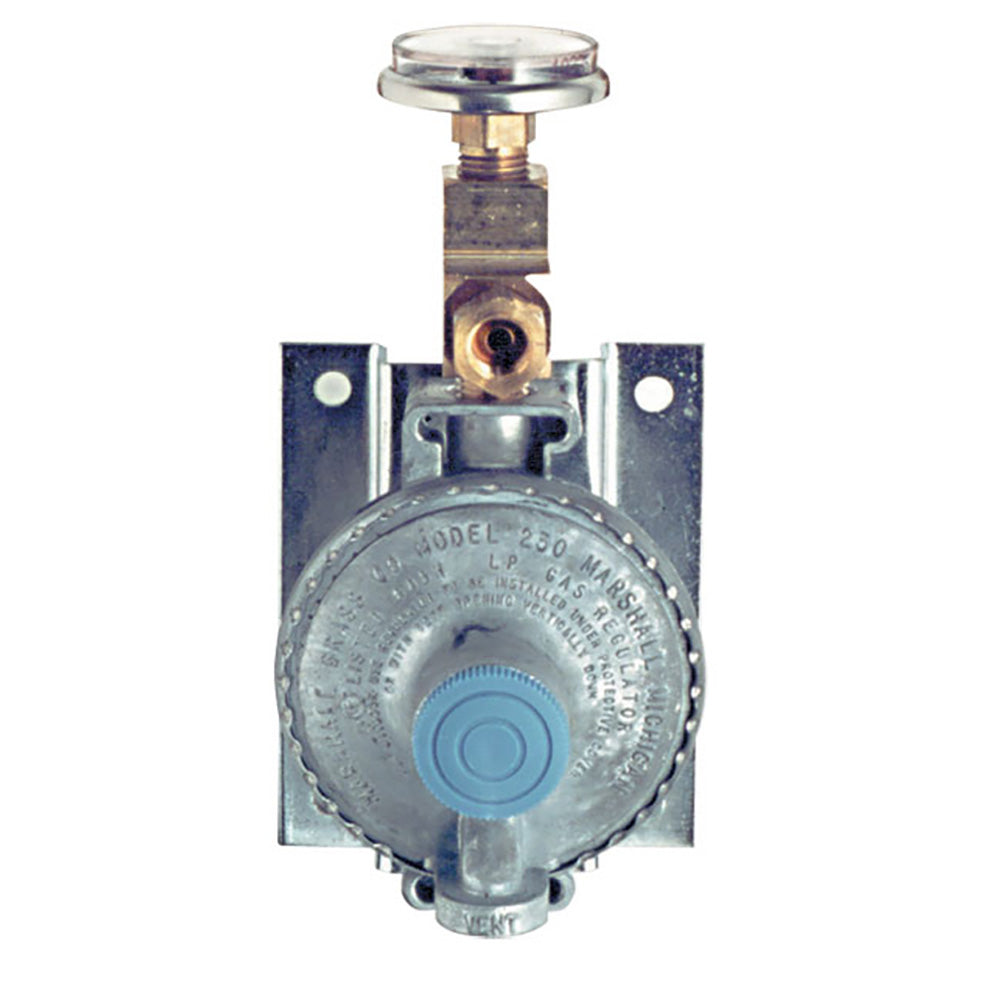

Trident Marine Single Stage Regulator w/300 PSI Pressure Gauge w/Wall Mount

Single Stage Regulator with 300 PSI Pressure Gauge with Wall Mount

UL Listed, die cast body with 3/8” FTP outlet is assembled with 300 psi leak test gauge (low profile, water tight, stainless steel), and wall mount brackets. Connect pigtail hose (item 1014-1415-20 or 1014-1401-20) to regulator inlet and one or more cylinders (one at a time). By mounting this low-pressure regulator on the wall, it saves space in the LPG locker, especially when adding a solenoid valve, manifold, gas grill connection tee, etc. 100% leak-tested – meets ABYC Marine LPG Standard.

Specifications:

• Dimensions: 6.5” H  x 3.25” W x 3.25”D
• 100,000 BTU per hour

Quick guide: https://productimageserver.com/literature/quickGuide/109837QG.pdf
