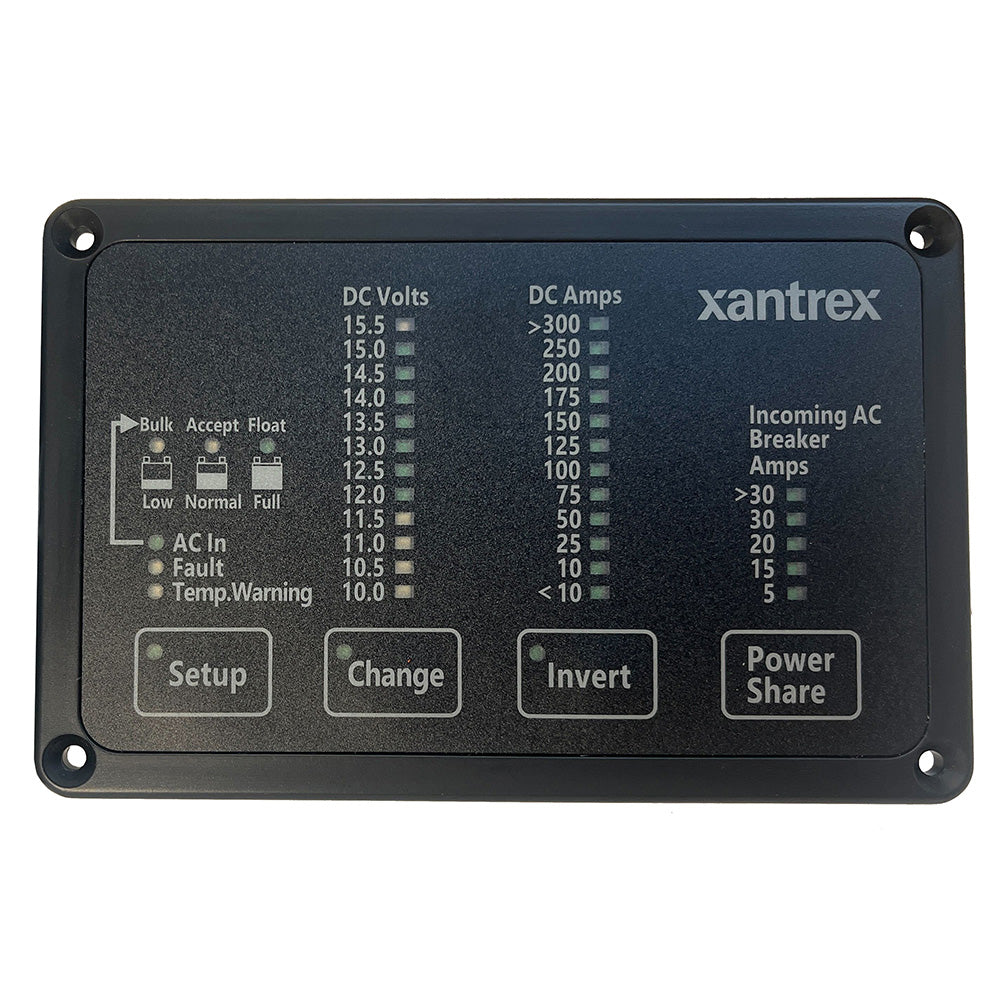

Xantrex Heart FDM-12-25 Remote Panel, Battery Status & Freedom Inverter Charger Remote Control

Heart FDM-12-25 Remote Panel, Battery Status & Freedom Inverter/Charger Remote Control

Provides Valuable Inverter/Charger System Monitoring and Control

The Freedom Remote Control Panel (part#84-2056-01) allows you to control your Freedom Combi, Freedom 458, and Freedom Marine Series Inverter/Charger system from any convenient location. It is easy to read, operate, and install, and all controls can be accessed directly from the front panel.

Note: Not for Freedom HF or Freedom SW Series.

Features:

• Independent invert and charge on/off controls
• Push button control of power sharing, equalizing, and battery set-up
• Multi-colored LED displays battery state of charge, fault conditions, AC input, DC voltage, and DC amperage
• LED warning indicators for low battery and overload warning
• Splash-resistant design
• Incoming AC breaker selection allows programmable power sharing
• Easy to install
• 25' Cable
• One-year warranty

Note: The 24-volt models of Freedom Combi inverter/chargers require a different Freedom Remote the Freedom Remote - 24V SKU 82-0101-04

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Quick guide: https://productimageserver.com/literature/quickGuide/10850QG.pdf

Owner's manual: https://productimageserver.com/literature/ownersManual/10850OM.pdf

Brochure: https://productimageserver.com/literature/brochure/10850BR.pdf
