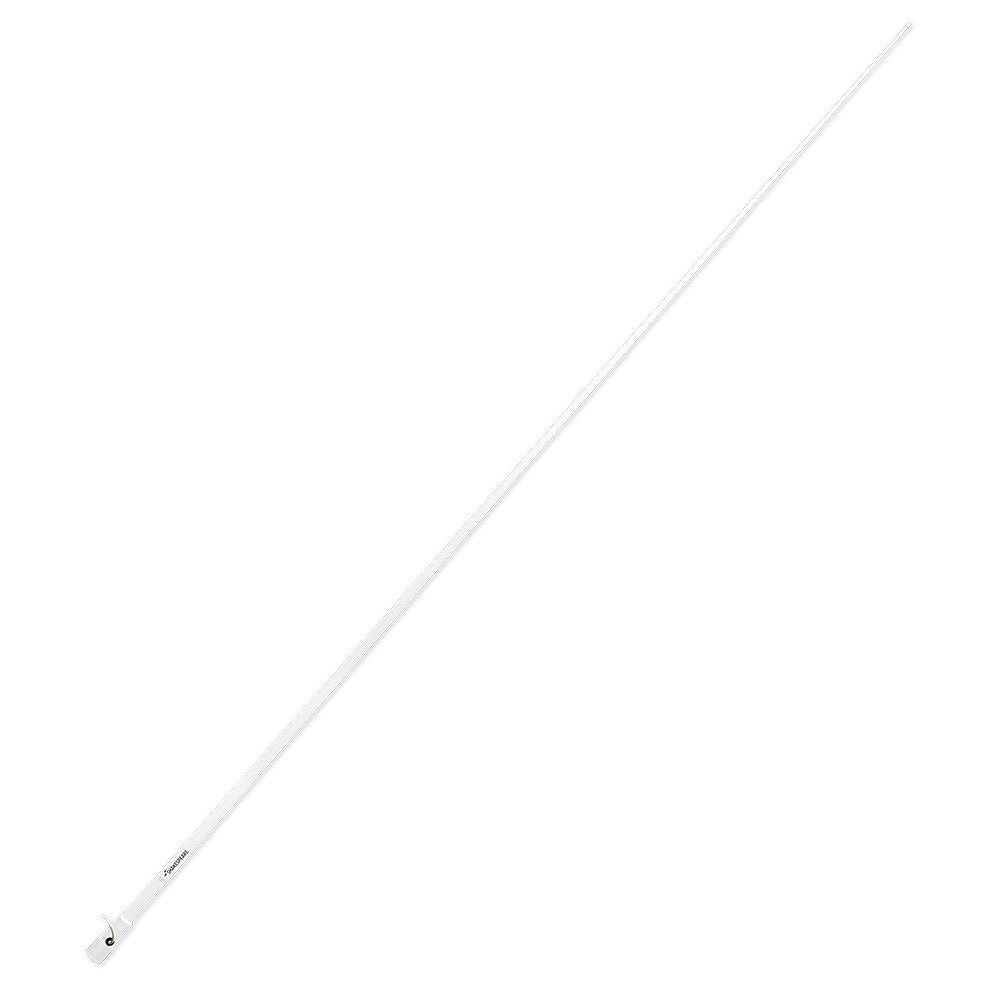

Shakespeare 5206-N 8' VHF Antenna

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

• Quality copper cable elements for good range and efficiency

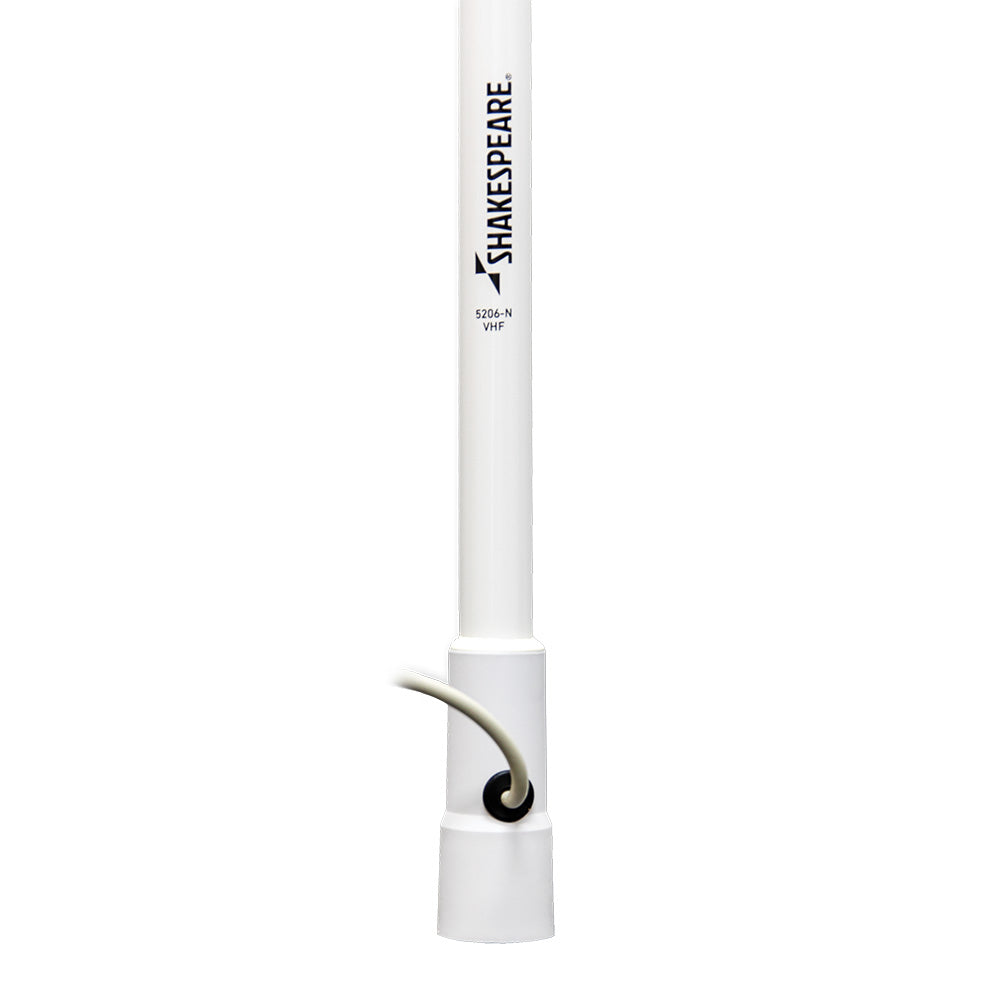

• Nylon ferrule with standard 1"-14 thread

• Includes 15' RG-58 cable and a PL-259 connector

• Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount

• Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas

• One section

• Shakespeare Limited Warranty: 2 years

Technical Specifications:


Frequency:VHF Marine bandBandwidth:3 MHzSWR:1.5:1 @156.8 MHzImpedance:(Ohms): 50Gain:6 dBMax Input (Watts):50DC Ground:NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.Termination:RG-58Height (feet):8Polarization:VerticalRadiation pattern:Omni-directional
