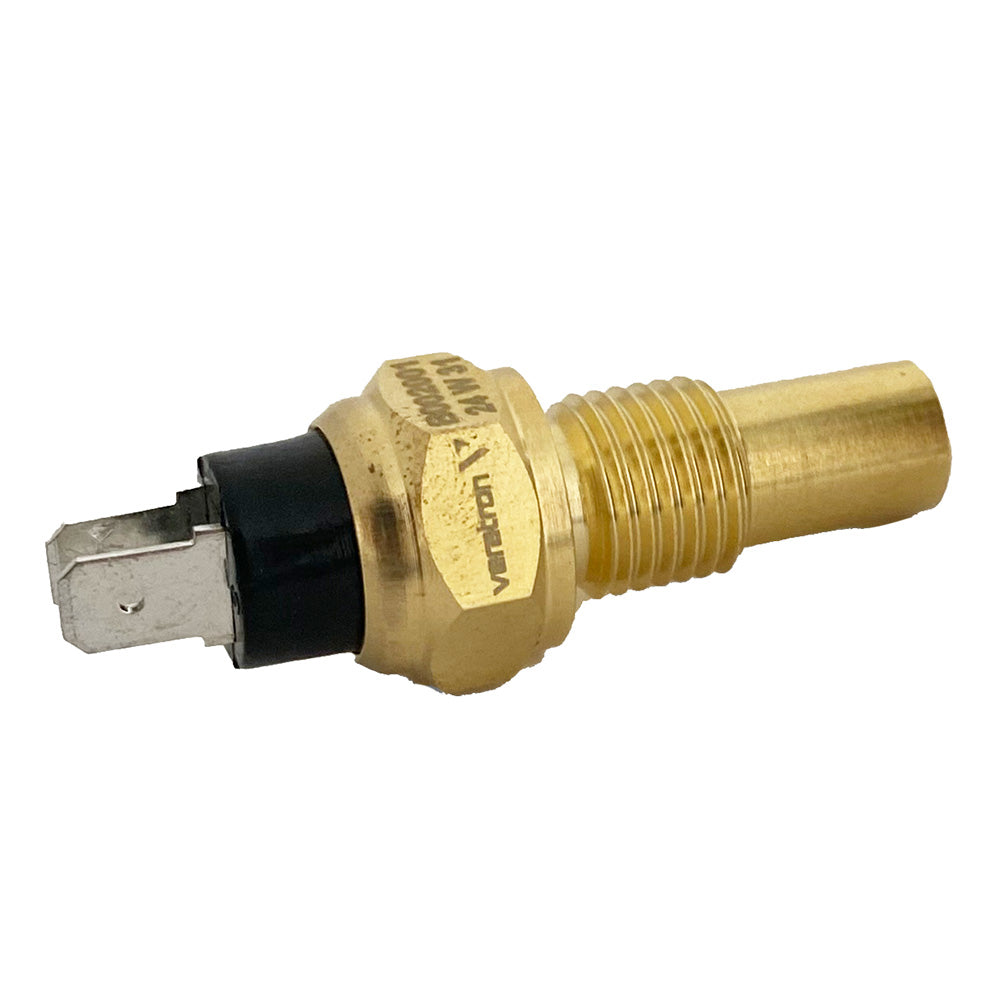

Veratron Water Temperature Sensor 1/2"-14NPT Thread 120°C Temp Range

Water Temperature Sensor - 1/2"-14NPT Thread - 120°C Temp Range

These resistive temperature sensors are built in a housing of brass.

All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors.

The sensors can be applied in a wide field of applications.

Features:

• Function - Oil temperature, coolant temperature
• Length - 28.5mm (1-1/8")
• Thread - 1/2"-14NPT
• Calibration - 120°C
• Measurement Range - 120°C
• Output Signals - Resistive
• IP67
• Insulated ground pin

Quick guide: https://productimageserver.com/literature/quickGuide/106070QG.pdf
